Turbocharger 3802085

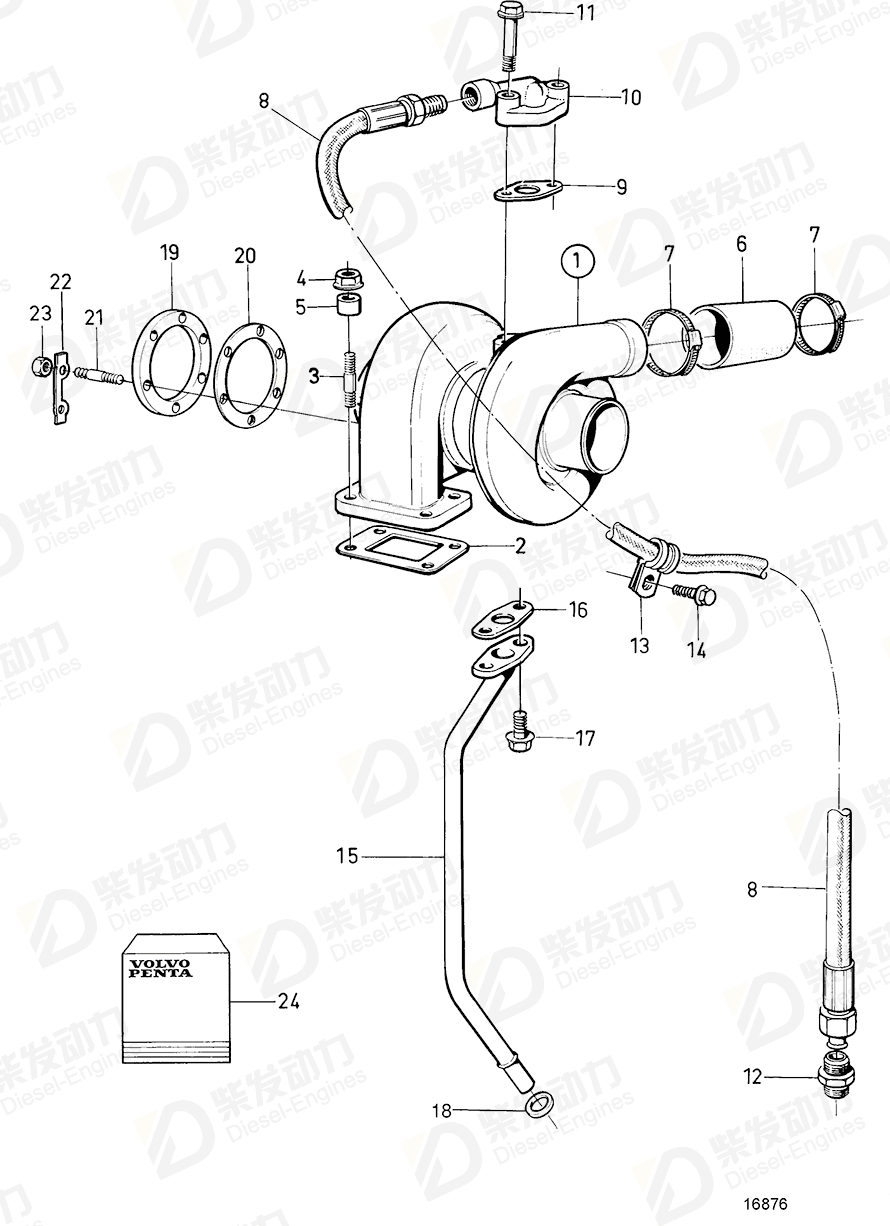

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802069 | 1 | (847860) |
| 1 | Turbocharger | 3802085 | 1 | TWD710V, (866779) |
| 2 | Gasket | 420618 | 1 | (466392) |
| 3 | Stud | 977298 | 4 | |
| 4 | Flange lock nut | 471622 | 4 | |
| 5 | Spacer sleeve | 470467 | 4 | |
| 6 | Hose | 466327 | 1 | |
| 7 | Hose clamp | 943479 | 2 | |
| 8 | Hose | 3827077 | 1 | |
| 9 | Plane gasket | 420641 | 1 | |
| 10 | Flange | 8192268 | 1 | |
| 11 | Flange screw | 947760 | 2 | M8x40mm |
| 12 | Nipple | 963948 | 1 | For DH10A and THD102KD. |
| 13 | Clamp | 949746 | 2 | |
| 14 | Flange screw | 947107 | 3 | |
| 15 | Oil return pipe | 4772082 | 1 | |
| 16 | Plane gasket | 420643 | 1 | |
| 17 | Flange screw | 945444 | 2 | |
| 18 | Rubber moulding | 471626 | 1 | |
| 19 | Flange | 844935 | 1 | |
| 20 | Gasket | 424628 | 1 | Included in gasket kit. |
| 21 | Stud | 924064 | 6 | |
| 22 | Tab washer | 947071 | 3 | TD60B PP |
| 23 | Hexagon nut | 946330 | 6 | |
| 24 | Gasket kit | 876565 | 1 |
| Item | Part Name | Part No. |
| 1 | Turbocharger 3802085 | 3802085 |
| Details | |
| Engine model | TID71A, TWD710V TWD710P |
| Application | Turbocharger Turbocharger: B |
| Specification | |
| Descriptions | SN2071062409-, (866779) TWD710V, (866779) |
