Turbocharger 3802089

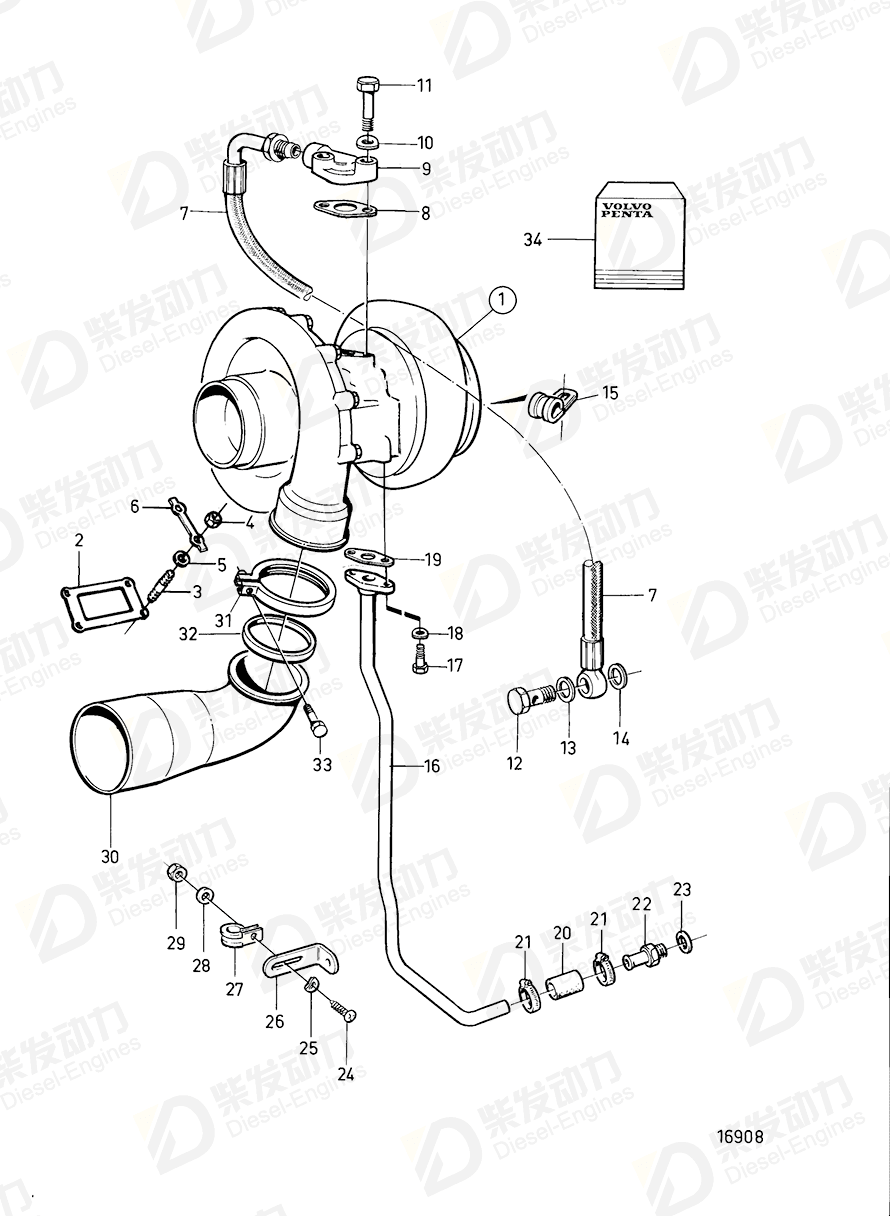

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802089 | 1 | E.U=3802089, (865966) |
| 2 | Gasket | 470939 | 1 | Included in gasket kit for connecting of turbocharger. |
| 3 | Stud | 468891 | 4 | |
| 4 | Hexagon nut | 191894 | 4 | |
| 5 | Spacer sleeve | 470467 | 4 | |
| 6 | Lock washer | 468219 | 2 | |
| 7 | Oil pressure pipe | 3826366 | 1 | |
| 8 | Plane gasket | 420641 | 1 | |
| 9 | Flange | 3826440 | 1 | |
| 10 | Spring washer | 942336 | 1 | |
| 11 | Hexagon screw | 970949 | 2 | |
| 12 | Hollow screw | 942007 | 1 | (954394) |
| 13 | Gasket | 11998 | 1 | |
| 14 | Gasket | 942703 | 1 | |
| 15 | Clamp | 952632 | 1 | Late type |
| 16 | Oil return pipe | 849652 | 1 | |
| 17 | Hexagon screw | 970947 | 2 | M10X25 |
| 18 | Spring washer | 942336 | 2 | |
| 19 | Plane gasket | 420643 | 1 | |
| 20 | Hose | 466328 | 1 | |
| 21 | Hose clamp | 994559 | 2 | |
| 22 | Nipple | 941875 | 1 | |
| 23 | Gasket, plug | 18677 | 1 | |
| 24 | Cross recessed screw | 950046 | 1 | |
| 25 | Washer | 955893 | 1 | |
| 26 | Bracket | 965560 | 1 | |
| 27 | Clamp | 952632 | 1 | Late type |
| 28 | Spring washer | 941906 | 1 | |
| 29 | Hexagon nut | 955825 | 1 | Late type |
| 30 | Connecting pipe | 865121 | 1 | |
| 31 | V-clamp | 1542778 | 1 | |
| 32 | Sealing ring | 1542781 | 1 | |
| 33 | Hexagon screw | 949335 | 1 | |
| 34 | Gasket kit | 876352 | 1 | See group 99 |
| Item | Part Name | Part No. |
| 1 | Turbocharger 3802089 | 3802089 |
| Details | |
| Engine model | TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V |
| Application | Turbocharger Turbocharger, Components |
| Specification | |
| Descriptions | (865966) E.u, (865966) E.U=3802089, (865966) |
