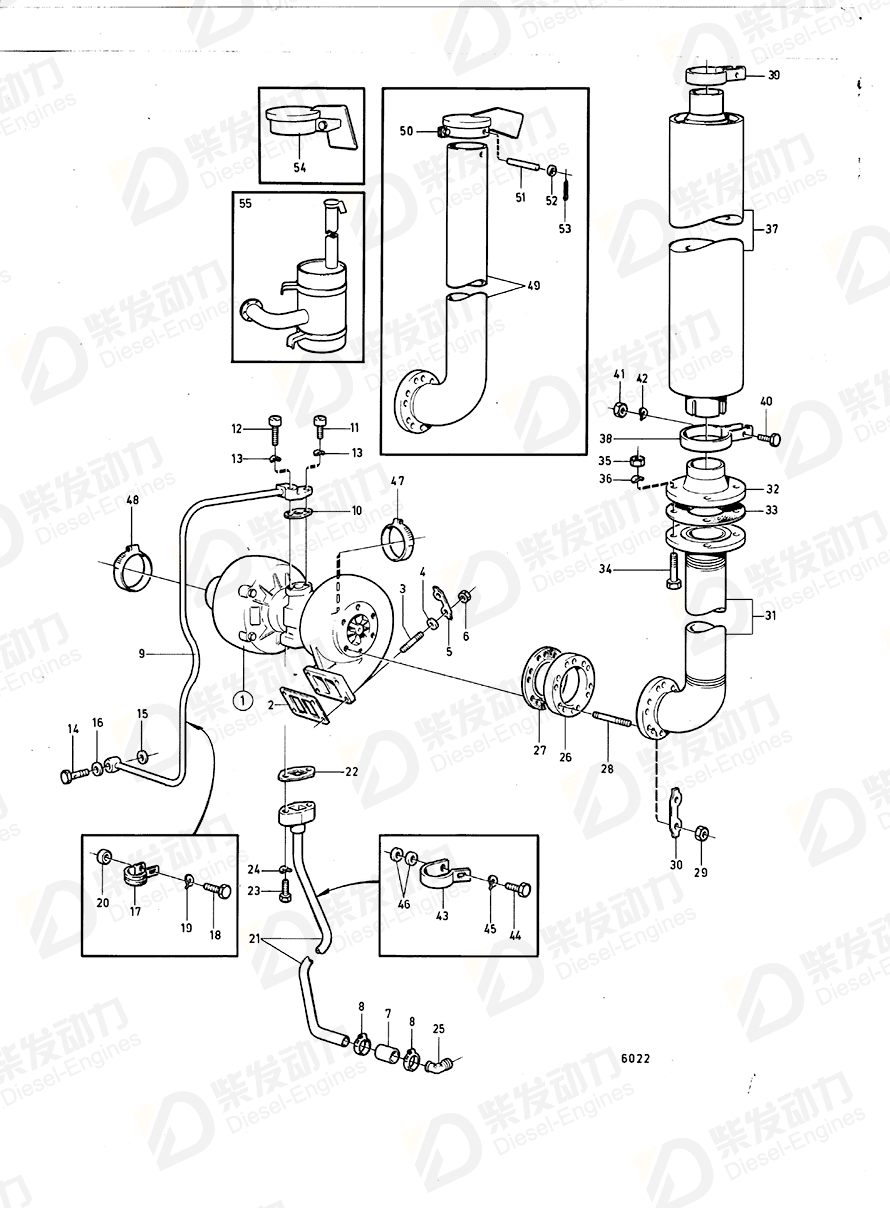

Turbocharger 843509
| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 843509 | 1 | |
| 2 | Gasket | 466392 | 1 | Gasket kit,turbo 875663., Gasket kit,turbo 875681. |
| 3 | Stud | 953259 | 4 | |
| 4 | Washer | 940097 | 4 | |
| 5 | Tab washer | 942167 | 2 | |
| 6 | Nut | 943152 | 4 | |
| 7 | Hose | 192358 | 1 | L=170mm MOXXXXX/31956 |
| 8 | Hose clamp | 994559 | 2 | |
| 9 | Oil feed pipe | 465272 | 1 | |
| 10 | Gasket | 466393 | 1 | Gasket kit,turbo 875663., Gasket kit,turbo 875681. |
| 11 | Hexagon screw | 955525 | 1 | |
| 12 | Hexagon screw | 940159 | 1 | |
| 13 | Spring washer | 941907 | 2 | |
| 14 | Hollow screw | 954394 | 1 | |
| 15 | Gasket | 18671 | 1 | |
| 16 | Gasket | 11998 | 1 | |
| 17 | Clamp | 952625 | 1 | |
| 18 | Hexagon screw | 955513 | 1 | |
| 19 | Spring washer | 941906 | 1 | |
| 20 | Spacer washer | 944563 | 1 | |
| 21 | Oil return pipe | 4773841 | 1 | |
| 22 | Gasket | 466394 | 1 | Gasket kit,turbo 875663., Gasket kit,turbo 875681. |
| 23 | Hexagon screw | 940115 | 2 | |
| 24 | Spring washer | 942336 | 2 | |
| 25 | Elbow nipple | 468629 | 1 | TAMD70C,AQD70C. |
| 26 | Flange | 837453 | 1 | |
| 27 | Gasket | 420429 | 1 | |
| 28 | Stud | 953237 | 6 | |
| 29 | Hexagon nut | 940122 | 6 | |
| 30 | Tab washer | 943705 | 3 | |
| 31 | Exhaust hose, exhaust hose | 843612 | 1 | (823692) |
| 32 | Flange | 821424 | 1 | Spec. 867476, 867637, 867647. |
| 33 | Gasket | 802597 | 1 | Spec. 867476, 867637, 867647. |
| 34 | Hexagon screw | 955346 | 4 | D100B PP, TD100A PP |
| 35 | Hexagon nut | 955784 | 4 | |
| 36 | Spring washer | 940280 | 4 | |
| 37 | Silencer | 328206 | 1 | Suction type |
| 38 | Clamp | 966860 | 1 | |
| 39 | Clamp | 32446 | 1 | Suction type |
| 40 | Hexagon screw | 955535 | 2 | |
| 41 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 42 | Spring washer | 942336 | 2 | |
| 43 | Clamp | 190159 | 1 | |
| 44 | Hexagon screw | 940115 | 1 | |
| 45 | Spring washer | 942336 | 1 | |
| 46 | Washer | 961161 | 2 | |
| 47 | Hose clamp | 943479 | 1 | |
| 48 | Hose clamp | 943481 | 1 | (951798) |
| Item | Part Name | Part No. |
| 1 | Turbocharger 843509 | 843509 |
| Details | |
| Engine model | TD60A TD60B TID60D |
| Application | TURBO Turbo and Installation Components, Low Mounted Turbo and Installation Components: A Turbo and Installation Components: B |
