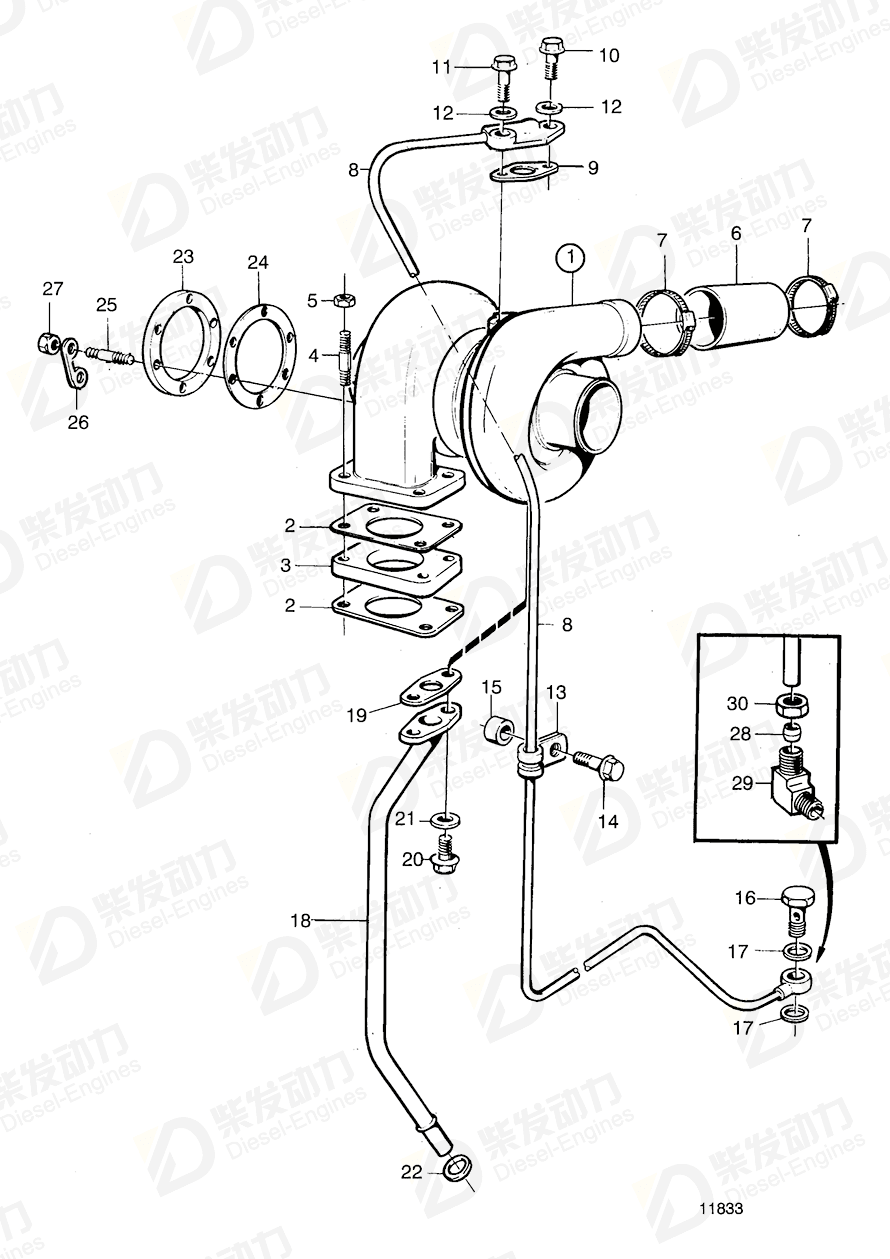

Turbocharger 848558
| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 848558 | 1 | Also available as an exchange part. |
| 1 | Turbocharger | 3802048 | 1 | (848558) |
| 2 | Gasket | 420618 | 2 | (466392) |
| 3 | Spacer | 847384 | 1 | |
| 4 | Stud | 977298 | 4 | |
| 5 | Flange lock nut | 471622 | 4 | |
| 6 | Hose | 847385 | 1 | |
| 7 | Hose clamp | 943479 | 2 | |
| 8 | Oil pressure pipe | 3825897 | 1 | |
| 9 | Plane gasket | 420641 | 1 | |
| 10 | Flange screw | 945444 | 1 | |
| 11 | Flange screw | 946671 | 1 | |
| 12 | Spring washer | 941907 | 2 | |
| 13 | Clamp | 949746 | 1 | |
| 14 | Flange screw | 947107 | 1 | |
| 15 | Spacer sleeve | 843075 | 1 | |
| 16 | Hollow screw | 941686 | 1 | |
| 17 | Gasket | 11996 | 2 | |
| 18 | Oil return pipe | 862044 | 1 | (847880) |
| 19 | Plane gasket | 420643 | 1 | |
| 20 | Hexagon screw | 955297 | 2 | |
| 21 | Spring washer | 941907 | 2 | |
| 22 | Rubber moulding | 471626 | 1 | |
| 23 | Flange | 844809 | 1 | |
| 24 | Gasket | 847583 | 1 | (6854724) |
| 25 | Stud | 924064 | 4 | |
| 26 | Tab washer | 949134 | 2 | |
| 27 | Hexagon nut | 946330 | 4 | |
| 28 | Ferrule | 1677898 | 1 | For 849256 |
| 29 | Elbow nipple | 941757 | 1 | For 847879 |
| 30 | Fitting nut | 956984 | 1 |
| Item | Part Name | Part No. |
| 1 | Turbocharger 848558 | 848558 |
| Details | |
| Engine model | TD61AG TID61AG |
| Application | Turbocharger Turbocharger and Installation Components |
| Specification | |
| Descriptions | Also available as an exchange part. |
