Turbocharger 864493

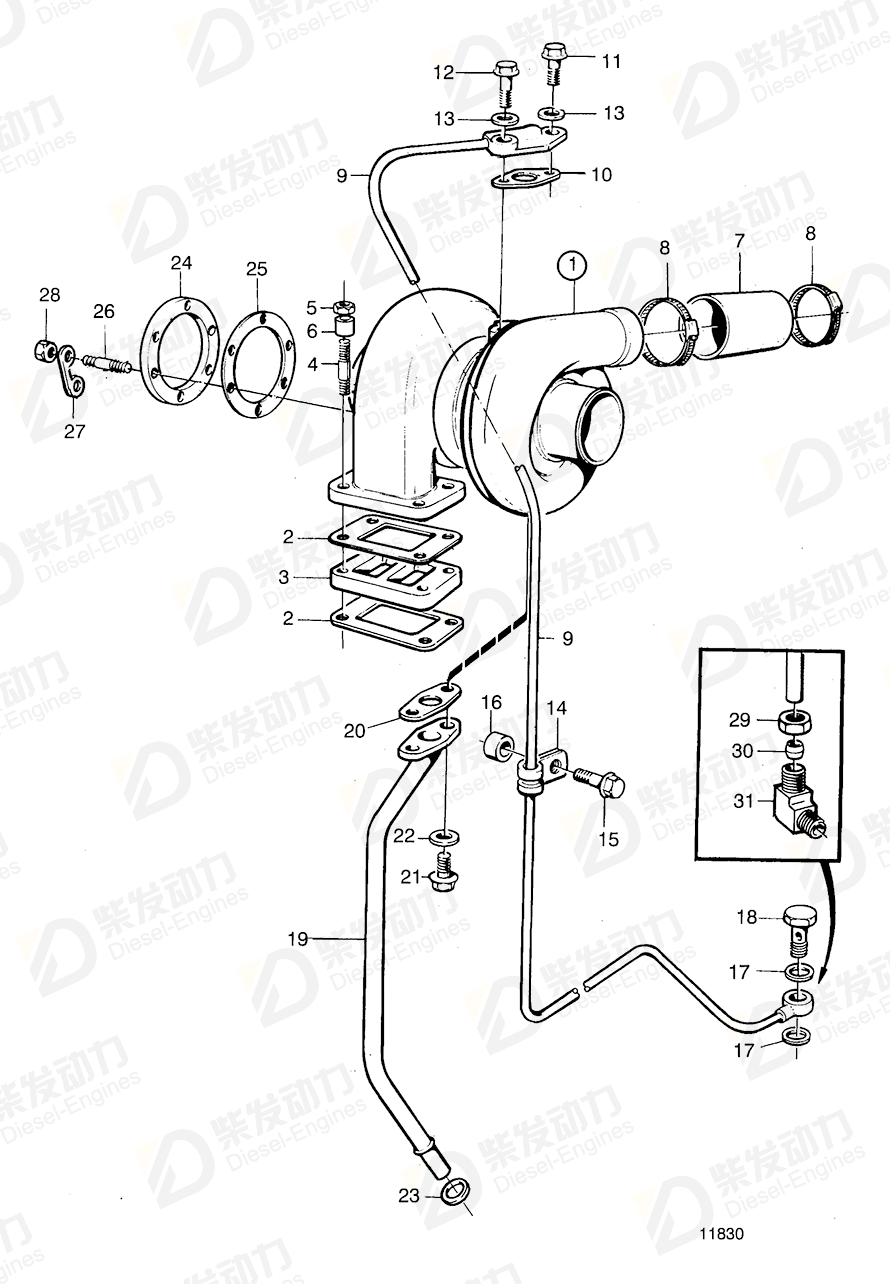

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Turbocharger |
847857 |
1 |
Repl by 848556 |
| 1 |
Turbocharger |
848556 |
1 |
SN-XXXXXXXXXX/60026 |
| 1 |
Turbocharger |
864493 |
1 |
SN XXXXXXXXXX/60027- |
| 1 |
Turbocharger |
3802049 |
1 |
SN-XXXXXXXXXX/60026 |
| 2 |
Gasket |
420618 |
2 |
(466392) |
| 3 |
Spacer |
847384 |
1 |
|
| 4 |
Stud |
977298 |
4 |
|
| 5 |
Flange lock nut |
471622 |
4 |
|
| 6 |
Spacer sleeve |
470467 |
4 |
|
| 7 |
Hose |
847385 |
1 |
|
| 8 |
Hose clamp |
943479 |
2 |
|
| 9 |
Oil pressure pipe |
3825896 |
1 |
SN2061106099- |
| 10 |
Plane gasket |
420641 |
1 |
|
| 11 |
Flange screw |
945444 |
1 |
|
| 12 |
Flange screw |
946671 |
1 |
|
| 13 |
Spring washer |
941907 |
2 |
|
| 14 |
Clamp |
949746 |
1 |
|
| 15 |
Flange screw |
947107 |
1 |
|
| 16 |
Spacer sleeve |
843075 |
1 |
|
| 17 |
Gasket |
11996 |
2 |
|
| 18 |
Hollow screw |
941686 |
1 |
|
| 19 |
Oil return pipe |
862044 |
1 |
(847880) |
| 20 |
Plane gasket |
420643 |
1 |
|
| 21 |
Hexagon screw |
955297 |
2 |
|
| 22 |
Spring washer |
941907 |
2 |
|
| 23 |
Rubber moulding |
471626 |
1 |
|
| 24 |
Flange |
844809 |
1 |
|
| 24 |
Flange |
844935 |
1 |
|
| 25 |
Gasket |
424628 |
1 |
Included in gasket kit. |
| 25 |
Gasket |
847583 |
1 |
(6854724) |
| 26 |
Stud |
924064 |
4 |
|
| 27 |
Tab washer |
949134 |
2 |
|
| 28 |
Hexagon nut |
946330 |
4 |
|
| 29 |
Fitting nut |
956984 |
1 |
|
| 30 |
Ferrule |
1677898 |
1 |
For 849256 |
| 31 |
Elbow nipple |
941757 |
1 |
For 847879 |
| Item |
Part Name |
Part No. |
| 1 |
Turbocharger 864493 |
864493 |
| Details |
| Engine model |
TD61ACE |
| Application |
Turbocharger and Installation Components: B |
| Specification |
| Descriptions |
SN XXXXXXXXXX/60027- |
