Turbocharger, exch 3801470

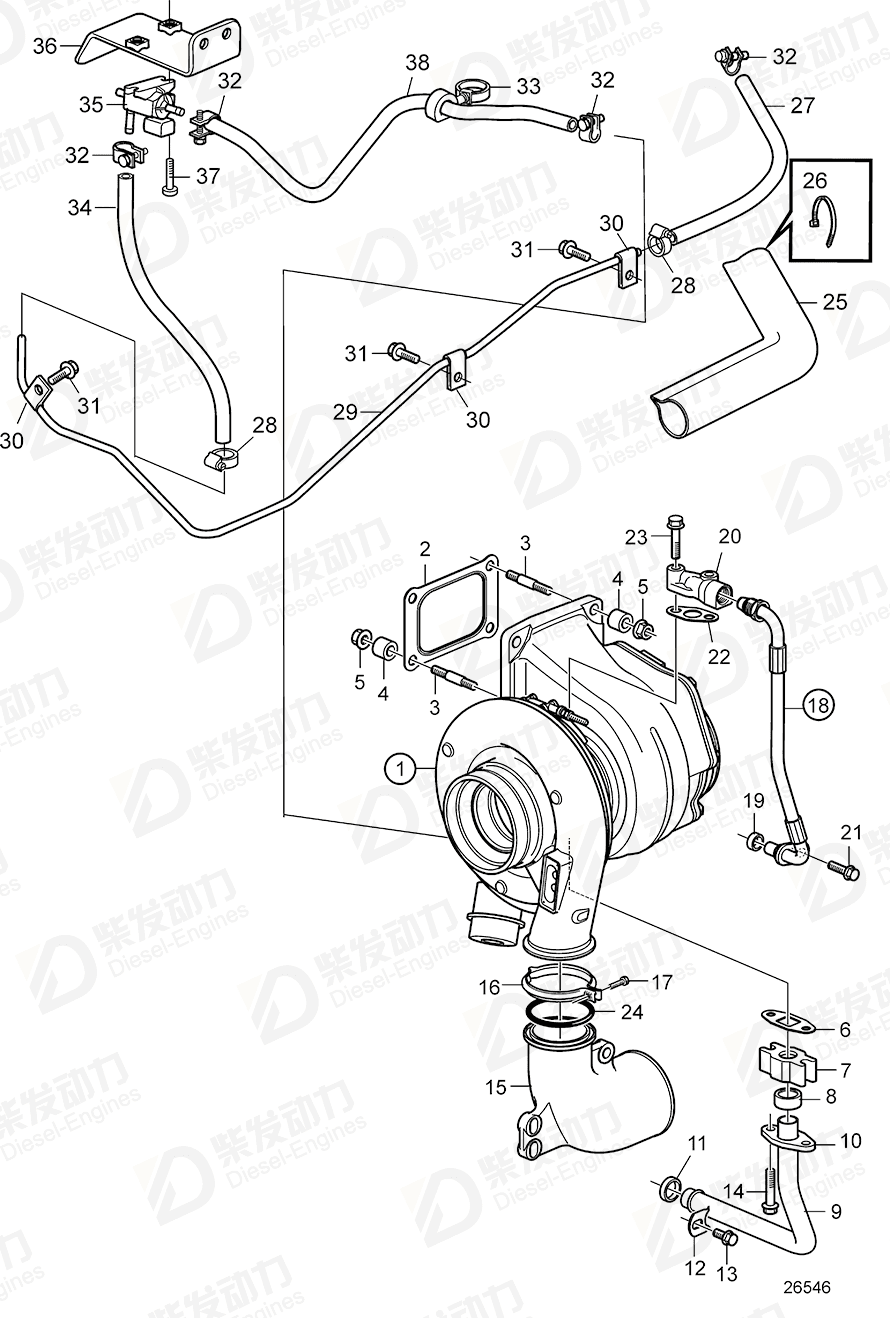

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger, exch | 3801235 | 1 | SN-2013320165 |
| 1 | Turbocharger, exch | 3801470 | 1 | SN2013320166- |
| 2 | Plane gasket | 20784537 | 1 | |
| 3 | Stud | 20579303 | 4 | (977299) |
| 4 | Spacer sleeve | 20573472 | 4 | |
| 5 | Flange lock nut | 471622 | 4 | |
| 6 | Plane gasket | 20707685 | 1 | |
| 7 | Connector | 8148729 | 1 | |
| 8 | Rubber moulding | 469601 | 1 | |
| 9 | Oil return pipe | 3886333 | 1 | |
| 10 | Pipe flange | 469543 | 1 | |
| 11 | Sealing ring | 1547255 | 1 | |
| 12 | Lock brace | 20844430 | 1 | |
| 13 | Flange screw | 984733 | 1 | |
| 14 | Flange screw | 984738 | 2 | |
| 15 | Connecting pipe | 11030375 | 1 | |
| 16 | V-clamp | 1542778 | 1 | |
| 17 | Flange screw | 965212 | 1 | |
| 18 | Oil pressure pipe | 3886331 | 1 | |
| 19 | Sealing ring | 1636309 | 1 | |
| 20 | Flange | 8192268 | 1 | |
| 21 | Flange screw | 949853 | 1 | |
| 22 | Gasket | 22206133 | 1 | |
| 23 | Flange screw | 984737 | 2 | |
| 24 | Sealing ring | 1542781 | 1 | |
| 25 | Tube | 20711293 | 1 | |
| 26 | Cable tie | 862832 | 1 | |
| 27 | Hose | 21109863 | 1 | |
| 28 | Hose clamp | 961662 | 2 | |
| 29 | Pipe | 21154124 | 1 | |
| 30 | Clamp | 942400 | 3 | |
| 31 | Flange screw | 984733 | 3 | |
| 32 | Hose clamp | 975269 | 4 | |
| 33 | Retainer | 21045811 | 1 | |
| 34 | Hose | 21109863 | 1 | |
| 35 | Solenoid valve | 3819161 | 1 | |
| 37 | Six point socket scr | 969407 | 2 | |
| 38 | Fuel hose | 1266870 | 1 |
| Item | Part Name | Part No. |
| 1 | Turbocharger, exch 3801470 | 3801470 |
| Details | |
| Engine model | TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE TAD1350VE |
| Application | Turbocharger |
| Specification | |
| Descriptions | SN2013320166- |
