Turbocharger, exch 3801532

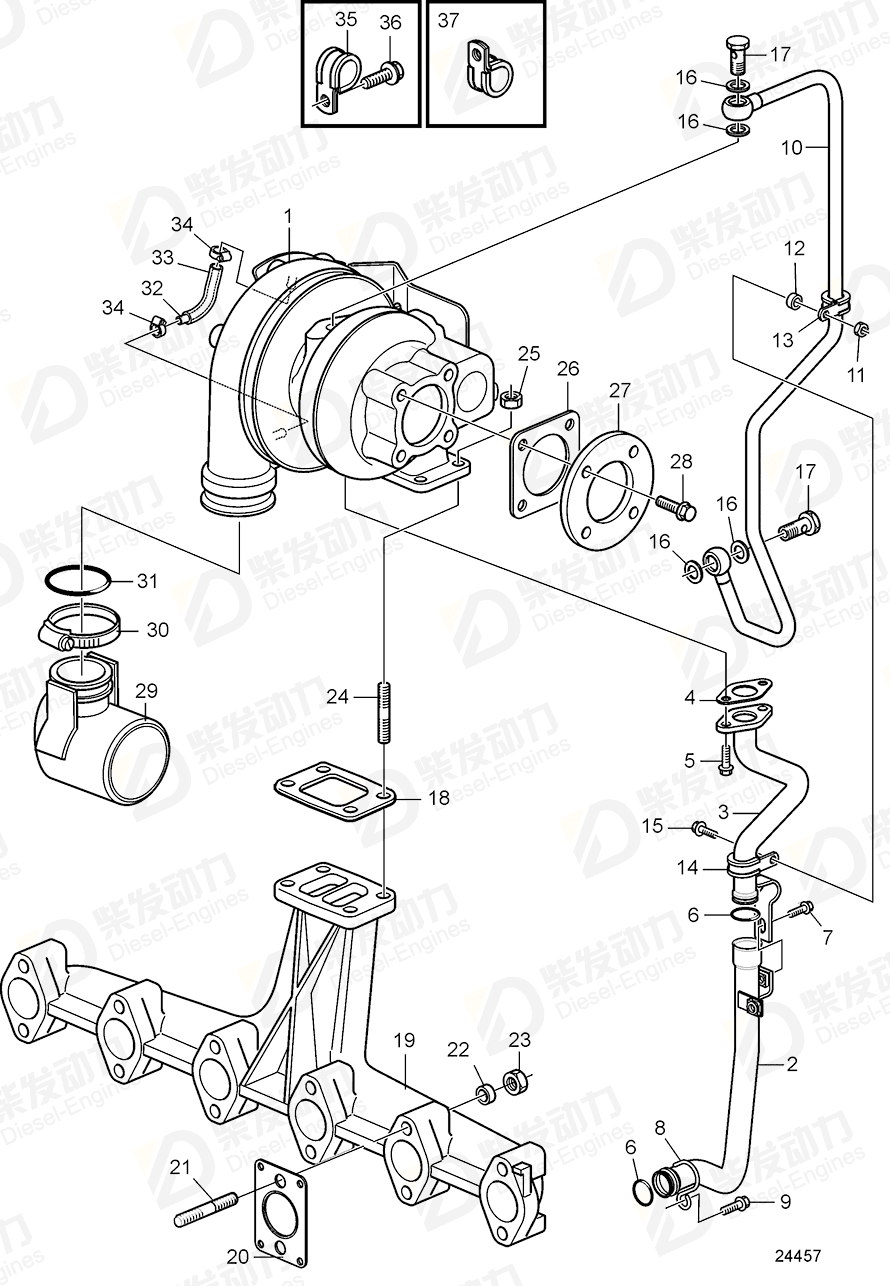

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger, exch | 3801105 | 1 | With wastegate. |
| 1 | Turbocharger, exch | 3801532 | 1 | With wastegate. |
| 2 | Oil return pipe | 20971701 | 1 | |
| 3 | Oil return pipe | 20971683 | 1 | |
| 4 | Plane gasket | 20405790 | 1 | |
| 5 | Flange screw | 984734 | 2 | |
| 6 | O-ring | 20405822 | 2 | |
| 7 | Flange screw | 20405898 | 1 | |
| 8 | Retainer | 20405789 | 1 | |
| 9 | Flange screw | 20405792 | 1 | |
| 10 | Oil return pipe | 20971707 | 1 | |
| 11 | Flange nut | 990940 | 1 | |
| 12 | Bushing | 20450730 | 1 | |
| 13 | Clamp | 20450987 | 1 | |
| 14 | Clamp | 20405532 | 1 | |
| 15 | Flange screw | 984736 | 4 | |
| 16 | Sealing ring | 21022795 | 4 | |
| 17 | Hollow screw | 25167 | 2 | |
| 18 | Gasket | 20559835 | 1 | |
| 19 | Exhaust pipe | 20712736 | 1 | |
| 20 | Gasket | 20557208 | 6 | |
| 21 | Stud | 20575919 | 12 | |
| 22 | Spacer sleeve | 20847865 | 12 | |
| 23 | Nut retainer | 20505959 | 12 | (20405593) |
| 24 | Stud | 20799733 | 4 | |
| 25 | Hexagon nut | 20412308 | 4 | |
| 26 | Gasket | 20792408 | 1 | |
| 27 | Flange | 21034013 | 1 | |
| 28 | Screw | 20801195 | 4 | |
| 32 | Hose | 20959595 | 1 | L=430mm |
| 32 | Hose | 21109244 | 1 | L=113mm, For 3801261 |
| 33 | Protecting hose, protection hose | 20914531 | 1 | |
| 34 | Hose clamp | 20405568 | 2 | |
| 35 | Clamp | 20916686 | 1 | |
| 36 | Flange screw | 20405792 | 1 | |
| 37 | Clamp | 20916692 | 1 |
| Item | Part Name | Part No. |
| 1 | Turbocharger, exch 3801532 | 3801532 |
| Details | |
| Engine model | TAD750VE, TAD760VE |
| Application | Exhaust Manifold and Turbocharger. High Mounted Turbo -SN10520359 Exhaust Manifold and Turbocharger. High Mounted Turbo SN10520360- Exhaust Manifold and Turbocharger. High Mounted Turbo. Exhaust Outlet Front |
| Specification | |
| Descriptions | With wastegate. |
