Turbocharger, exch 3801559

Turbocharger, exch 3801559

0 reviews Write a review
  • Brandsvolvo penta
  • Part No.: 3801559
  • Availability: 联系我们
No. Part Name Part Number Qty Description
1 Turbocharger, exch 3801559 1
2 Gasket 20781146 1
3 Stud 21345127 4
4 Spacer sleeve 478344 4
5 Flange nut 1543499 4
6 Exhaust manifold 22003119 1 For low-mounted turbo.
7 Hose 17246188 1
8 Gasket 22206133 1
9 Flange screw 984737 2
10 Plane gasket 20707685 1
11 Oil return pipe 17325266 1
12 Flange screw 984734 4
13 Hose clamp 975269 2
14 Pipe set 22394149 1
15 Solenoid valve 3819161 1
16 Flange screw 996061 2
17 Heat shield 22208630 1
18 Exhaust pipe 22126840 1 L=620mm
19 Plug 479979 1
20 V-clamp 21211715 1
21 Flange screw 994441 1
22 Flange lock nut 990950 1
23 Bracket 22077545 1
24 Flange screw 984735 2
25 Bracket 17322026 1
26 Sensor 22219276 1
27 Bracket 22394160 1
28 Flange screw 984730 2
29 Spacer sleeve 847239 2
30 Flange screw 984737 2
31 Flange screw 984733 2
32 Flange screw 984735 1
33 Cable tie 948211 1
33 Cable tie 980881 1
34 Cable tie 22240159 5
35 Flange screw 994374 1
36 V-clamp 1542778 1
37 Sealing ring 1542781 1
38 Charge air pipe 3819414 1
39 Connecting pipe 11030375 1
40 Bracket 21913665 1
41 Pipe set 21967216 1
42 Clamp 942400 2
43 Hose clamp 975269 2
44 Flange screw 984733 2
45 Flange screw 990861 2
46 Sealing ring 21940615 1
Item Part Name Part No.
1 Turbocharger, exch 3801559 3801559

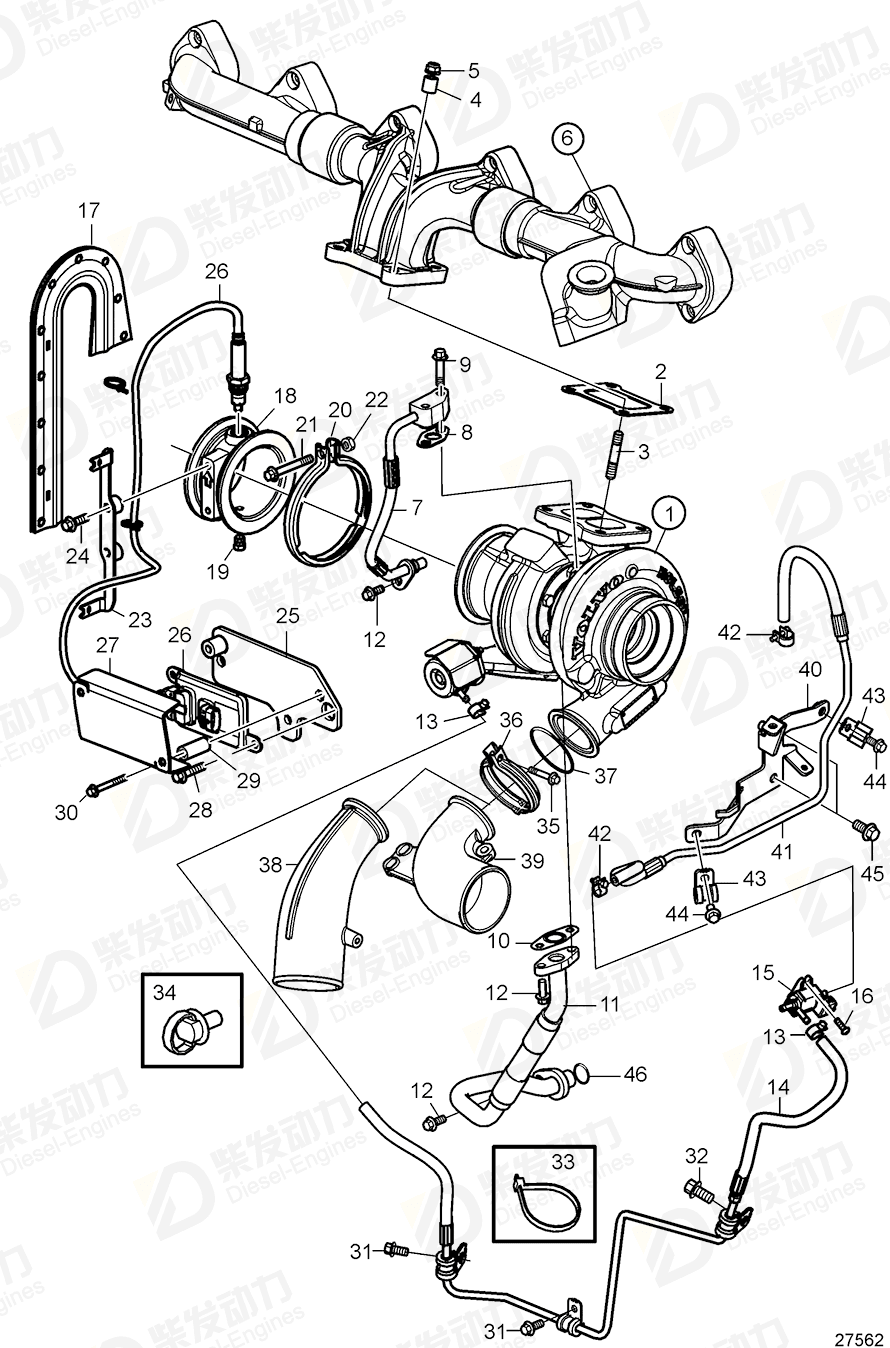

volvo penta Turbocharger, exch 3801559 Drawing
Details
Engine model TAD1140VE, TAD1141VE, TAD1142VE
TAD1150VE, TAD1151VE, TAD1152VE
TAD1170VE, TAD1171VE, TAD1172VE
Application Turbocharger, Low Mounted
