Turbocharger, exch 3801560

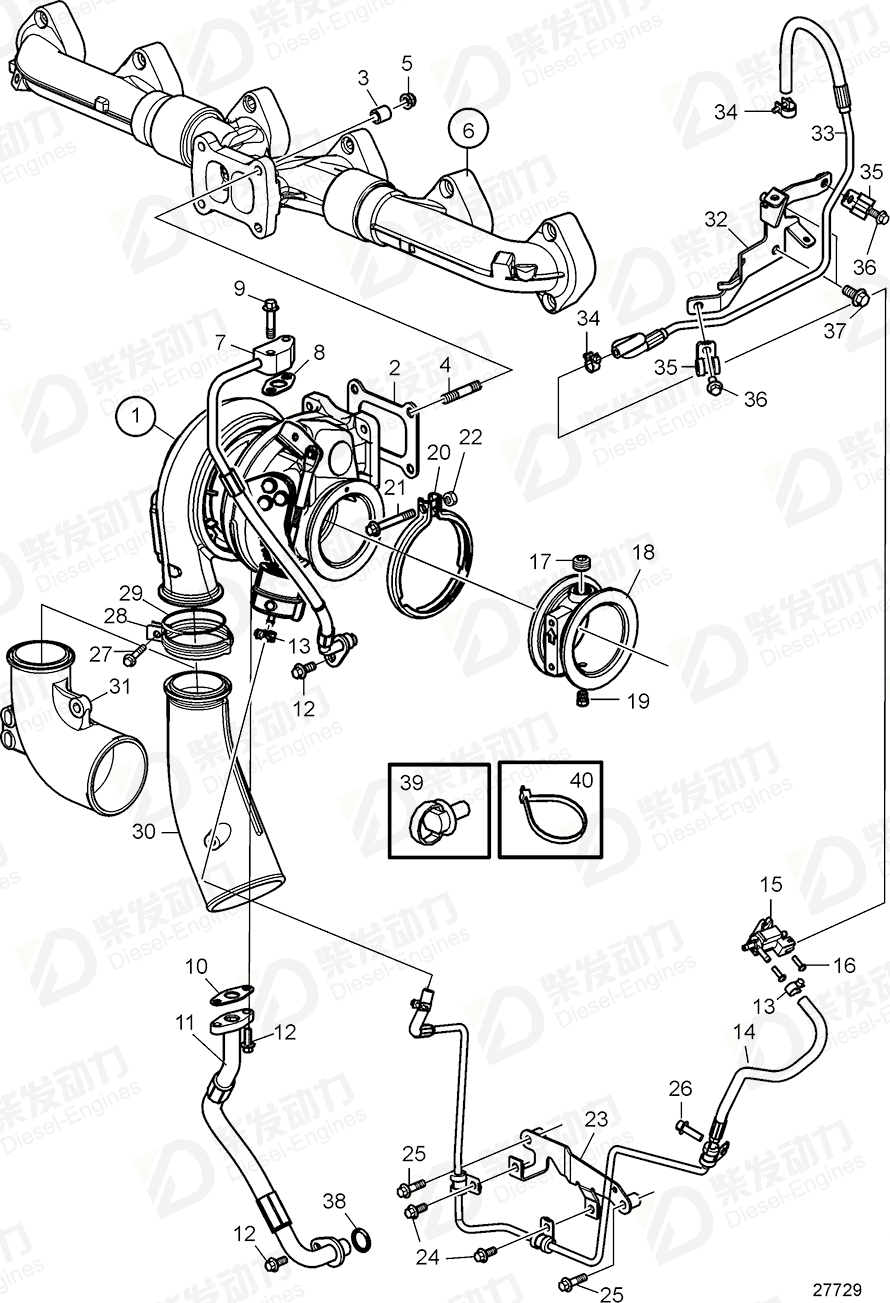

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger, exch | 3801560 | 1 | |
| 2 | Gasket | 20781146 | 1 | |
| 3 | Spacer sleeve | 478344 | 4 | |
| 4 | Stud | 21345127 | 4 | |
| 5 | Flange nut | 1543499 | 4 | |
| 6 | Exhaust manifold | 22281111 | 1 | For high-mounted turbo |
| 7 | Pressure hose | 21867994 | 1 | |
| 8 | Gasket | 22206133 | 1 | |
| 9 | Flange screw | 984737 | 2 | |
| 10 | Plane gasket | 20707685 | 1 | |
| 11 | Oil return pipe | 21831612 | 1 | |
| 12 | Flange screw | 984734 | 4 | |
| 13 | Hose clamp | 975269 | 2 | |
| 14 | Pipe set | 22394149 | 1 | |
| 15 | Solenoid valve | 3819161 | 1 | |
| 16 | Flange screw | 996061 | 2 | |
| 17 | Plug | 981193 | 1 | |
| 18 | Exhaust pipe | 22126840 | 1 | L=620mm |
| 19 | Plug | 479979 | 1 | |
| 20 | V-clamp | 21211715 | 1 | |
| 21 | Flange screw | 994441 | 1 | |
| 22 | Flange lock nut | 990950 | 1 | |
| 23 | Bracket | 22442798 | 1 | |
| 24 | Flange screw | 984736 | 2 | |
| 25 | Flange screw | 984733 | 2 | |
| 26 | Flange screw | 984735 | 1 | |
| 27 | Flange screw | 994374 | 1 | |
| 28 | V-clamp | 1542778 | 1 | |
| 29 | Sealing ring | 1542781 | 1 | |
| 30 | Charge air pipe | 3819414 | 1 | |
| 31 | Connecting pipe | 11030375 | 1 | |
| 32 | Bracket | 21913665 | 1 | |
| 33 | Pipe set | 21967216 | 1 | |
| 34 | Clamp | 942400 | 2 | |
| 35 | Hose clamp | 975269 | 2 | |
| 36 | Flange screw | 984733 | 2 | |
| 37 | Flange screw | 990861 | 2 | |
| 38 | Sealing ring | 21940615 | 1 | |
| 39 | Cable tie | 22240159 | 1 | |
| 40 | Cable tie | 948211 | 1 |
| Item | Part Name | Part No. |
| 1 | Turbocharger, exch 3801560 | 3801560 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE |
| Application | Turbocharger, High Mounted |
