V-belt 21087705

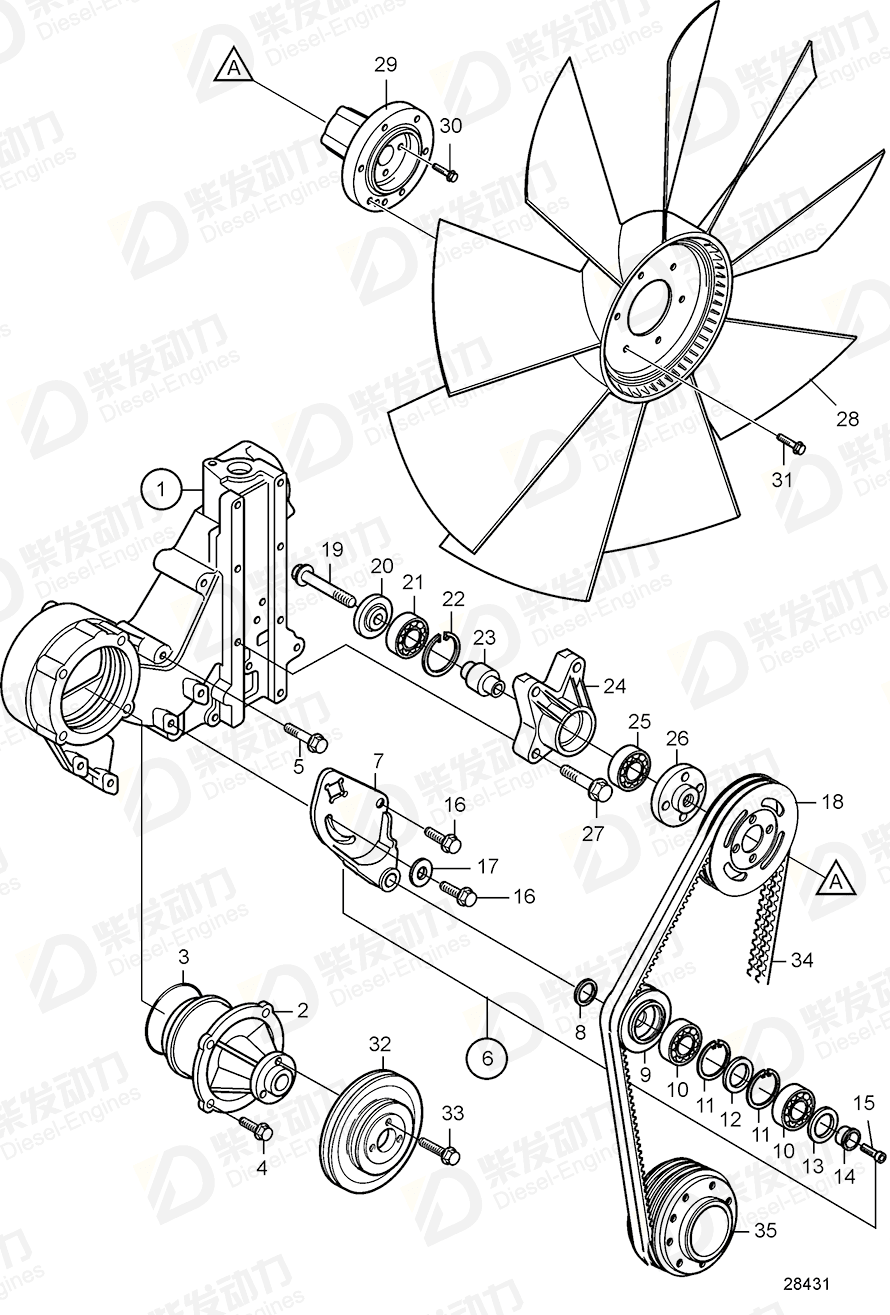

| No. | Part Name | Part Number | Qty | Description |
| 4 | Flange screw | 984734 | 4 | |
| 5 | Flange screw | 984741 | 7 | L=70mm |
| 6 | Belt tensioner | 20450758 | 1 | SN10103092-10467324 |
| 6 | Belt tensioner | 21142055 | 1 | SN10467325-11415146 |
| 6 | Belt tensioner | 22295257 | 1 | SN11415147- |
| 7 | Belt tensioner | 20450764 | 1 | |
| 8 | Ring | 20450762 | 1 | |
| 9 | Pulley | 20450759 | 1 | SN-22001331, Replaced by 22295270 |
| 10 | Ball bearing | 11012 | 2 | |
| 11 | Retaining ring | 20459025 | 2 | |
| 12 | Spacer sleeve | 20450760 | 1 | |
| 13 | Seal | 20450990 | 1 | |
| 14 | Spacer | 20450761 | 1 | |
| 15 | Hexagon screw | 970947 | 1 | M10X25 |
| 16 | Hexagon screw | 970947 | 2 | M10X25 |
| 17 | Washer | 20460365 | 1 | |
| 18 | Pulley | 21087704 | 1 | |
| 19 | Hexagon screw | 20450754 | 1 | |
| 20 | Washer | 20999732 | 1 | |
| 21 | Ball bearing | 181335 | 1 | |
| 22 | Retaining ring | 20459025 | 1 | |
| 23 | Shaft | 21009699 | 1 | |
| 24 | Bearing bracket | 20715795 | 1 | |
| 25 | Ball bearing | 181648 | 1 | (20450749) |
| 26 | Fan hub | 20450755 | 1 | |
| 27 | Flange screw | 984755 | 4 | |
| 28 | Fan | 21034351 | 1 | |
| 29 | Adapter | 21034597 | 1 | |
| 30 | Flange screw | 984744 | 4 | |
| 31 | Hexagon screw | 970947 | 6 | M10X25 |
| 33 | Flange screw | 20405792 | 4 | |
| 34 | V-belt | 21087705 | 1 | 35Pulley将已选物品添加至购物车 |
| Item | Part Name | Part No. |
| 34 | V-belt 21087705 | 21087705 |
| Details | |
| Engine model | TAD732GE, TAD733GE |
| Application | Fan and Fan Bracket SN-10707001 Fan and Fan Bracket SN10707002- |
| Specification | |
| Descriptions | 35Pulley将已选物品添加至购物车 36Pulley将已选物品添加至购物车 |
Tags: V-belt, Volvo Penta, 21087705
