V-belt 958314

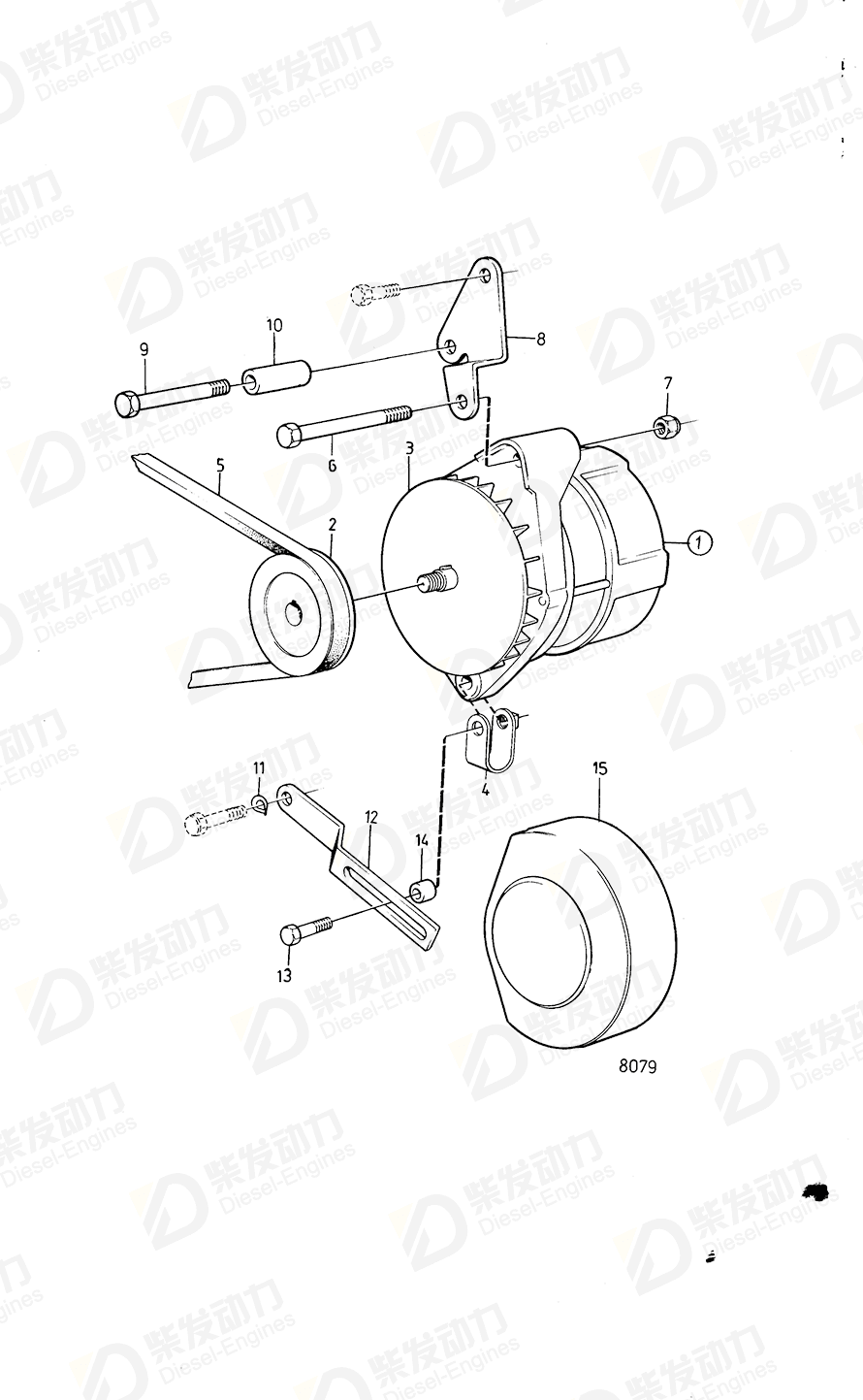

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 1578140 | 1 | 28V 45A |
| 2 | V-belt pulley | 465145 | 1 | MOXXXXX/40428- |
| 3 | Fan | 241363 | 1 | |
| 4 | Tensioning loop | 466735 | 1 | |
| 5 | V-belt | 958314 | 1 | L=1100mm |
| 5 | V-belt | 966383 | 1 | Tid.utf. L=1X1175mm |
| 6 | Hexagon screw | 955557 | 1 | |
| 7 | Lock nut | 950355 | 1 | |
| 8 | Bracket | 420431 | 1 | Basic engine 497692 MO149096/XXXXX-., Basic engine 497693 MO149140/XXXXX-. |
| 9 | Hexagon screw | 955533 | 1 | For engine with 40° angle of inclination, L=102mm |
| 10 | Spacer sleeve | 827861 | 1 | MO-201373/XXXXX |
| 11 | Spring washer | 941907 | 1 | |
| 12 | Tensioner | 420427 | 1 | Early type |
| 12 | Tensioner | 466597 | 1 | Spec.867578 |
| 12 | Tensioner | 838073 | 1 | (944459) |
| 13 | Hexagon screw | 955300 | 1 | (955299) |
| 14 | Spacer sleeve | 807183 | 1 | Used on crankshaft 829999. |
| 15 | Belt protector | 844446 | 1 | Early type |
| Item | Part Name | Part No. |
| 5 | V-belt 958314 | 958314 |
| Details | |
| Engine model | TD60B TD60D TD70G |
| Application | ALTERNATOR AND INSTALLATION COMPONENTS, LOW MOUNTED Alternator and Installation Components, Low Mounted: B Thermostat and Water Pump with Installation Components |
| Specification | |
| Descriptions | L = 1100 MM L=1100mm MOXXXXX/98708-., Alternator,low mounted., L=1000mm |
