V-belt 966397

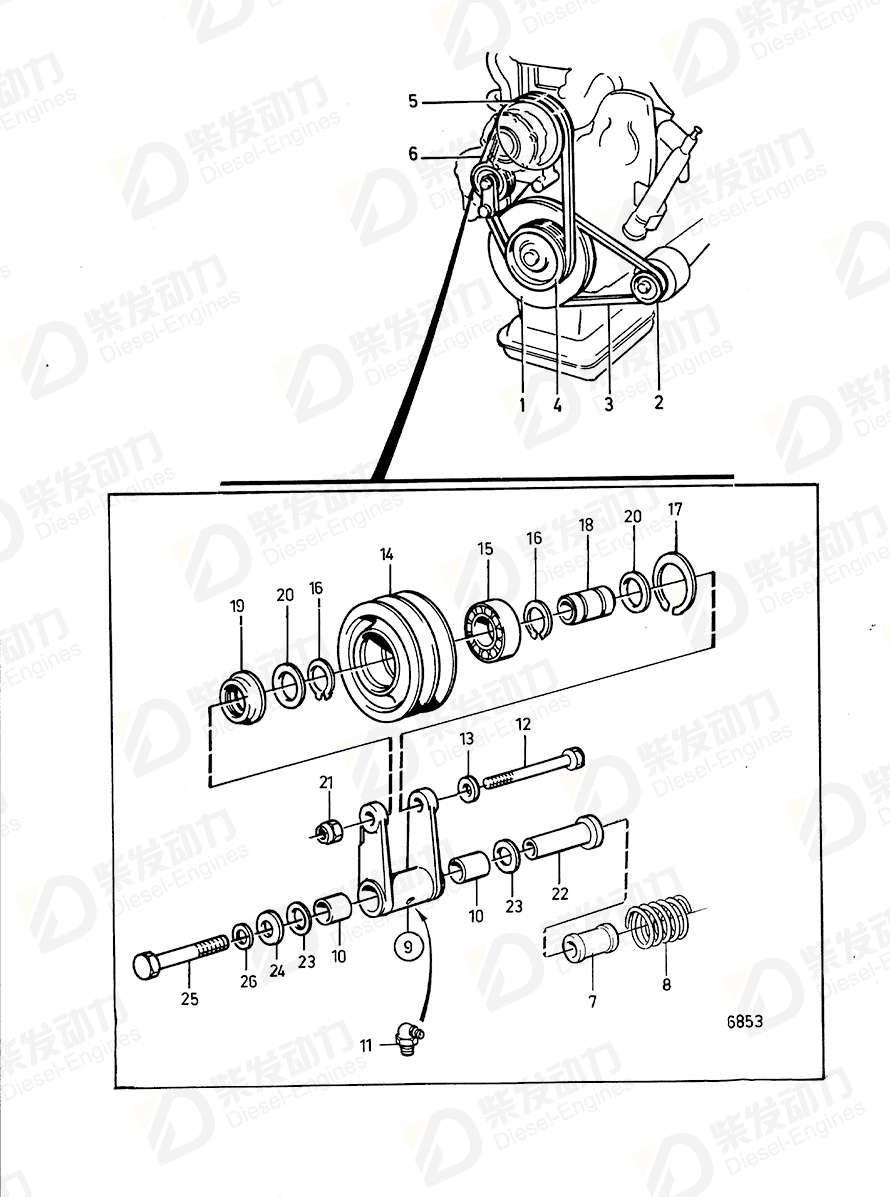

| No. | Part Name | Part Number | Qty | Description |
| 3 | V-belt | 958319 | 1 | |
| 6 | V-belt | 966397 | 1 | L=2X1313mm |
| 7 | Spacer sleeve | 845208 | 1 | Included in spring kit 876019. |
| 8 | Torsion spring | 845215 | 1 | Included in spring kit 876020. |
| 10 | Bearing bushing | 946176 | 2 | |
| 11 | Lubricating nipple | 914170 | 1 | |
| 12 | Screw | 955328 | 1 | |
| 13 | Spring washer | 941908 | 1 | |
| 14 | Pulley | 844048 | 1 | |
| 15 | Ball bearing | 1544092 | 1 | (181430) |
| 16 | Retaining ring | 914462 | 2 | |
| 17 | Retaining ring | 914533 | 1 | |
| 18 | Spindle | 843925 | 1 | |
| 19 | Protecting plate | 844049 | 2 | |
| 20 | Sealing ring | 965862 | 2 | |
| 21 | Lock nut | 963107 | 1 | |
| 22 | Spindle | 843926 | 1 | |
| 23 | Wear washer | 843927 | 2 | |
| 24 | Washer | 18702 | 1 | |
| 25 | Hexagon screw | 959821 | 1 | L=152mm |
| Item | Part Name | Part No. |
| 6 | V-belt 966397 | 966397 |
| Details | |
| Engine model | TD120HP-86, TD121G, TD121GG, TD121GG-86, TD121GGP, TID121K, TID121KG, TID121KP, TID121KGP, TID121LG, TID121LGP, TID121LP TD120HPP TID120HPP TID121FG |
| Application | Belt Transmission and Automatic Belt Tensioner |
| Specification | |
| Descriptions | L = 2X1313 MM L=2X1313mm |
