V-belt 966642

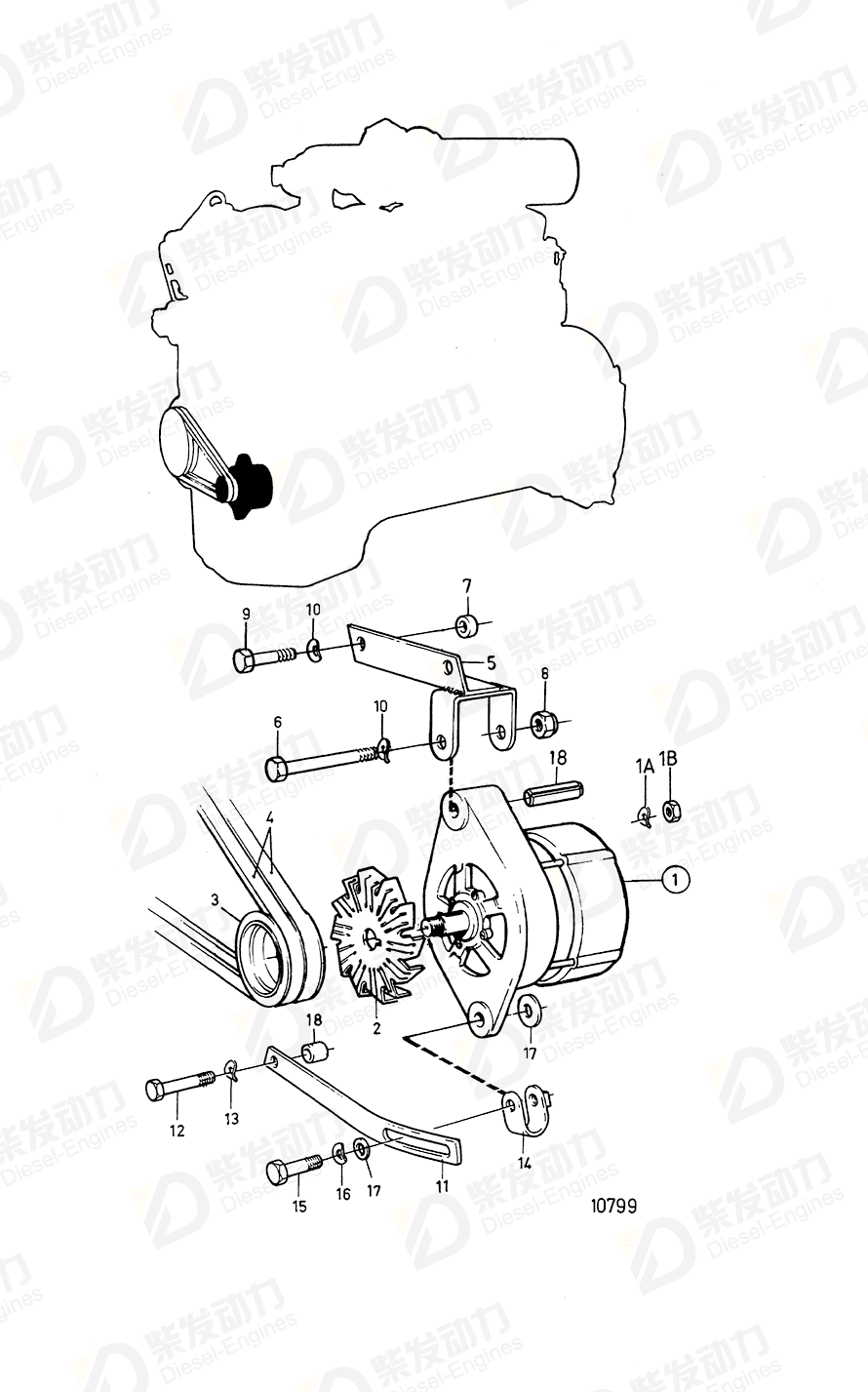

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 845940 | 1 | For 24 voltage electric system., 24V 55A |
| 1 | Alternator | 849563 | 1 | For 24V electric system., Replaced by 863955., SN-1101019500/XXXXXX |
| 1 | Alternator | 863955 | 1 | 28V 60A. for 24V electric system., Replaced by 872021., SN-1101038358/XXXXXX |
| 1 | Alternator | 872021 | 1 | For 24V electric system., 28V 60A, repl by 873757 |
| 1 | Spring washer | 941906 | 1 | |
| 1 | Spring washer | 941907 | 1 | |
| 1 | Hexagon nut | 955781 | 1 | |
| 1 | Hexagon nut | 955782 | 1 | |
| 1 | Alternator | 1607362 | 1 | For 24 voltage electric system., Alt. 28V 55A |
| 2 | Fan | 1613241 | 1 | |
| 3 | Pulley | 822573 | 1 | |
| 4 | V-belt | 966642 | 1 | Spec 867925 |
| 4 | V-belt | 966798 | 1 | |
| 5 | Alternator bracket | 849494 | 1 | (846800) |
| 6 | Hexagon screw | 955555 | 1 | L=83mm |
| 7 | Spacer sleeve | 823575 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 8 | Lock nut | 950355 | 1 | |
| 9 | Hexagon screw | 955537 | 2 | |
| 10 | Spring washer | 942336 | 2 | |
| 11 | Tensioner | 849007 | 1 | Spec 867925 |
| 11 | Tensioner | 966797 | 1 | |
| 12 | Hexagon screw | 955541 | 1 | |
| 13 | Spring washer | 942336 | 1 | |
| 14 | Tensioning loop | 466734 | 1 | |
| 15 | Hexagon screw | 955299 | 1 | |
| 16 | Spring washer | 941907 | 1 | |
| 17 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 18 | Spring pin | 1610144 | 1 | |
| 1A | Spring washer | 941905 | 1 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 1B | Hexagon nut | 955780 | 1 |
| Item | Part Name | Part No. |
| 4 | V-belt 966642 | 966642 |
| Details | |
| Engine model | TD100G, TD100G-85, TD100GP, TD100GP-85, TID100K, TID100KP TD100G-87, TD100HP-87, TD100HPB-87, TID100K-87, TID100KP-87, TID100KPB-87 |
| Application | Alternator, Low Mounted Left Side |
| Specification | |
| Descriptions | Spec 867925 Spec 868194 |
Related Products
Tags: V-belt, Volvo Penta, 966642
