V-belt 966696

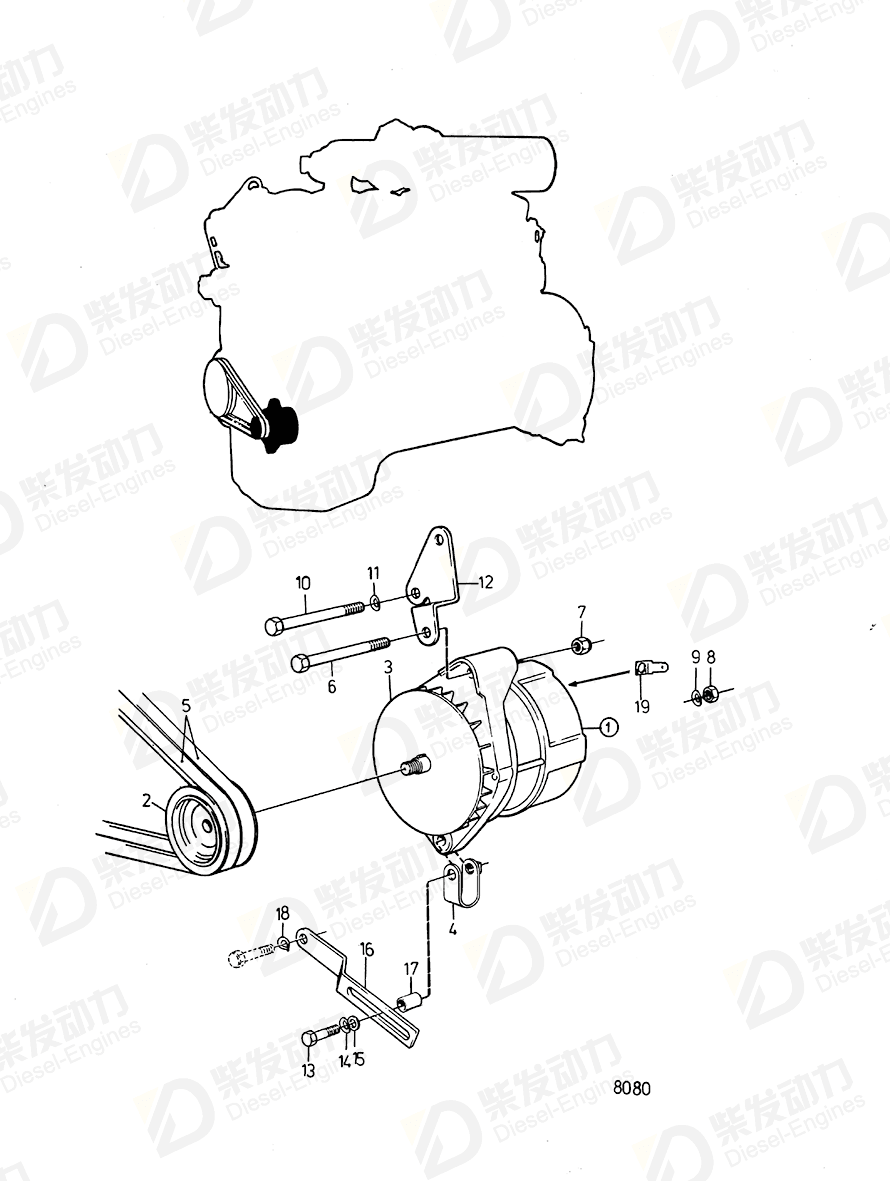

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 1578140 | 1 | 28V 45A |
| 2 | Pulley | 822573 | 1 | |
| 3 | Fan | 241363 | 1 | |
| 4 | Tensioning loop | 466735 | 1 | |
| 5 | V-belt | 966696 | 1 | L = 1X1150 MM LATE TYPE |
| 5 | V-belt | 966978 | 1 | L=2X1100mm |
| 6 | Hexagon screw | 955557 | 1 | |
| 7 | Lock nut | 950355 | 1 | |
| 8 | Lock nut | 963104 | 1 | |
| 9 | Spring washer | 941907 | 1 | |
| 10 | Hexagon screw | 955530 | 1 | |
| 11 | Spring washer | 941907 | 1 | |
| 12 | Bracket | 420431 | 1 | Basic engine 497692 MO149096/XXXXX-., Basic engine 497693 MO149140/XXXXX-. |
| 13 | Screw | 955301 | 1 | |
| 14 | Spring washer | 941907 | 1 | |
| 15 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 16 | Tensioner | 838073 | 1 | (944459) |
| 17 | Spacer sleeve | 807183 | 1 | Used on crankshaft 829999. |
| 18 | Spring washer | 941907 | 1 | |
| 19 | 941881 | 1 |
| Item | Part Name | Part No. |
| 5 | V-belt 966696 | 966696 |
| Details | |
| Engine model | TD60D-83 TD61A, TD61AW, TD71A, TD71AW, TID71A TD61ACE TD70G-83 |
| Application | ALTERNATOR LOW MOUNTED LEFT SIDE Alternator Low Mounting Alternator Low Mounting: A |
| Specification | |
| Descriptions | L = 1X1150 MM LATE TYPE L=1X1150mm late type Tid.utf. L=1X1150mm |
