V-belt 966974

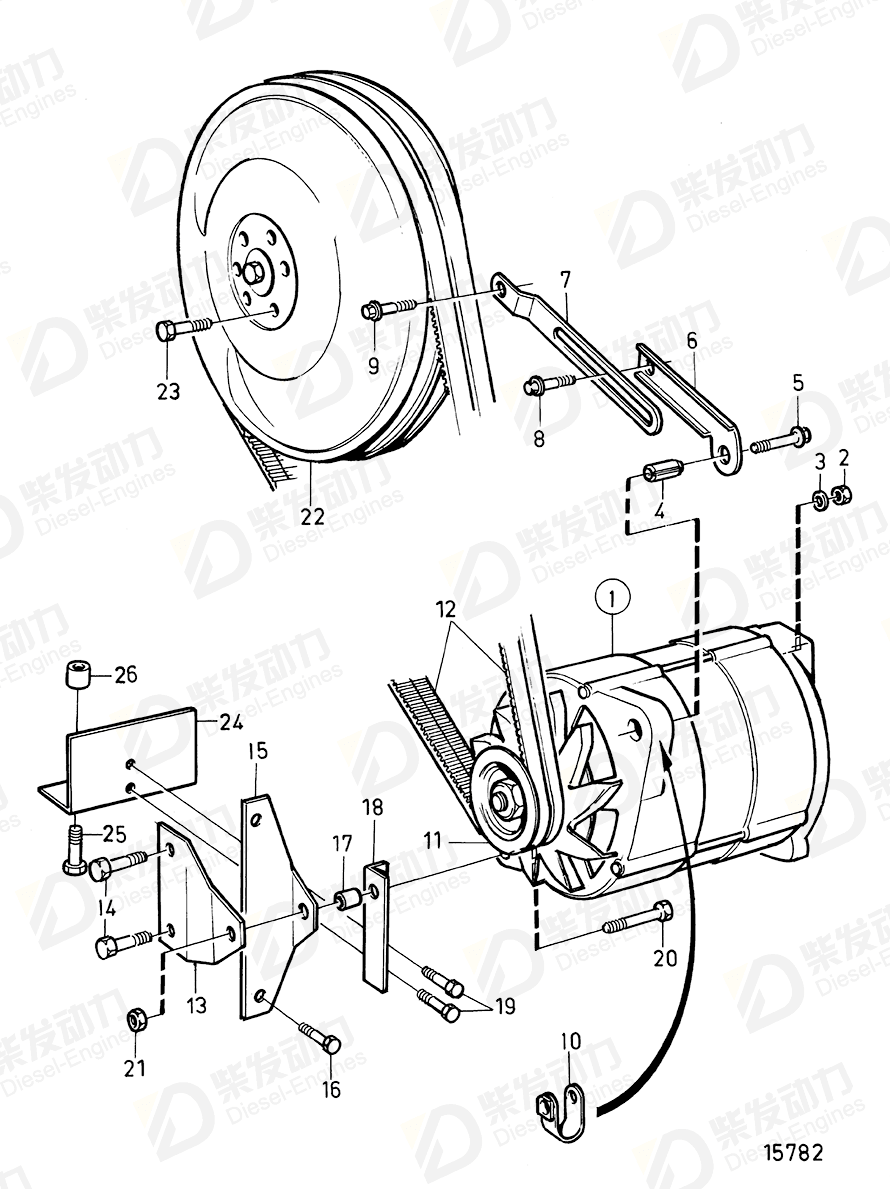

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 872022 | 1 | 28V 60A, Repl by 873771 |
| 1 | Alternator | 873757 | 1 | 28V 60A, repl by 873771 |
| 1 | Alternator | 873771 | 1 | 28V 60A |
| 1 | Alternator, exch | 3803443 | 1 | 28V 60A |
| 2 | Hexagon nut | 955779 | 1 | |
| 3 | Spring washer | 941904 | 1 | |
| 4 | Spring pin | 1610144 | 1 | |
| 5 | Flange screw | 984738 | 1 | |
| 6 | Tensioner | 847956 | 1 | |
| 7 | Tensioner | 849847 | 1 | |
| 8 | Flange screw | 984734 | 1 | |
| 9 | Flange screw | 984738 | 1 | |
| 10 | Tensioning loop | 466734 | 1 | |
| 11 | Pulley | 822573 | 1 | |
| 12 | V-belt | 966974 | 1 | |
| 13 | Bracket | 862715 | 1 | |
| 14 | Hexagon screw | 971012 | 2 | M14x150mm |
| 15 | Bracket | 862716 | 1 | |
| 16 | Flange screw | 984815 | 2 | |
| 17 | Spacer sleeve | 820916 | 1 | MO 21083/XXXXX- |
| 18 | Bracket | 863025 | 1 | |
| 19 | Flange screw | 984725 | 2 | |
| 20 | Hexagon screw | 970963 | 1 | |
| 21 | Flange lock nut | 971098 | 1 | |
| 22 | Pulley | 848942 | 1 | |
| 23 | Flange screw | 984734 | 6 | |
| 24 | Bracket | 863024 | 1 | |
| 25 | Flange screw | 984735 | 2 | |
| 26 | Spacer sleeve | 807183 | 2 | Used on crankshaft 829999. |
| Item | Part Name | Part No. |
| 12 | V-belt 966974 | 966974 |
| Details | |
| Engine model | TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TID162AG, TID162AGP, TID162AP, TID162APB TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE |
| Application | Alternator SN-2160016584 Alternator with Installation Components |
