V-belt 966978

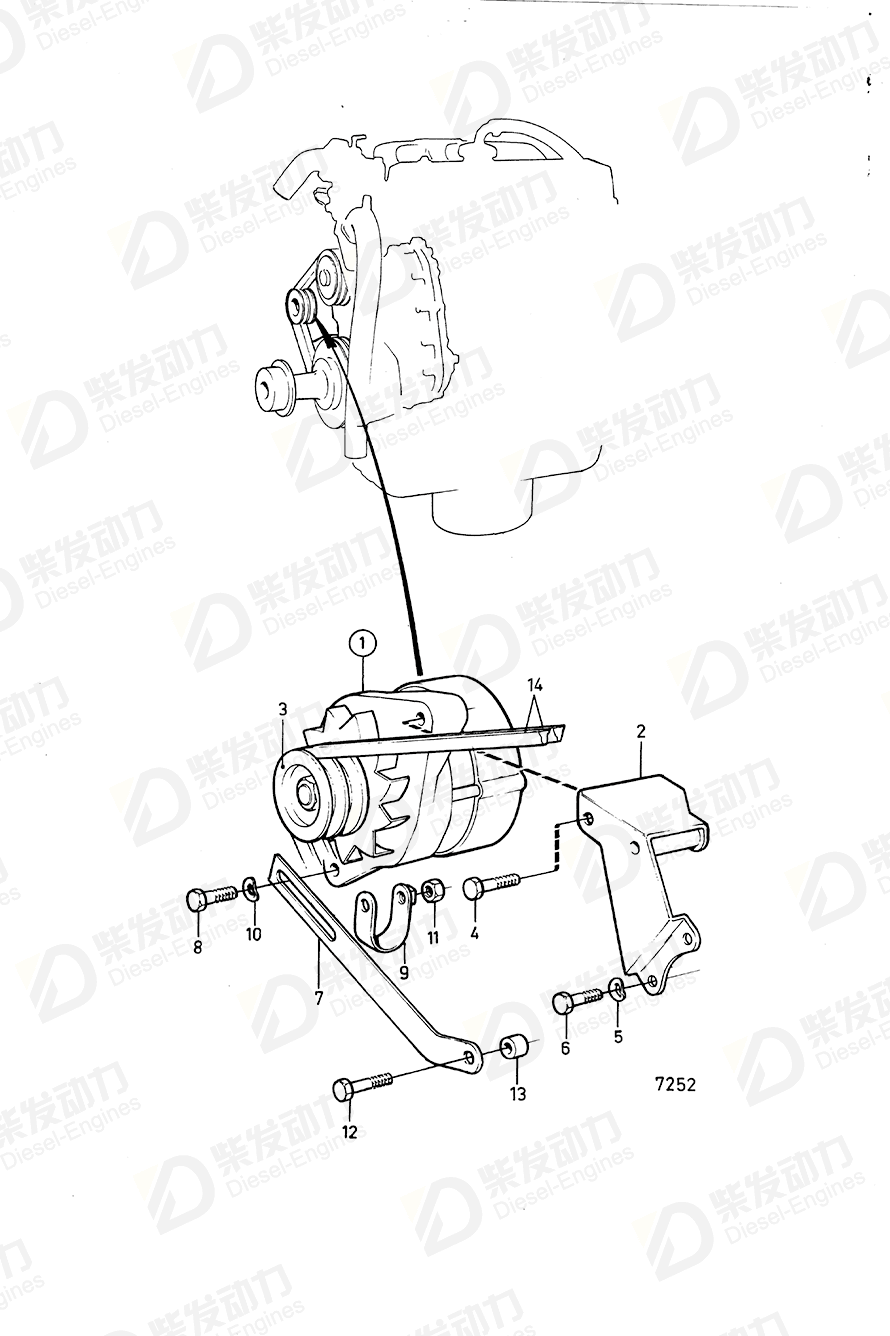

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 845940 | 1 | For 24 voltage electric system., 24V 55A |
| 2 | Bracket | 1545304 | 1 | |
| 3 | Pulley | 841812 | 1 | |
| 4 | Hexagon screw | 955553 | 1 | |
| 5 | Spring washer | 941907 | 3 | |
| 6 | Hexagon screw | 955305 | 2 | |
| 6 | Hexagon screw | 955306 | 1 | |
| 7 | Tensioner | 845021 | 1 | |
| 8 | Hexagon screw | 955298 | 1 | L=50mm |
| 9 | Tensioning loop | 466735 | 1 | |
| 10 | Spring washer | 941905 | 1 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 11 | Hexagon nut | 955780 | 1 | |
| 12 | Hexagon screw | 955306 | 1 | |
| 13 | Spacer sleeve | 842350 | 1 | For bracket 829839 with 8 holes. |
| 14 | V-belt | 966978 | 1 | L=2X1100mm |
| Item | Part Name | Part No. |
| 14 | V-belt 966978 | 966978 |
| Details | |
| Engine model | TD30A TD31ACE TD60D-83 TD70G-83 |
| Application | Alternator and Installation Components ALTERNATOR LOW MOUNTED LEFT SIDE |
| Specification | |
| Descriptions | L = 2X1100 MM EARLY TYPE L=2X1100mm L=2X1100mm early type |
