V-belt 976492

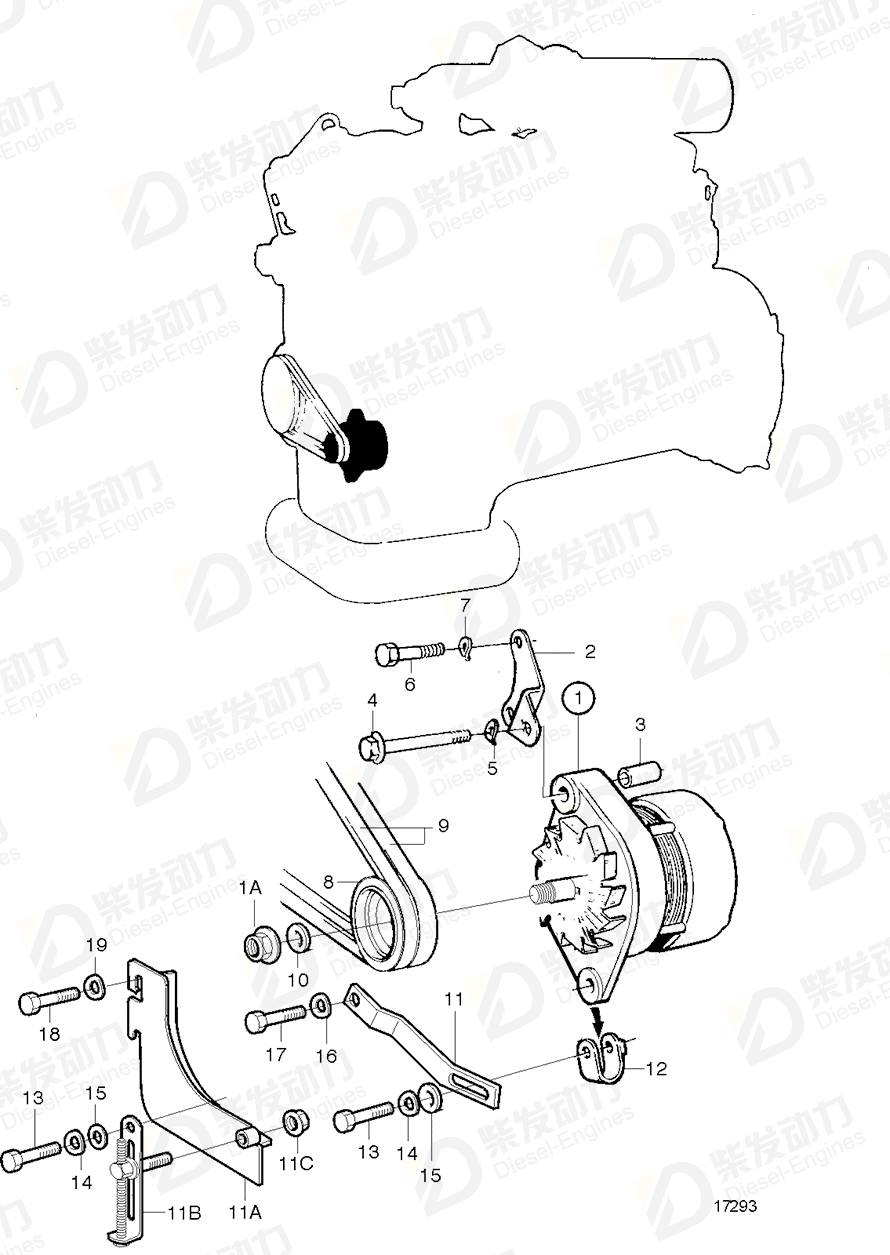

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 872021 | 1 | For 24V electric system., 28V 60A, repl by 873757 |
| 1 | Alternator | 873757 | 1 | 28V 60A, repl by 873771 |
| 1 | Alternator | 1089862 | 1 | 28V 80A, E.U=3803394 |
| 1 | Alternator, exch | 3803394 | 1 | 28V 80A, E.U=3803394 |
| 2 | Support plate | 1082911 | 1 | |
| 4 | Hexagon screw | 971005 | 1 | |
| 5 | Spring washer | 941911 | 1 | |
| 6 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 7 | Spring washer | 942336 | 2 | |
| 8 | Pulley | 822573 | 1 | |
| 9 | V-belt | 976492 | 1 | 80A |
| 9 | V-belt | 978556 | 1 | |
| 10 | Washer | 955900 | 1 | For charging of 2 batteries,use charge distributor 831793 |
| 11 | Tensioner | 864443 | 1 | Replaced by bracket 3827729, tensioner 1676586 and nut 971095. |
| 12 | Tensioning loop | 466734 | 1 | |
| 12 | Tensioning loop | 466735 | 1 | |
| 13 | Hexagon screw | 955299 | 1 | |
| 14 | Spring washer | 941907 | 1 | |
| 15 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 16 | Spring washer | 942336 | 1 | |
| 17 | Hexagon screw | 955542 | 1 | |
| 11A | Bracket | 3827729 | 1 | |
| 11B | Tensioner | 1676586 | 1 | |
| 11C | Flange nut | 971095 | 1 | Alt |
| Item | Part Name | Part No. |
| 9 | V-belt 976492 | 976492 |
| Details | |
| Engine model | TAD1230P, TWD1210P, TWD1211P TD121GP-87 TWD1210V, TWD1211V, TAD1230V TWD1230ME TWD1230VE TWD1231VE |
| Application | Alternator, Low-Left Mounted: B Alternator, Low-Left Mounted: C Alternator, Low-Left Mounted: SN 2120224465- |
| Specification | |
| Descriptions | 80A For 1089862 |
