V-belt 978548

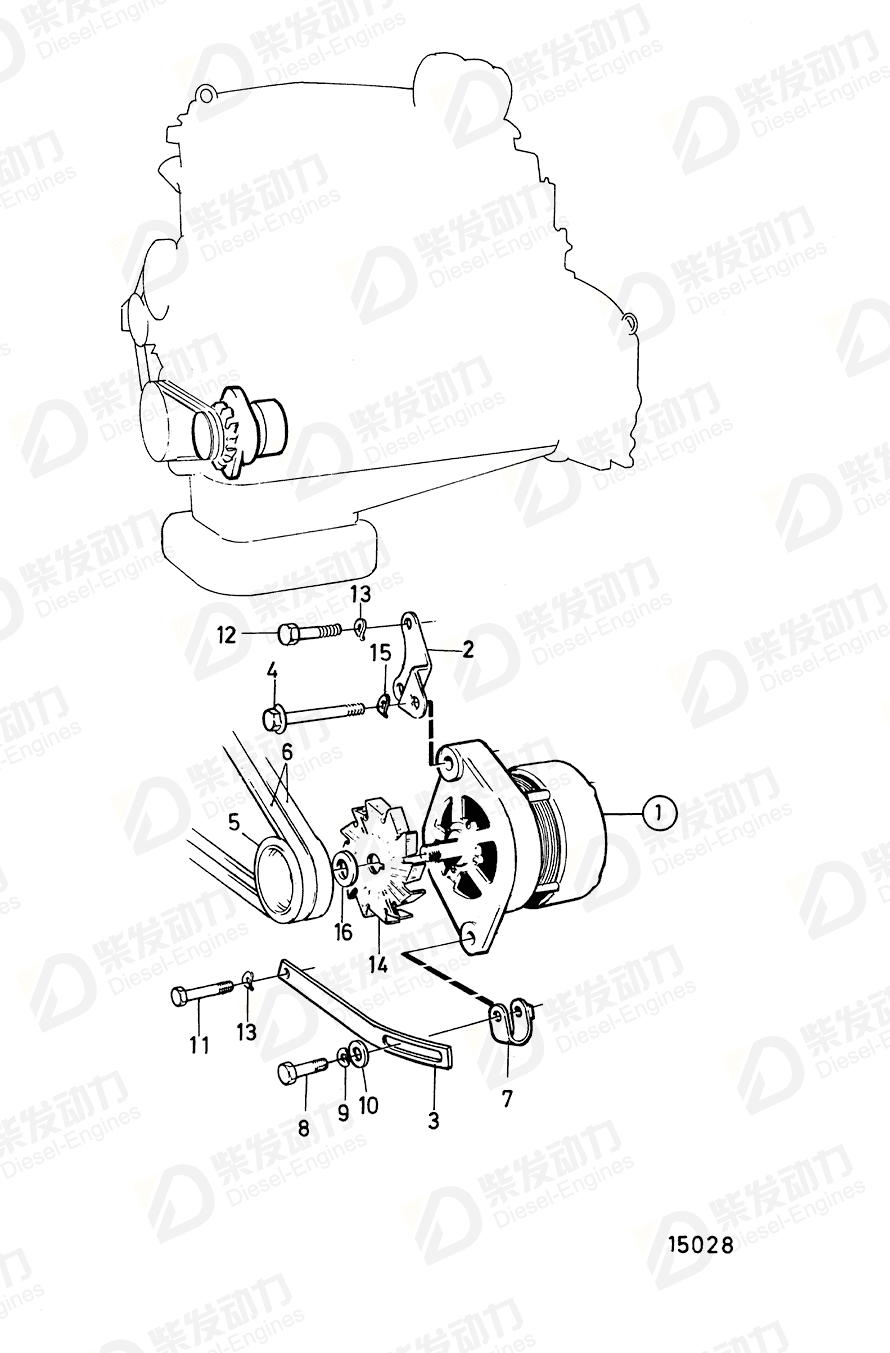

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 6779261 | 1 | For 24 voltage electric system., Alt. 28V 55A |
| 2 | Support plate | 1082911 | 1 | |
| 3 | Tensioner | 1545307 | 1 | |
| 4 | Hexagon screw | 971005 | 1 | |
| 5 | Pulley | 822573 | 1 | |
| 6 | V-belt | 978548 | 1 | L=2x1225mm |
| 7 | Tensioning loop | 466735 | 1 | |
| 8 | Hexagon screw | 955299 | 1 | |
| 9 | Spring washer | 941907 | 1 | |
| 10 | Washer | 191172 | 1 | Spec.867054, 867221. |
| 11 | Hexagon screw | 955541 | 1 | |
| 12 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 13 | Spring washer | 942336 | 3 | |
| 14 | Fan | 1613241 | 1 | |
| 15 | Spring washer | 941911 | 1 | |
| 16 | Washer | 945544 | 1 |
| Item | Part Name | Part No. |
| 6 | V-belt 978548 | 978548 |
| Details | |
| Engine model | TD100G, TD100G-85, TD100G-87, TID100K, TID100K-87 TD100G-87 TD100G-87, TD1030VE, TAD1030V, TWD1031VE TD1030ME, TWD1030ME |
| Application | Alternator Alt Low Mounted Left Side Alternator, Low-Left Mounted Alternator, Low-Left Mounted: 55A Alternator, Low-Left Mounted: 60A Alternator, Low-Left Mounted: 80A Alternator, Low-Left, SNXXXXXXXXXX/268617- |
| Specification | |
| Descriptions | L=2x1225mm |
