V-clamp 21472836

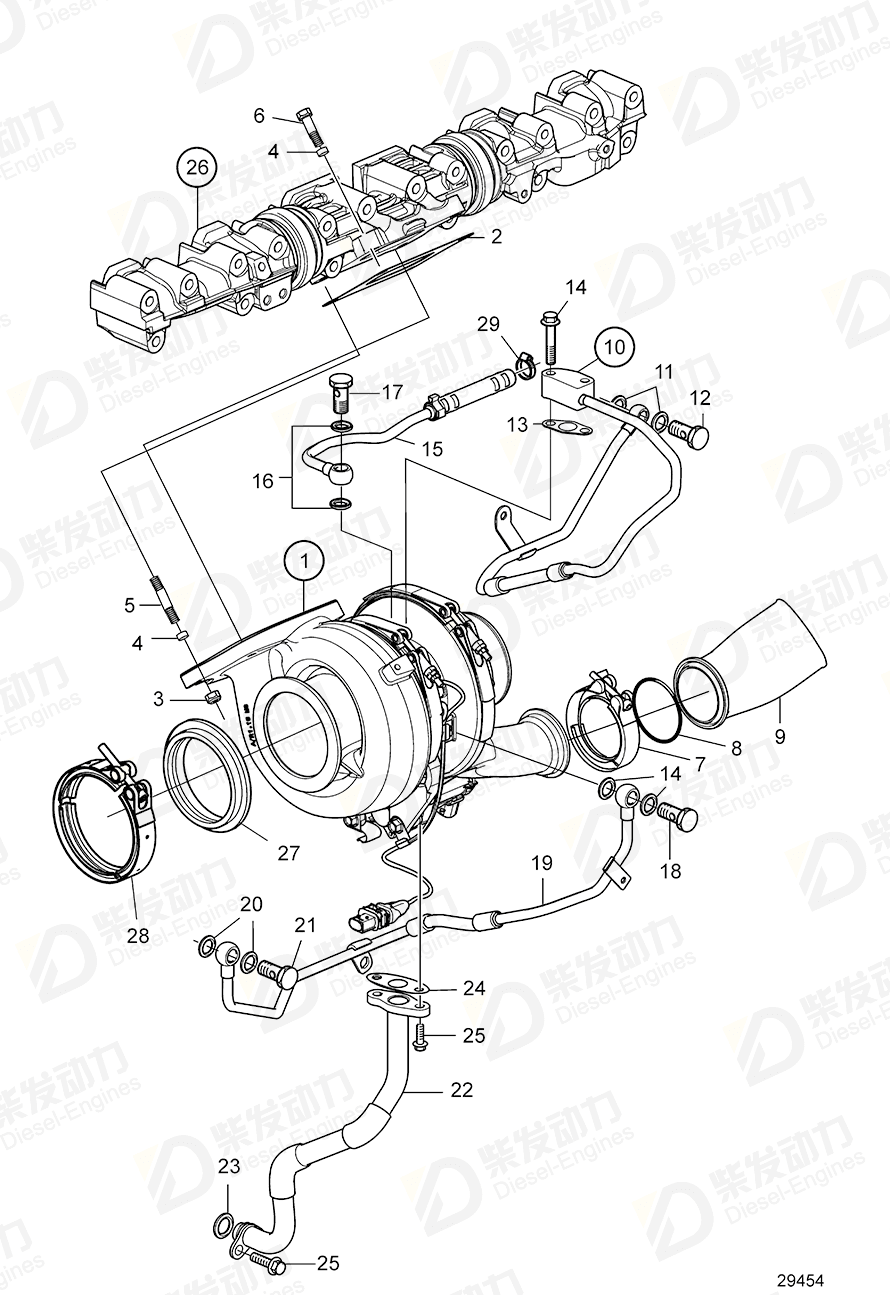

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger, exch | 3801550 | 1 | Outlet, High, Replaced by 3801610 |
| 1 | Turbocharger, exch | 3801610 | 1 | Outlet, High, Replaced by 3801642 |
| 1 | Turbocharger, exch | 3801642 | 1 | Outlet, High |
| 1 | Turbocharger | 22023965 | 1 | Outlet, High, Replaced by 22247477 |
| 1 | Turbocharger | 22060437 | 1 | Outlet, High |
| 2 | Gasket | 21464129 | 1 | |
| 3 | Flange nut | 1543499 | 2 | |
| 4 | Spacer sleeve | 470467 | 4 | |
| 5 | Stud | 977581 | 2 | |
| 6 | Flange screw | 981000 | 2 | |
| 7 | Hose clamp | 20592787 | 1 | |
| 8 | Sealing ring | 1542781 | 1 | |
| 9 | Connecting pipe | 21750927 | 1 | |
| 10 | Pipe | 22791842 | 1 | For alternative turbo rotation |
| 11 | Sealing ring | 20852763 | 2 | |
| 12 | Hollow screw | 973950 | 1 | |
| 13 | Plane gasket | 420641 | 1 | |
| 13 | Gasket | 22206133 | 1 | |
| 14 | Flange screw | 984737 | 2 | |
| 15 | Pipe | 21976336 | 1 | |
| 16 | Gasket | 969011 | 2 | |
| 17 | Hollow screw | 991048 | 1 | |
| 18 | Flange screw | 984733 | 1 | |
| 19 | Pipe | 21510113 | 1 | Replaced by 22702115 |
| 19 | Pipe | 22702115 | 1 | |
| 20 | Gasket | 982723 | 4 | |
| 21 | Hollow screw | 991048 | 2 | |
| 22 | Oil return pipe | 21778993 | 1 | Replaced by 23119514 |
| 22 | Oil return pipe | 23119514 | 1 | |
| 23 | Sealing ring | 21940615 | 1 | |
| 24 | Plane gasket | 20707685 | 1 | |
| 25 | Flange screw | 984734 | 2 | |
| 26 | Exhaust manifold | 21685083 | 1 | |
| 27 | Flange | 22366011 | 1 | |
| 28 | V-clamp | 21472836 | 1 | |
| 29 | Hose clamp | 961664 | 1 |
| Item | Part Name | Part No. |
| 28 | V-clamp 21472836 | 21472836 |
| Details | |
| Engine model | TAD540VE, TAD541VE, TAD542VE, TAD550VE, TAD551VE, TAD552VE TAD570VE, TAD571VE, TAD572VE TAD840VE, TAD841VE, TAD842VE, TAD843VE, TAD851VE, TAD852VE, TAD853VE TAD870VE, TAD871VE, TAD872VE, TAD873VE |
| Application | Exhaust Brake Exhaust Manifold and Turbocharger. Exhaust Manifold and Turbocharger. High Outlet. Exhaust Manifold and Turbocharger. Low Outlet. Exhaust Pipe and Installation Components SCR. Exhaust Pipe, Open Power Unit Turbocharger |
Related Products
Tags: V-clamp, Volvo Penta, 21472836
