V-clamp 3183622

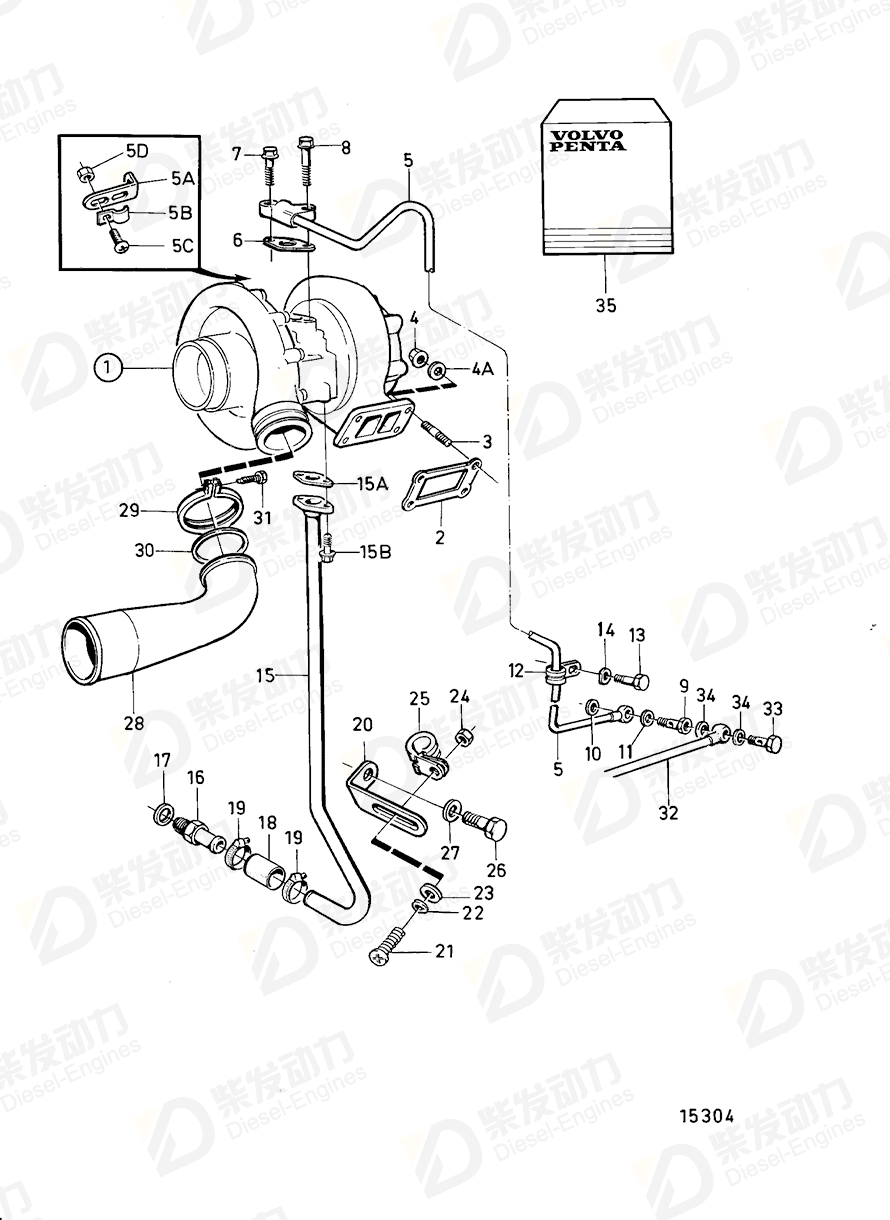

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802087 | 1 | (866144) |
| 2 | Gasket | 8194365 | 1 | |
| 3 | Stud | 8194545 | 4 | |
| 4 | Flange lock nut | 8194568 | 4 | |
| 5 | Oil pressure pipe | 849612 | 1 | |
| 6 | Plane gasket | 420641 | 1 | |
| 7 | Flange screw | 946173 | 1 | |
| 8 | Flange screw | 945444 | 1 | |
| 9 | Hollow screw | 479464 | 1 | |
| 10 | Gasket | 942703 | 1 | |
| 11 | Gasket | 11998 | 1 | |
| 12 | Clamp | 952626 | 1 | |
| 13 | Cross recessed screw | 950045 | 1 | |
| 14 | Spring washer | 941906 | 1 | |
| 15 | Oil return pipe | 862712 | 1 | SN-2100285314 |
| 16 | Nipple | 941875 | 1 | |
| 17 | Gasket, plug | 18677 | 1 | |
| 18 | Hose | 466328 | 1 | |
| 19 | Hose clamp | 994559 | 2 | |
| 20 | Bracket | 965560 | 1 | |
| 21 | Cross recessed screw | 950046 | 1 | |
| 22 | Spring washer | 941906 | 1 | |
| 23 | Washer | 955893 | 1 | |
| 24 | Hexagon nut | 955825 | 1 | Late type |
| 25 | Clamp | 952632 | 1 | Late type |
| 28 | Connecting pipe | 865121 | 1 | |
| 29 | V-clamp | 3183622 | 1 | |
| 30 | Sealing ring | 1542781 | 1 | |
| 31 | Hexagon screw | 949335 | 1 | |
| 32 | Delivery pipe, fuel inj. pump | 866721 | 1 | |
| 33 | Hollow screw | 969299 | 1 | |
| 34 | Gasket | 11994 | 2 | |
| 35 | Gasket kit | 876354 | 1 | |
| 4A | Washer | 940097 | 4 | |
| 5A | Bracket | 965559 | 1 | |
| 5B | Clamp | 968200 | 1 | |
| 5C | Cross recessed screw | 950046 | 1 | |
| 5D | Hexagon nut | 955825 | 1 | Late type |
| 15A | Plane gasket | 420643 | 1 | |
| 15B | Flange screw | 945444 | 2 |
| Item | Part Name | Part No. |
| 29 | V-clamp 3183622 | 3183622 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE TAD1031GE TAD1032GE |
| Application | Turbocharger |
