V-ribbed belt 11709634

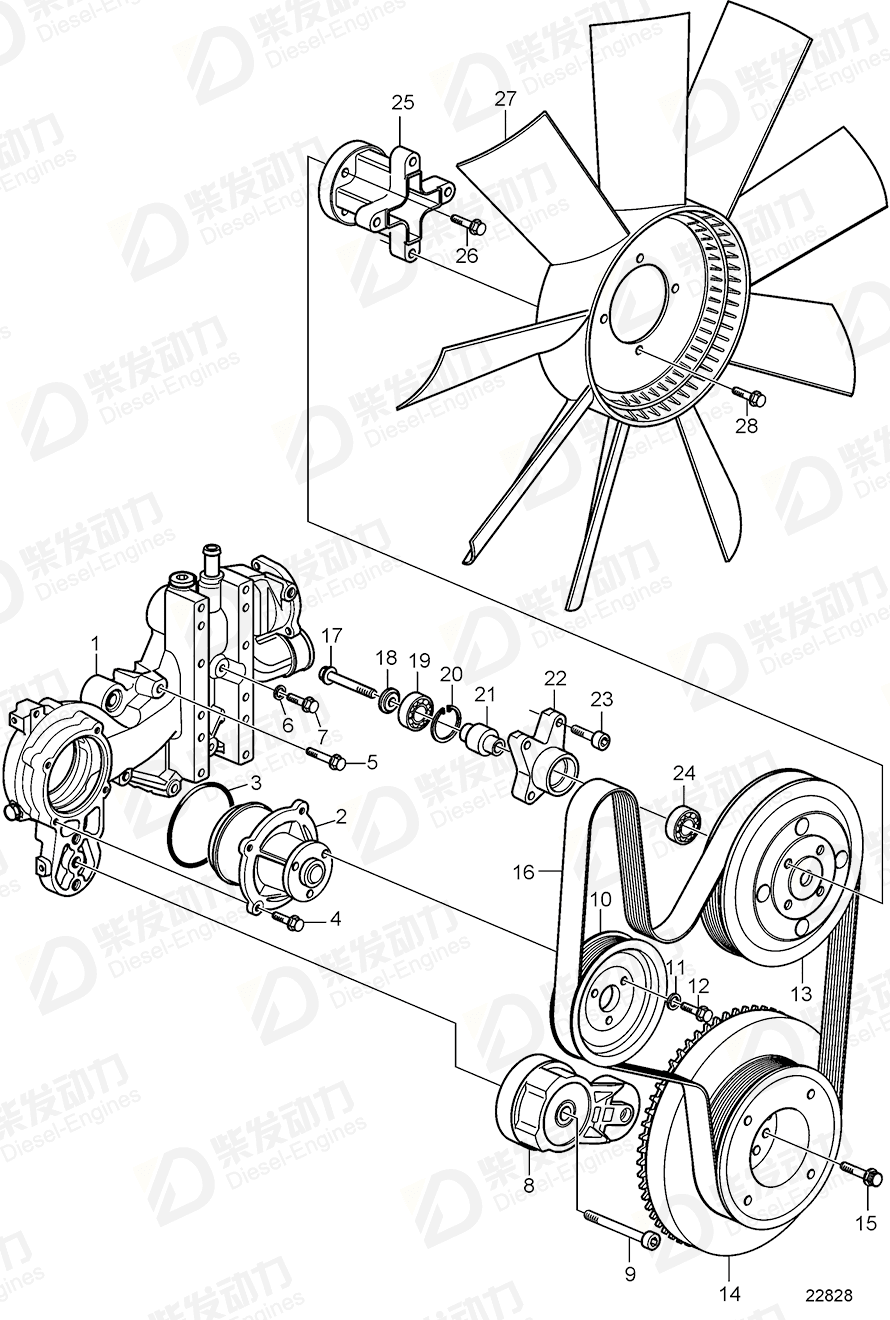

| No. | Part Name | Part Number | Qty | Description |
| 4 | Flange screw | 984734 | 4 | |
| 5 | Flange screw | 984741 | 5 | L=70mm |
| 6 | Sealing ring | 20459900 | 1 | |
| 7 | Flange screw | 20405898 | 1 | |
| 8 | Belt tensioner | 20909227 | 1 | (20798534) |
| 9 | Hex. socket screw | 20555065 | 1 | SN01099384- |
| 10 | Pulley | 20459949 | 1 | |
| 11 | Washer | 20450745 | 3 | |
| 12 | Flange screw | 20405792 | 3 | |
| 13 | Pulley | 20459863 | 1 | |
| 14 | V-belt pulley | 20799122 | 1 | Vibration damper is integrated in V-ribbed belt pully. |
| 15 | Six point screw | 20405724 | 4 | |
| 16 | V-ribbed belt | 11709634 | 1 | L=1507mm |
| 17 | Hexagon screw | 20450754 | 1 | |
| 18 | Washer | 20999732 | 1 | |
| 19 | Ball bearing | 996518 | 1 | (20450750) |
| 20 | Snap ring | 914529 | 1 | |
| 21 | Hollow shaft | 21901696 | 1 | |
| 22 | Bearing bracket | 21901728 | 1 | |
| 23 | Hex. socket screw | 20459263 | 4 | |
| 24 | Ball bearing | 996519 | 1 | (20450749) |
| 25 | Adapter | 20405987 | 1 | Adapter contactsurface, against fan settle length (mm). diffrence 25mm, 38mm & 63mm |
| 25 | Adapter | 20405988 | 1 | For Fan 20405918 & 20412426 |
| 26 | Flange screw | 984736 | 4 | |
| 28 | Flange screw | 984734 | 4 |
| Item | Part Name | Part No. |
| 16 | V-ribbed belt 11709634 | 11709634 |
| Details | |
| Engine model | TAD650VE, TAD660VE TD420VE, TAD420VE, TAD620VE |
| Application | Bracket for Fan. 220mm Fan Height. Ratio 1:0,9 / 1:1,0 / 1:1,2: 1:0, 9 Bracket for Fan. 220mm Fan Height. Ratio 1:0.9 SN-10709642 Bracket for Fan. 220mm Fan Height. Ratio 1:0.9 SN10709643- |
| Specification | |
| Descriptions | L=1507mm L=1507mm, (20464442) |
