Valve seat 1542265

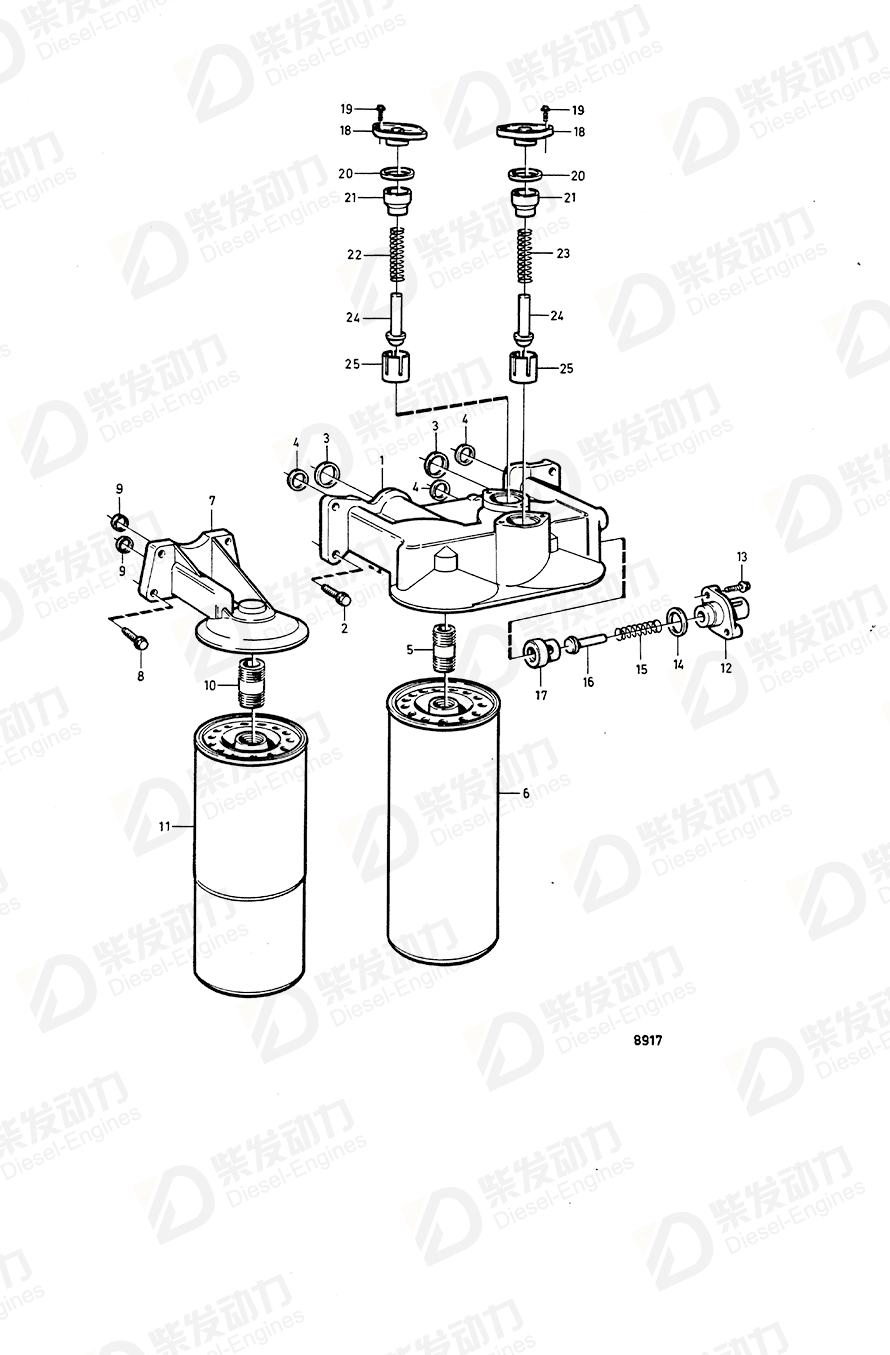

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil filter housing | 1543466 | 1 | |
| 2 | Flange screw | 984736 | 4 | |
| 3 | Sealing ring | 1543577 | 2 | |
| 4 | Sealing ring | 1543566 | 3 | O.S=32,5mm |
| 5 | Nipple | 1543276 | 2 | |
| 6 | Oil filter | 466634 | 2 | |
| 7 | Oil filter housing | 1543852 | 1 | |
| 8 | Flange screw | 984736 | 4 | |
| 9 | Sealing ring | 1543576 | 2 | O.D=22,4mm |
| 10 | Nipple | 469904 | 1 | |
| 11 | Oil filter, by-pass | 477556 | 1 | |
| 12 | Housing | 1543608 | 1 | |
| 13 | Flange screw | 984736 | 2 | |
| 14 | Sealing ring | 1543577 | 1 | |
| 15 | Compression spring | 1543611 | 1 | |
| 16 | Peg | 1543610 | 1 | |
| 17 | Seat | 1543964 | 1 | |
| 18 | Cover | 1542267 | 2 | |
| 19 | Flange screw | 945414 | 4 | |
| 20 | Sealing ring | 1543577 | 2 | |
| 21 | Sleeve | 1542266 | 2 | |
| 22 | Compression spring | 1543642 | 1 | |
| 23 | Compression spring | 466653 | 1 | |
| 24 | Valve cone | 471085 | 2 | |
| 25 | Valve seat | 1542265 | 2 |
| Item | Part Name | Part No. |
| 25 | Valve seat 1542265 | 1542265 |
| Details | |
| Engine model | TAD1630P, TWD1630P TAD1630V, TWD1630V TD164KAE TD30A TD31ACE TD40A TID162AG, TID162AGP, TID162AP, TID162APB TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE |
| Application | Oil Filter Oil Filter and Installation Components Oil Filter and Installation Components: A Oil Filter and Installation Components: B Oil Filter and Installation Components: C Oil Filter Housing Oil Filter Housing and Oil Filter Oil Filter Housing and Oil Filter SN-2160030014 Oil Filter Housing and Oil Filter SN2160030015-: 3826150 Oil Filter Housing and Oil Filter SN2160030015-: 3826373 Oil Filter Housing and Oil Filter: 3826150 Oil Filter Housing and Oil Filter: 3826373 |
Tags: Valve seat, Volvo Penta, 1542265
