Valve seat, exhaust 1543972

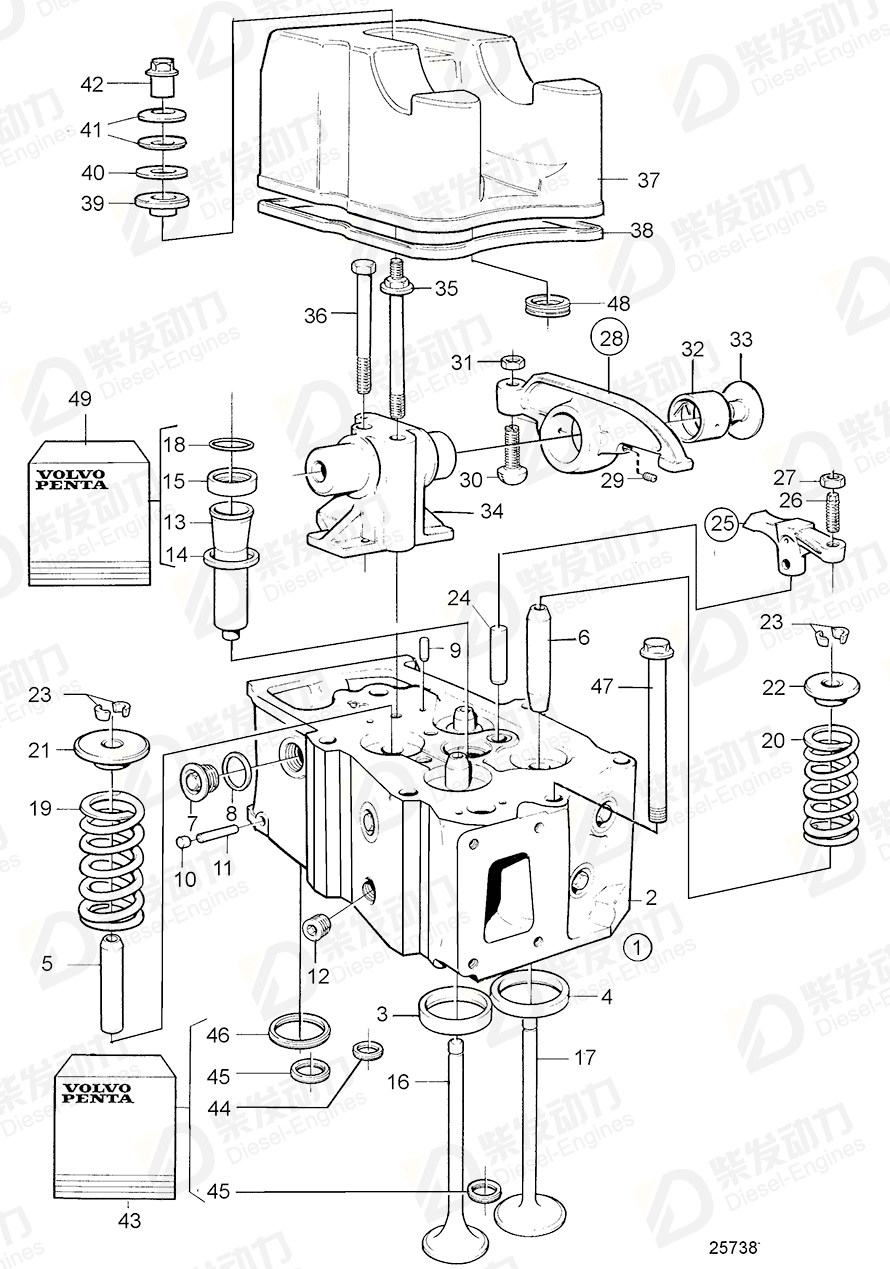

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 1556590 | 6 | |
| 1 | Cylinder head | 3803148 | 6 | (1556590) |
| 3 | Valve seat, exhaust | 1543860 | 12 | O.D=48,0mm H=11,0mm, Std |
| 3 | Valve seat, exhaust | 1543972 | 12 | O.D=48,2mm H=11,0mm, O.S=0,20mm |
| 4 | Valve seat, inlet | 1543861 | 12 | O.D=50,08mm H=6,2mm, Std |
| 4 | Valve seat, inlet | 1543973 | 12 | O.D=50,28mm H=6,2mm, O.S=0,20mm |
| 5 | Valve guide, exhaust | 20355015 | 12 | (1556604) |
| 6 | Valve guide, intake | 20355012 | 12 | (1556607) |
| 7 | Plug | 1556989 | 24 | (1556860) |
| 8 | Gasket | 468463 | 24 | |
| 9 | Pin | 950543 | 12 | |
| 10 | Plug | 955077 | 6 | |
| 11 | Pin | 1543492 | 6 | |
| 12 | Plug | 3964715 | 12 | (1543941) |
| 14 | Sealing ring | 1543225 | 6 | |
| 15 | Ring | 1543606 | 6 | |
| 16 | Exhaust valve | 1556896 | 12 | (1556473) (1556820) |
| 17 | Inlet valve | 1556813 | 12 | |
| 18 | O-ring | 1543574 | 6 | |
| 19 | Valve spring, exhaust | 1543870 | 12 | |
| 20 | Valve spring, intake | 1543872 | 12 | |
| 21 | Valve spring washer, exhaust | 1543866 | 12 | |
| 22 | Valve spring washer, intake | 1543046 | 12 | |
| 23 | Valve collet | 1543078 | 48 | |
| 24 | Pin | 1556073 | 12 | |
| 25 | Valve caliper | 1556167 | 12 | |
| 26 | Adjusting screw | 1543368 | 12 | |
| 27 | Hexagon nut | 946911 | 12 | |
| 28 | Rocker arm | 1543441 | 12 | |
| 29 | Nozzle | 1543723 | 24 | |
| 30 | Ball screw | 1543372 | 12 | |
| 31 | Hexagon nut | 946911 | 12 | |
| 32 | Bushing | 1543443 | 12 | |
| 33 | Plug | 1543508 | 12 | |
| 34 | Bearing bracket | 1543476 | 6 | |
| 35 | Flange screw | 1556078 | 6 | |
| 36 | Flange screw | 975105 | 6 | M10x100mm |
| 37 | Valve cover | 1543469 | 6 | |
| 38 | Gasket | 1543581 | 6 | |
| 39 | Damping ring | 1543582 | 6 | |
| 40 | Washer | 1543657 | 6 | |
| 41 | Disc spring | 943819 | 12 | |
| 42 | Cap nut | 1543654 | 6 | |
| 43 | Sealing ring kit, cylinder head | 276924 | 6 | (271085) |
| 44 | Sealing ring | 1543576 | 6 | O.D=22,4mm |
| 45 | Sealing ring | 1543566 | 12 | O.S=32,5mm |
| 46 | Sealing ring | 1543580 | 12 | O.S=54,6mm |
| 47 | Flange screw | 1556956 | 36 | |
| 48 | Sealing ring, injector-valve cover | 1543751 | 6 | |
| 49 | Copper sleeve kit, fuel injector | 276836 | 6 | See group 99 |
| 49 | Gasket kit, for mounting of injectors | 876838 | 1 | See group 99 |
| Item | Part Name | Part No. |
| 3 | Valve seat, exhaust 1543972 | 1543972 |
| Details | |
| Engine model | TID162AG, TID162AGP TID162AP, TID162APB TWD1620G |
| Application | Cylinder Head Cylinder Head: 1556070 Cylinder Head: 1556590 |
| Specification | |
| Descriptions | O.D=48,2mm H=11,0mm, O.S=0,20mm O.S=0,20mm |
