Valve spring 467334

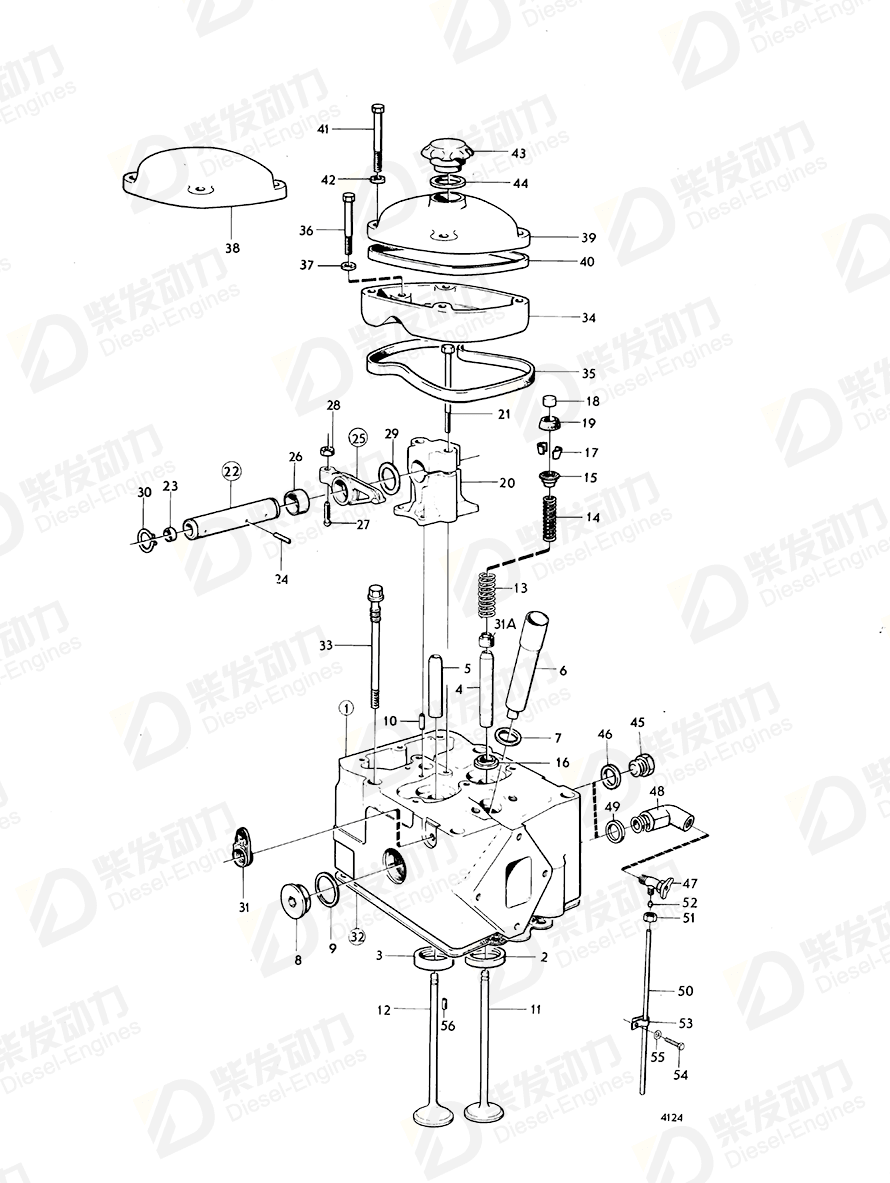

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803038 | 6 | MO127318/XXXXX-, (467832) |
| 2 | Valve seat, intake | 467474 | 6 | Std |
| 2 | Valve seat, intake | 467590 | 6 | 0.20mm o.s |
| 3 | Valve seat, exhaust | 467475 | 6 | Std |
| 3 | Valve seat, exhaust | 467591 | 6 | 0.20mm o.s |
| 4 | Valve guide, intake | 467029 | 6 | |
| 5 | Valve guide, exhaust | 1545135 | 6 | (421297) |
| 6 | Copper sleeve kit | 467417 | 6 | |
| 7 | Sealing ring | 469205 | 6 | |
| 8 | Plug | 467365 | 12 | |
| 9 | Gasket | 468461 | 12 | |
| 10 | Pin | 950543 | 12 | |
| 11 | Inlet valve | 467861 | 6 | (469240) |
| 12 | Lock | 422017 | 6 | Replaced by 1545239., MO-124039/XXXXX |
| 12 | Exhaust valve | 467682 | 6 | MO124040/XXXXX- |
| 13 | Valve spring | 467334 | 12 | Late type |
| 14 | Valve spring | 467335 | 12 | Late type |
| 16 | Washer, lower | 467337 | 12 | MO-3130871/216681., Late type |
| 17 | Valve cotter | 402418 | 24 | |
| 17 | Valve cotter | 468305 | 24 | |
| 18 | Valve cap | 469365 | 12 | (417133) |
| 19 | Protecting ring | 469456 | 12 | Replaced by 1pc 829493, 1pc 833521, 1pc 957181., (466932) |
| 20 | Bearing bracket | 422018 | 6 | |
| 21 | Flange screw | 422428 | 12 | |
| 23 | Cap plug | 946778 | 12 | |
| 25 | Rocker arm | 422063 | 12 | |
| 26 | Bushing | 422066 | 12 | |
| 27 | Ball stud | 423058 | 12 | |
| 28 | Hexagon nut | 940175 | 12 | |
| 29 | Washer | 941488 | 12 | |
| 30 | Retaining ring | 914459 | 12 | |
| 31 | Sealing ring | 423139 | 6 | |
| 33 | Flange screw | 467918 | 24 | (422086) |
| 34 | Cover, lower | 423142 | 6 | |
| 35 | Gasket | 423145 | 6 | |
| 36 | Hexagon screw | 940159 | 12 | |
| 37 | Washer | 955894 | 12 | |
| 38 | Cover, upper, upper | 423143 | 5 | |
| 39 | Cover | 423144 | 1 | |
| 40 | Gasket | 423146 | 6 | |
| 41 | Hexagon screw | 955530 | 24 | |
| 42 | Gasket | 942580 | 24 | |
| 43 | Oil filler cap | 420292 | 1 | |
| 44 | Gasket | 940096 | 1 | |
| 45 | Plug | 941876 | 1 | |
| 46 | Gasket | 18666 | 1 | |
| 47 | Drain cock | 820436 | 1 | |
| 48 | Nipple | 942694 | 1 | Replaced by 1pc 831656, 1pc 462623. |
| 49 | Gasket | 957174 | 1 | Replaced by 1pc 831656, 1pc 462623. |
| 50 | Vent pipe | 821890 | 1 | Replaced by 1pc 831656, 1pc 462623. |
| 51 | Fitting nut | 954357 | 1 | |
| 52 | Fitting | 954365 | 1 | |
| 53 | Clamp | 942400 | 1 | |
| 54 | Hexagon screw | 940133 | 1 | |
| 55 | Washer | 940097 | 1 | |
| 56 | Pin | 950543 | 12 |
| Item | Part Name | Part No. |
| 13 | Valve spring 467334 | 467334 |
| Details | |
| Engine model | D100A, TD100A D100B D100BHC, D100BRC DH10A TAD1030G TAD1030GE TAD1030P TAD1031GE, TAD1032GE TD100AHC, TD100ARC TD100CHC TD100CRC TD100G-87 TD100G-87, TAD1030V, TWD1031VE, TAD1030VE TD1010G, TWD1010G TD1030ME, TWD1030ME THD102KD, THD102KB |
| Application | Cylinder Head Cylinder Head: A Cylinder Head: B Cylinder Head: C Cylinder Head: D |
| Specification | |
| Descriptions | Included in exchange unit cylinder head. Late type |
