Valve stem seal 1306630

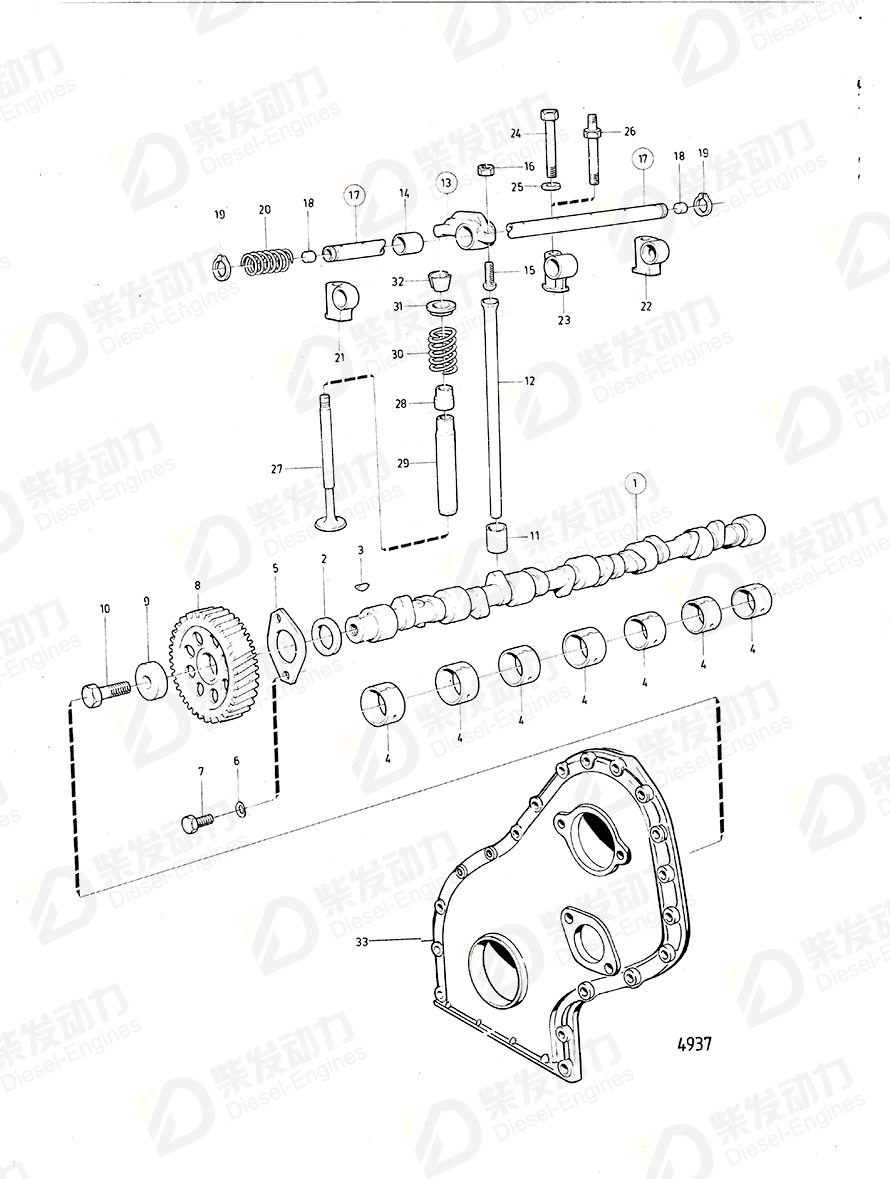

| No. | Part Name | Part Number | Qty | Description |
| 1 | Camshaft | 1542418 | 1 | |
| 2 | Spacer washer | 1542221 | 1 | |
| 3 | Woodruff key | 910116 | 1 | |
| 4 | Camshaft bushing | 1542067 | 7 | |
| 5 | Thrust washer | 838992 | 1 | |
| 6 | Spring washer | 941907 | 2 | |
| 7 | Hexagon screw | 955295 | 2 | |
| 8 | Gear | 1542034 | 1 | |
| 9 | Washer | 1542223 | 1 | |
| 10 | Hexagon screw | 970977 | 1 | (955347) |
| 11 | Valve tappet | 1542208 | 12 | |
| 12 | Push rod | 1545239 | 12 | |
| 13 | Rocker arm | 418298 | 6 | No 2-4-6-8 |
| 13 | Rocker arm | 418301 | 6 | No 1-3-5-7 |
| 14 | Bushing | 418297 | 12 | |
| 15 | Ball stud | 418286 | 12 | |
| 16 | Hexagon nut | 921781 | 12 | |
| 17 | Rocker arm shaft | 1542039 | 1 | |
| 18 | Cap plug | 955083 | 2 | |
| 19 | Retaining ring | 914456 | 2 | |
| 20 | Compression spring | 411139 | 5 | |
| 21 | Bearing bracket | 1542041 | 1 | |
| 22 | Bearing bracket | 1542042 | 1 | |
| 23 | Bearing bracket | 1542043 | 1 | |
| 24 | Hexagon screw | 955304 | 4 | |
| 25 | Washer | 955894 | 4 | |
| 26 | Stud | 1542283 | 4 | |
| 27 | Exhaust valve | 1542038 | 6 | Repl by 1542389 |
| 27 | Exhaust valve | 1542389 | 6 | |
| 27 | Inlet valve | 1542472 | 6 | |
| 28 | Valve seal | 419702 | 6 | Repl by 1306630 |
| 28 | Valve stem seal | 1306630 | 6 | |
| 29 | Valve guide | 419653 | 12 | |
| 30 | Valve spring | 418737 | 12 | |
| 31 | Washer | 460181 | 12 | |
| 32 | Valve collet | 419643 | 24 |
| Item | Part Name | Part No. |
| 28 | Valve stem seal 1306630 | 1306630 |
| Details | |
| Engine model | TD30A TD31ACE TD40A |
| Application | Camshaft and Valve Mechanism Repair Kit Repair Kits |
| Specification | |
| Descriptions | (419702) |
