Valve stem seal 21501189

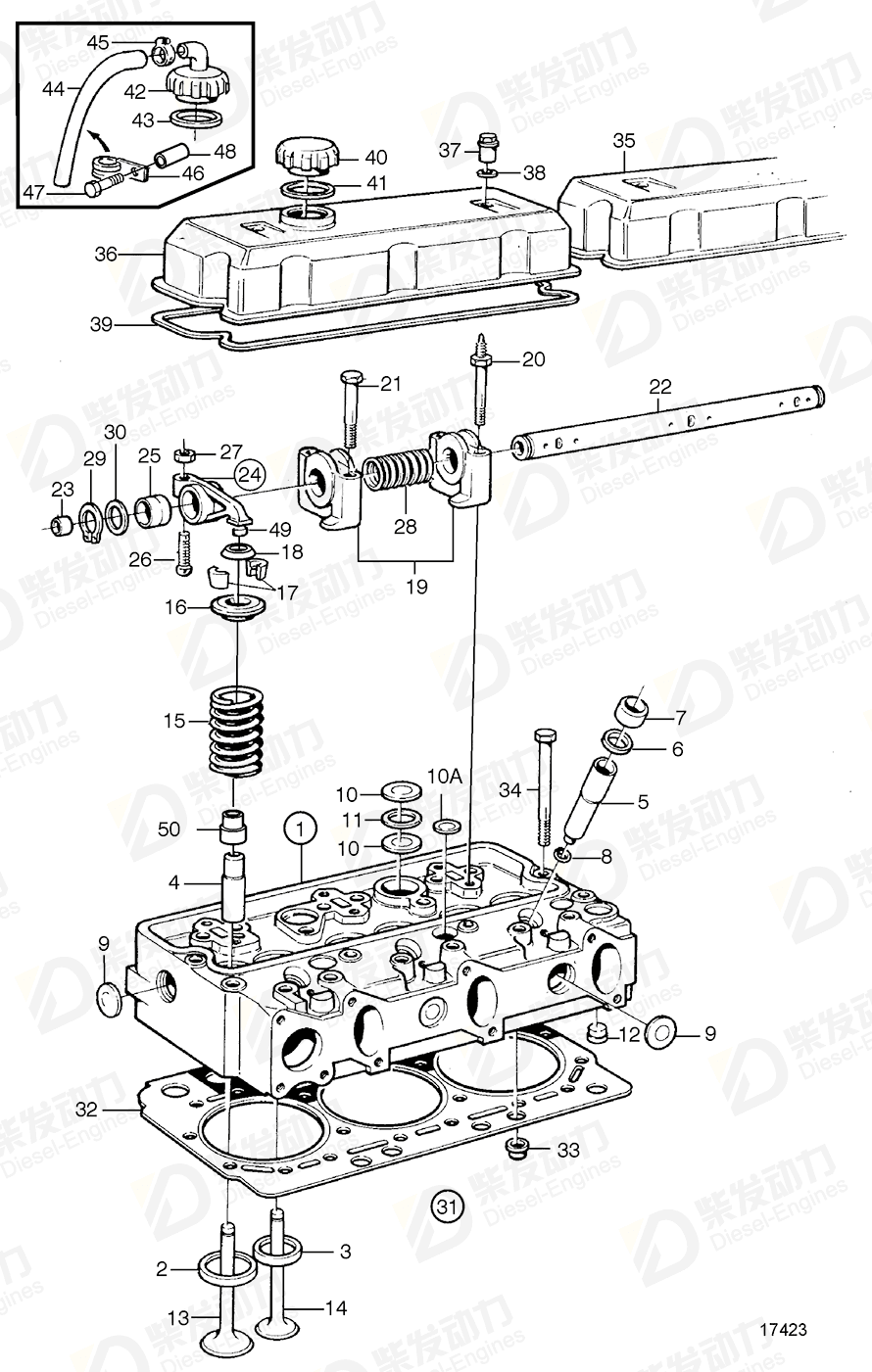

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803312 | 2 | (876828) |
| 2 | Valve seat, intake | 420874 | 6 | Std D |
| 2 | Valve seat, intake | 420876 | 6 | O.S |
| 3 | Valve seat, exhaust | 420875 | 6 | Std D |
| 3 | Valve seat, exhaust | 420877 | 6 | O.S |
| 4 | Valve guide | 477877 | 12 | (477792) |
| 5 | Sleeve | 877094 | 6 | (466404) |
| 6 | Sealing ring | 466405 | 6 | |
| 7 | Ring | 466420 | 6 | |
| 8 | O-ring | 466922 | 6 | (944124) |
| 9 | Expansion plug | 477024 | 8 | (192211) |
| 10 | Expansion plug | 477026 | 8 | (192426) |
| 11 | Gasket | 947626 | 4 | |
| 12 | Jet | 465420 | 4 | |
| 13 | Inlet valve | 3825723 | 6 | (420553) |
| 14 | Exhaust valve | 8192143 | 6 | (465549) |
| 15 | Valve spring | 465233 | 12 | |
| 16 | Valve spring washer | 465550 | 12 | |
| 17 | Valve cotter | 1677875 | 24 | |
| 18 | Ring | 465551 | 12 | |
| 19 | Bearing bracket | 1665204 | 6 | |
| 20 | Stud | 471512 | 4 | |
| 21 | Flange nut | 471513 | 8 | |
| 22 | Rocker arm shaft | 465790 | 2 | |
| 23 | Cap plug | 955083 | 4 | |
| 24 | Rocker arm | 420129 | 6 | |
| 24 | Rocker arm | 420132 | 6 | |
| 25 | Bushing | 420125 | 12 | |
| 26 | Ball stud | 422993 | 12 | |
| 27 | Hexagon nut | 940175 | 12 | |
| 28 | Compression spring | 411139 | 4 | |
| 29 | Retaining ring | 914456 | 4 | |
| 30 | Shim | 400722 | 4 | |
| 31 | Cylinder head gasket | 276821 | 2 | |
| 33 | Sealing ring | 422413 | 2 | D=11mm |
| 33 | Sealing ring | 465784 | 12 | |
| 33 | Sealing ring | 466421 | 16 | D=16mm |
| 34 | Flange screw | 465840 | 40 | |
| 35 | Valve cover | 465951 | 2 | |
| 36 | Valve cover | 465950 | 2 | Alt |
| 37 | Cap nut | 465961 | 4 | |
| 38 | Sealing ring | 471856 | 4 | |
| 39 | Gasket | 465952 | 2 | |
| 40 | Oil filler cap | 421753 | 1 | |
| 41 | Gasket | 1275379 | 1 | |
| 42 | Breather cap | 3829571 | 1 | For engine, 40° inclination. |
| 43 | Gasket | 1275379 | 1 | |
| 44 | Hose | 844508 | 1 | For engine,40° inclanation. |
| 45 | Hose clamp | 943473 | 1 | |
| 46 | Clamp | 952637 | 1 | D = 25.4 MM LATE TYPE |
| 47 | Flange screw | 965183 | 1 | |
| 48 | Spacer sleeve | 807425 | 1 | L=24mm |
| 49 | Valve cap | 477449 | 12 | |
| 50 | Valve stem seal | 21501189 | 12 | |
| 10A | Expansion plug | 477026 | 6 | (192426) |
| Item | Part Name | Part No. |
| 50 | Valve stem seal 21501189 | 21501189 |
| Details | |
| Engine model | TD630VE TWD630VE |
| Application | Cylinder Head: A Cylinder Head: B |
