Vibration damper 20412424

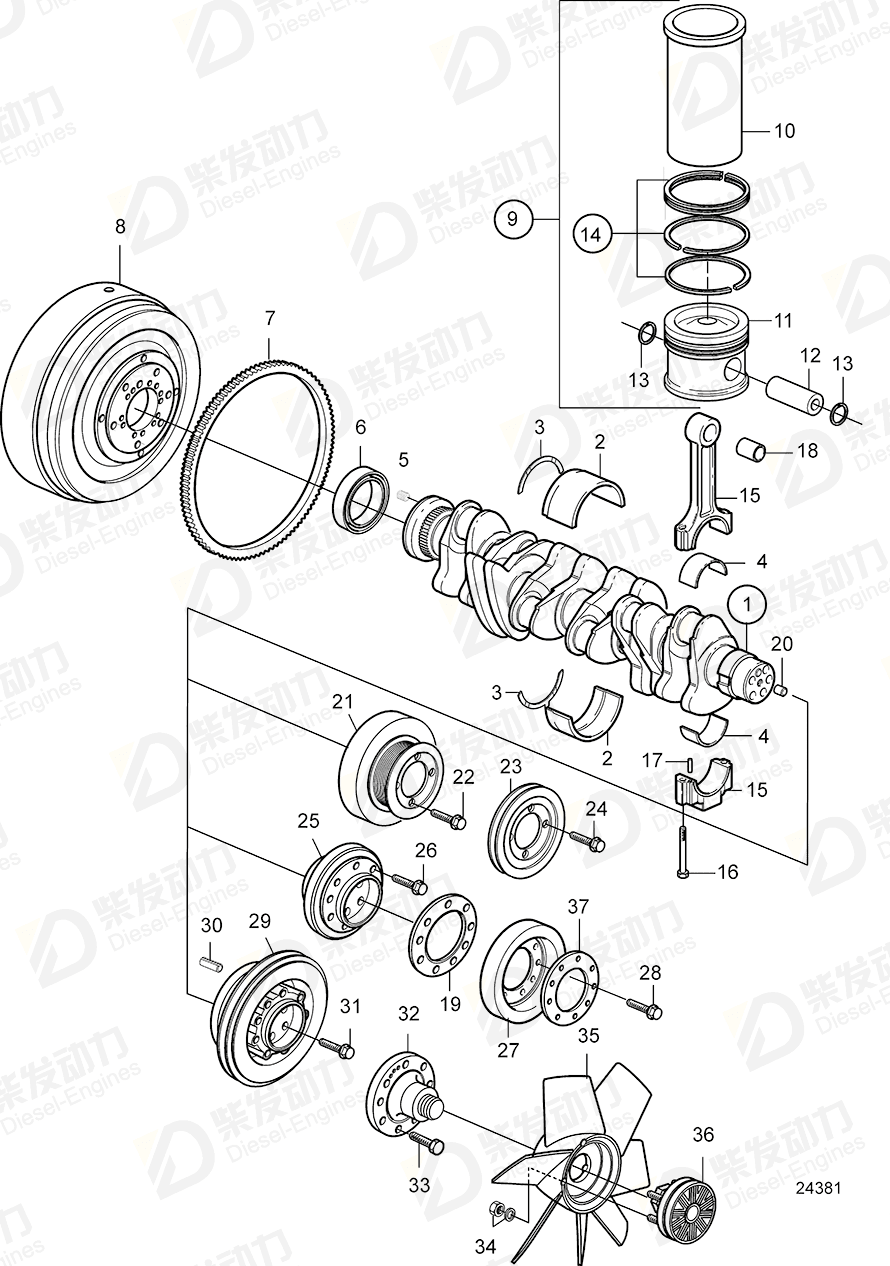

| No. | Part Name | Part Number | Qty | Description |
| 1 | Crankshaft | 20459146 | 1 | |
| 1 | Crankshaft | 20769707 | 1 | SN01099384- |
| 1 | Crankshaft | 21351400 | 1 | SN5310816422- |
| 2 | Main bearing | 20459140 | 7 | Std |
| 3 | Thrust washer kit | 20459149 | 2 | Std |
| 4 | Bearing | 20459147 | 6 | U.S=0.25mm |
| 4 | Bearing | 20480536 | 6 | Std, (20459141) |
| 5 | Insert | 20459144 | 1 | |
| 6 | Crankshaft seal | 21628356 | 1 | |
| 9 | Cylinder liner kit | 877458 | 6 | |
| 12 | Gudgeon pin | 20460009 | 6 | |
| 13 | Snap ring | 21159226 | 12 | |
| 14 | Piston ring kit | 20460011 | 6 | |
| 15 | Connecting rod | 20459132 | 6 | Replaced by 20492639 |
| 15 | Connecting rod | 20492639 | 6 | Replaced by 20768518 |
| 15 | Connecting rod | 20768518 | 1 | Replaced by 20882905 |
| 15 | Connecting rod | 20882905 | 1 | |
| 16 | Flange screw | 20459133 | 12 | |
| 17 | Grooved pin | 20459134 | 12 | |
| 18 | Bushing | 20523284 | 6 | |
| 19 | Flange plate | 21022723 | 1 | For 20585446 |
| 20 | Spring pin | 20405634 | 1 | 18X24 |
| 21 | Pulley | 20490934 | 1 | For fan at separate fan bracket., Crankshaft mounted., Vibration damper is integrated in V-ribbed belt pully. |
| 22 | Six point screw | 20405724 | 4 | |
| 23 | Pulley | 20459155 | 1 | Pully for air conditioning drive. |
| 24 | Hexagon screw | 20459156 | 4 | |
| 25 | Pulley | 24426687 | 1 | Without fan and for fan mounted on crankshaft, For alternator high right mounted., (20511562) |
| 26 | Six point screw | 20405724 | 4 | |
| 27 | Vibration damper | 20412424 | 1 | Replaced with 20585446, 21022723 and 970947, other radiator (normal air temperature)., Twin vibration damper (248x32, 280x40), (280x40) |
| 27 | Vibration damper | 20585446 | 1 | Replaced by 21165424, Mount with 21022723 and 970947 |
| 27 | Vibration damper | 21165424 | 1 | Mount with 21022723 and 970947 |
| 28 | Flange screw | 975108 | 9 | L=20mm |
| 28 | Flange screw | 995717 | 9 | for 21165424 |
| 29 | Pulley | 20515162 | 1 | Without fan and for fan mounted on crankshaft, For left side mounted generator, (20460198) |
| 30 | Spring pin | 20405634 | 1 | 18X24 |
| 31 | Six point screw | 20405724 | 4 | |
| 37 | Flange plate | 21022723 | 1 | For 20585446 |
| Item | Part Name | Part No. |
| 27 | Vibration damper 20412424 | 20412424 |
| Details | |
| Engine model | TAD620VE TAD720GE TAD720VE |
| Application | Crank Mechanism Crank Mechanism SN-779906 Stage 2, Tier 2 Crank Mechanism SN1058414- Stage 2, Tier 2 Crank Mechanism SN779907- Stage 2, Tier 2 Crank Mechanism Stage 1, Tier 1 |
| Specification | |
| Descriptions | Replaced with 20585446, 21022723 and 970947 Replaced with 20585446, 21022723 and 970947, other radiator (normal air temperature)., Twin vibration damper (248x32, 280x40), (280x40) With or without visko-clutch mounted on crankshaft., Std |
