Vibration damper 8193930

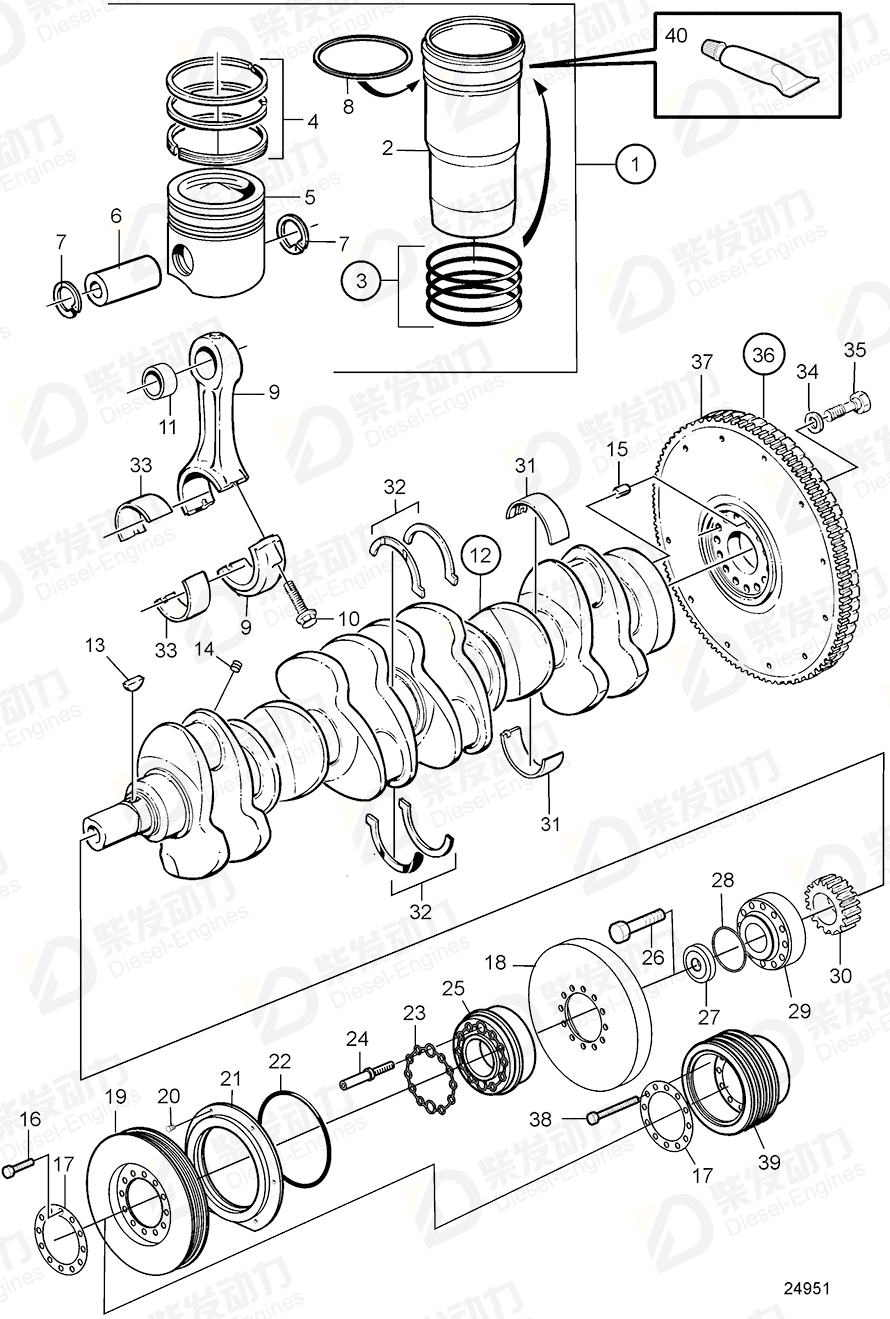

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 20820358 | 6 | |
| 3 | Gasket kit | 270950 | 1 | |
| 4 | Piston ring kit | 20820363 | 1 | |
| 6 | Gudgeon pin | 3155115 | 1 | |
| 7 | Snap ring | 914530 | 2 | |
| 8 | Shim | 1677591 | 1 | TH=0,2mm |
| 8 | Shim | 1677592 | 1 | TH=0,3mm |
| 8 | Shim | 1677593 | 1 | TH=0,5mm |
| 9 | Connecting rod, classifiable | 3835339 | 6 | (3184823) |
| 9 | Connecting rod | 3849405 | 6 | |
| 9 | Connecting rod | 20412200 | 6 | |
| 10 | Flange screw | 1543035 | 2 | |
| 11 | Bushing | 20381185 | 1 | |
| 12 | Crankshaft | 20533078 | 1 | |
| 12 | Crankshaft | 20533089 | 1 | |
| 12 | Crankshaft, classifiable | 20538850 | 1 | (3832928) |
| 13 | Woodruff key | 422253 | 1 | |
| 14 | Plug | 978130 | 6 | |
| 15 | Pin | 950645 | 1 | |
| 16 | Hexagon screw | 963254 | 10 | |
| 17 | Washer | 8193962 | 1 | |
| 18 | Vibration damper | 8193930 | 1 | |
| 19 | Pulley | 11127304 | 1 | |
| 20 | Flange screw | 946440 | 6 | |
| 21 | Sealing ring | 40005678 | 1 | |
| 22 | O-ring | 3832906 | 1 | |
| 23 | Sealing ring | 3827530 | 1 | |
| 24 | Screw | 3595265 | 2 | |
| 25 | Companion flange | 21243814 | 1 | |
| 26 | Screw | 1543316 | 1 | |
| 27 | Washer | 422124 | 1 | |
| 28 | O-ring | 945512 | 1 | |
| 29 | Hub | 1549407 | 1 | |
| 30 | Gear | 8170192 | 1 | |
| 31 | Main bearing kit | 20530916 | 7 | |
| 31 | Main bearing kit | 20578624 | 7 | U.S=0.25mm, (276616) |
| 31 | Main bearing kit | 20578625 | 7 | U.S=0.50mm, (276617) |
| 31 | Main bearing kit | 20578626 | 7 | U.S=0.75mm, (276618) |
| 31 | Main bearing kit | 20578627 | 7 | U.S=1.00mm, (276619) |
| 31 | Main bearing kit | 20578628 | 7 | U.S=1.25mm, (276620) |
| 32 | Thrust washer kit | 3093651 | 1 | |
| 32 | Thrust washer kit | 3093652 | 1 | O.S=0,1mm |
| 32 | Thrust washer kit | 3093653 | 1 | O.S=0,20mm (276793) |
| 33 | Big-end bearing shel | 276134 | 6 | Std |
| 33 | Big-end bearing shel | 276135 | 6 | U.S=0.25mm |
| 33 | Big-end bearing shel | 276136 | 6 | U.S=0.50mm |
| 33 | Big-end bearing shel | 276137 | 6 | U.S=0.75mm |
| 33 | Big-end bearing shel | 276334 | 6 | U.S=1.00mm |
| 33 | Big-end bearing shel | 276349 | 6 | U.S=1.25mm |
| 34 | Washer | 1543563 | 14 | |
| 35 | Hexagon screw | 1677893 | 14 | |
| 36 | Flywheel | 3841339 | 1 | (866380) |
| 37 | Ring gear | 20711957 | 1 | |
| 38 | Hexagon screw | 970893 | 10 | |
| 39 | Pulley | 3826640 | 1 | |
| 40 | Sealant | 1161231 | 1 | 304ml |
| 40 | Sealant | 1161277 | 1 | 20g |
| Item | Part Name | Part No. |
| 18 | Vibration damper 8193930 | 8193930 |
| Details | |
| Engine model | TAD1240GE TAD1241GE, TAD1242GE TAD1241VE, TAD1242VE TAD1250VE, TAD1251VE, TAD1252VE TAD1630V, TWD1630V TD164KAE TWD1240VE TWD1620G TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1630G, TAD1630G, TAD1631G, TAD1631GE |
| Application | Crank Mechanism Crank Mechanism SN1012631189- SN-1012645018 Crank Mechanism SN1012645019- Crank Mechanism: SN-2160022233 Crank Mechanism: SN2160022234- |
| Specification | |
| Descriptions | (1543834) |
Tags: Vibration damper, Volvo Penta, 8193930
