Washer 11978

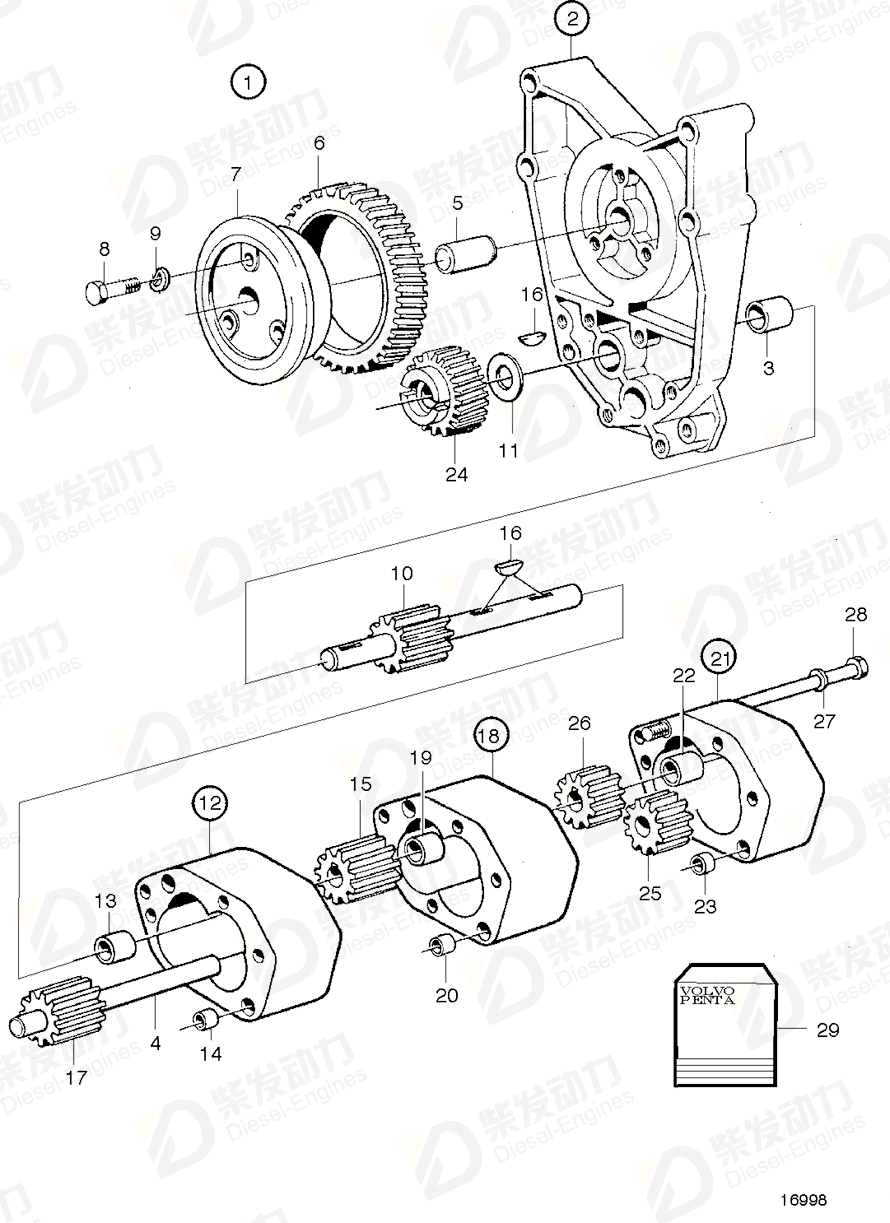

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 425175 | 1 | For THD102KB |
| 2 | Bracket | 469717 | 1 | |
| 3 | Bushing | 470347 | 1 | |
| 4 | Pin | 469720 | 1 | |
| 5 | Pin | 191171 | 1 | |
| 6 | Idler gear | 425075 | 1 | |
| 7 | Bearing sleeve | 422313 | 1 | |
| 8 | Hexagon screw | 940186 | 3 | |
| 9 | Spring washer | 941907 | 3 | |
| 11 | Washer | 470357 | 1 | Included in repair kit 276157 and 276158. |
| 12 | Oil pump housing | 469724 | 1 | |
| 13 | Bushing | 469681 | 1 | |
| 14 | Guide sleeve | 401146 | 2 | |
| 16 | Key | 469730 | 3 | Included in repair kit 3097108., Included in repair kit 276157 and 276158. |
| 18 | Oil pump housing | 469726 | 1 | |
| 19 | Bushing | 469681 | 1 | |
| 20 | Guide sleeve | 401146 | 2 | |
| 21 | Oil pump housing | 469728 | 1 | |
| 22 | Bushing | 470347 | 1 | |
| 23 | Guide sleeve | 401146 | 2 | |
| 24 | Gear | 424917 | 1 | |
| 27 | Washer | 11978 | 2 | |
| 28 | Hexagon screw | 944446 | 2 | |
| 29 | Repair kit | 276157 | 1 | See group 99 |
| Item | Part Name | Part No. |
| 27 | Washer 11978 | 11978 |
| Details | |
| Engine model | TD1010G, TWD1010G TD30A |
| Application | Lubricating System Oil Pump, Components Oil Pump, Components: 1545119 Oil Pump, Components: 425169 Oil Pump, Components: 425175 Oil Pump, Components: 425242 Oil Pump, Components: 479319 |
