Washer 190509

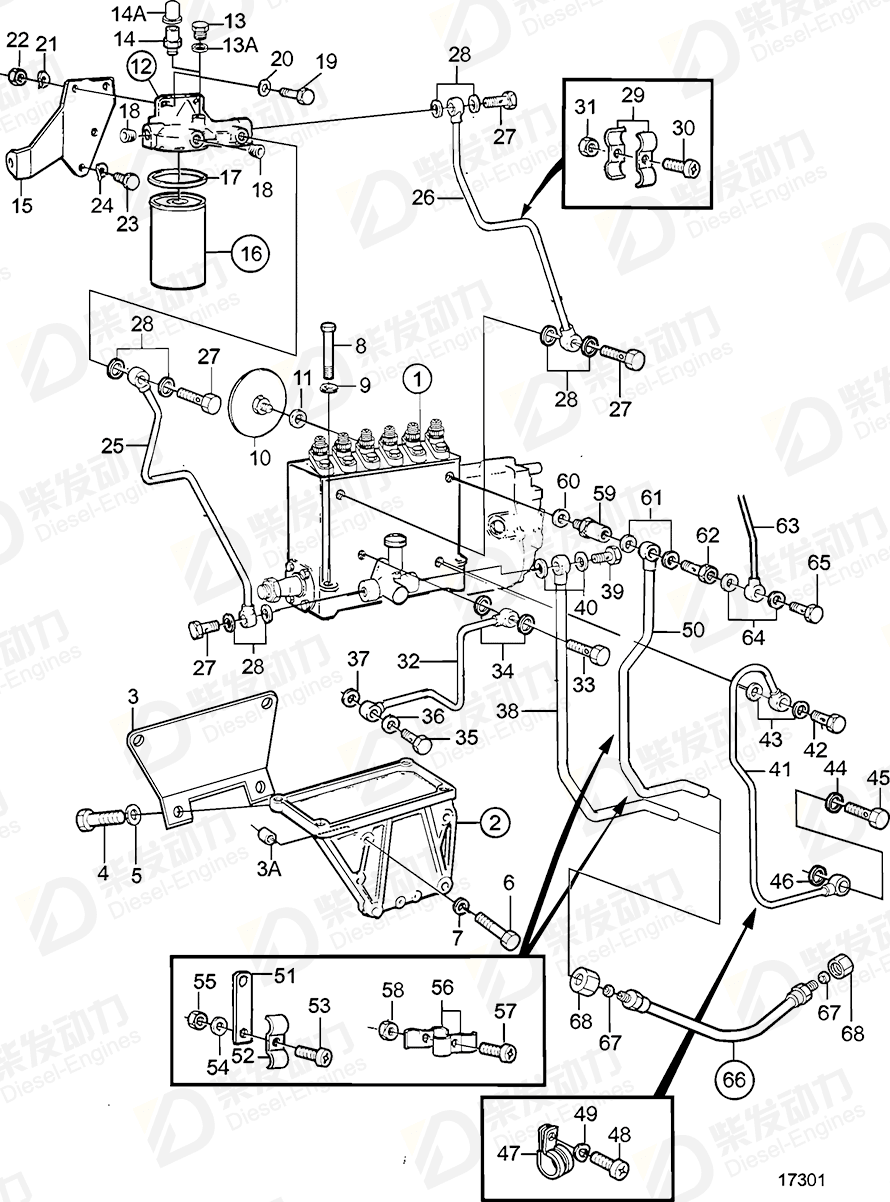

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 865850 | 1 | Repl by 3828997 |
| 1 | Injection pump | 3803750 | 1 | E.U=3803750 |
| 1 | Injection pump | 3828997 | 1 | E.U=3803750 |
| 2 | Bracket | 479809 | 1 | |
| 4 | Hexagon screw | 479696 | 2 | |
| 5 | Washer | 940097 | 2 | |
| 6 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 7 | Spring washer | 940280 | 4 | |
| 8 | Hexagon screw | 940156 | 4 | |
| 9 | Washer | 190509 | 4 | |
| 10 | Pressure equalizer | 477173 | 1 | (466398) |
| 11 | Gasket | 969011 | 1 | |
| 12 | Housing | 1676832 | 1 | Repl by 8194541 |
| 12 | Fuel filter housing | 8194541 | 1 | |
| 13 | Hollow screw | 471177 | 1 | |
| 14 | Faucet | 20548012 | 1 | |
| 15 | Bracket | 476438 | 1 | |
| 16 | Fuel filter | 3825133 | 2 | |
| 17 | Gasket | 6638088 | 2 | |
| 18 | Plug | 968062 | 3 | |
| 19 | Hexagon screw | 940162 | 1 | MO-XXXXX/105194 |
| 19 | Hexagon screw | 955536 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 20 | Washer | 960142 | 2 | Replaced by 1 PC 843512,1 ST 191026. |
| 21 | Spring washer | 942336 | 3 | |
| 22 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 23 | Hexagon screw | 940114 | 2 | |
| 24 | Spring washer | 942336 | 2 | |
| 25 | Fuel pipe | 468480 | 1 | |
| 26 | Tube | 468481 | 1 | |
| 27 | Hollow screw | 25167 | 4 | |
| 28 | Gasket | 969011 | 8 | |
| 29 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 30 | Cross recessed screw | 950047 | 1 | |
| 31 | Hexagon nut | 955825 | 1 | Late type |
| 32 | Oil pressure pipe | 866615 | 1 | |
| 33 | Hollow screw | 48634 | 1 | |
| 34 | Gasket | 947281 | 2 | |
| 35 | Hollow screw | 942081 | 1 | |
| 36 | Gasket | 11994 | 1 | |
| 37 | Gasket | 18666 | 1 | |
| 38 | Fuel pipe | 865760 | 1 | |
| 39 | Hollow screw | 25167 | 1 | |
| 3A | Guide sleeve | 423161 | 2 | |
| 40 | Gasket | 969011 | 2 | |
| 41 | Oil return pipe | 478964 | 1 | |
| 42 | Hollow screw | 48634 | 1 | |
| 43 | Gasket | 947281 | 2 | |
| 44 | Gasket | 11998 | 1 | |
| 45 | Hollow screw | 942007 | 1 | (954394) |
| 46 | Gasket | 942703 | 1 | |
| 47 | Clamp | 952623 | 1 | |
| 48 | Cross recessed screw | 950045 | 1 | |
| 49 | Spring washer | 941906 | 1 | |
| 50 | Fuel pipe | 866933 | 1 | |
| 51 | Bracket | 965545 | 1 | |
| 52 | Attaching clamp | 404279 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 53 | Cross recessed screw | 950048 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 54 | Washer | 955893 | 1 | |
| 55 | Hexagon nut | 955825 | 1 | Late type |
| 56 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 57 | Cross recessed screw | 950047 | 1 | |
| 58 | Hexagon nut | 955825 | 1 | Late type |
| 59 | Overflow valve | 3825154 | 1 | |
| 60 | Gasket | 15304 | 1 | |
| 61 | Gasket | 969011 | 2 | |
| 62 | Hollow screw | 16496 | 1 | |
| 64 | Gasket | 947620 | 1 | (233321) |
| 65 | Hollow screw | 74033 | 1 | |
| 66 | Fuel hose | 865737 | 2 | |
| 67 | Ferrule | 956969 | 4 | |
| 68 | Fitting nut | 956983 | 4 | |
| 13A | Gasket | 947620 | 1 | (233321) |
| Item | Part Name | Part No. |
| 9 | Washer 190509 | 190509 |
| Details | |
| Engine model | D100A D100B D100BHC D100BRC D120A D70B D70CHC D70CRC DH10A TAD1030G TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1030V TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TAD1630G, TAD1630GE TAD1630P TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD1630V TAD1630V, TWD1630V TAD1631G, TAD1631GE TAD730G TAD730P TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD100G TD100G-85 TD100G-87 TD100GG TD100GG-85 TD100GG-87 TD100GP TD100GP-85 TD100HP-87 TD1010G, TWD1010G TD1030ME TD1030VE TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD120HP-86 TD120HPP TD1210G TD121CHC TD121CRC TD121G TD121G-87 TD121GG TD121GG-86 TD121GG-87 TD121GGP-87 TD121GP-87 TD121GPB-87 TD164KAE TD70B TD70CHC TD70CRC TD70G TD70G-83 TD710G TD71A TD71A, TID71A, TWD710V, TAD730V TD71ACE TD71AG TD71AP TD71AW TID100K TID100K-87 TID100KG TID100KG-87 TID100KGP-87 TID100KP TID100KP-87 TID100KPB-87 TID120FG TID120HPP TID121FG TID121K TID121K-87 TID121KG TID121KG-87 TID121KGP TID121KP TID121KP-87 TID121KPB-87 TID121L-87 TID121LG TID121LG-87 TID121LGP-87 TID121LP TID121LP-87 TID121LPB-87 TID162AG, TID162AGP TID162AG, TID162AGP, TID162AP, TID162APB TID162AP, TID162APB TID70G TID71A TID71AG TID71AP TWD1030ME TWD1031VE TWD1210G TWD1210P TWD1210V TWD1211G TWD1211P TWD1211V TWD1230ME TWD1230VE TWD1231VE TWD1620G TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TWD1630G TWD1630P TWD1630V TWD1644GE, TWD1645GE TWD1672GE, TWD1673GE TWD630ME TWD710G TWD710P TWD730ME |
| Application | After Cooler and Installation Components Classed Fuel System, Spec.867108, 867153: A Classed Fuel System, Spec.867108, 867153: B Classed Fuel System, Spec.9902, 9879 Earlier Prod: A Classed Fuel System, Spec.9902, 9879 Earlier Prod: TD100AA Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: A Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: B Classed Fuel System, Spec.9902, 9879 Later Prod Spec.867019: C Classed Fuel System: A Classed Fuel System: B Exhaust Pipe Fuel Injection Pump and Fuel Filter Fuel Injection Pump and Fuel Filter. Standard Fuel System Fuel Injection Pump and Fuel Filter: A Fuel Injection Pump and Fuel Filter: B Fuel Injection Pump and Fuel Filter: C Fuel Injection Pump and Fuel Inj.Pump Coupling. Spec.867578 Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option. Fuel Injection Pump, Fuel Filter and Shut-off Valve. Standard Fuel System Fuel System Excl.Spec.S5175/497250 D100A: A Fuel System Excl.Spec.S5175/497250 D100A: B Fuel System Excl.Spec.S5175/497250 D100A: C Fuel System MO46197/XXXXX-: A Fuel System MO46197/XXXXX-: B Fuel System Spec.S5175/497250 Fuel System with Electronic Speed Control Fuel System with Fuel Shut-offValve Fuel System, Classed Engine, Spec.867053, MO46197/XXXXX- Fuel System, Classed Engine, Spec.867117 Fuel System, SN1201090022- Fuel System, Standard Model Fuel System, Standard Model: A Fuel System, Standard Model: B Fuel System: 846359 Fuel System: 862183 Fuel System: 863451 FUEL SYSTEM: A FUEL SYSTEM: B FUEL SYSTEM: C FUEL SYSTEM: D Fuel System: TD100GGP-87 Fuel System: TD100HPB87 Fuel System: TD71AGP Fuel System: TD71APB FUEL SYSTEM: TID121FP Fuel System: TID71AGP Fuel System: TID71APB Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: C Injection Pump, Fuel Filter and EDC Control Unit Injection Pump, Fuel Filter and Shut-off Valve Radiator and Installation Components: A Radiator and Installation Components: B Radiator and Metal Fan Radiator and Plastic Fan Radiator and Plastic Fan, SN-2160048211 Radiator and Plastic Fan, SN2160048211- |
