Washer 192404

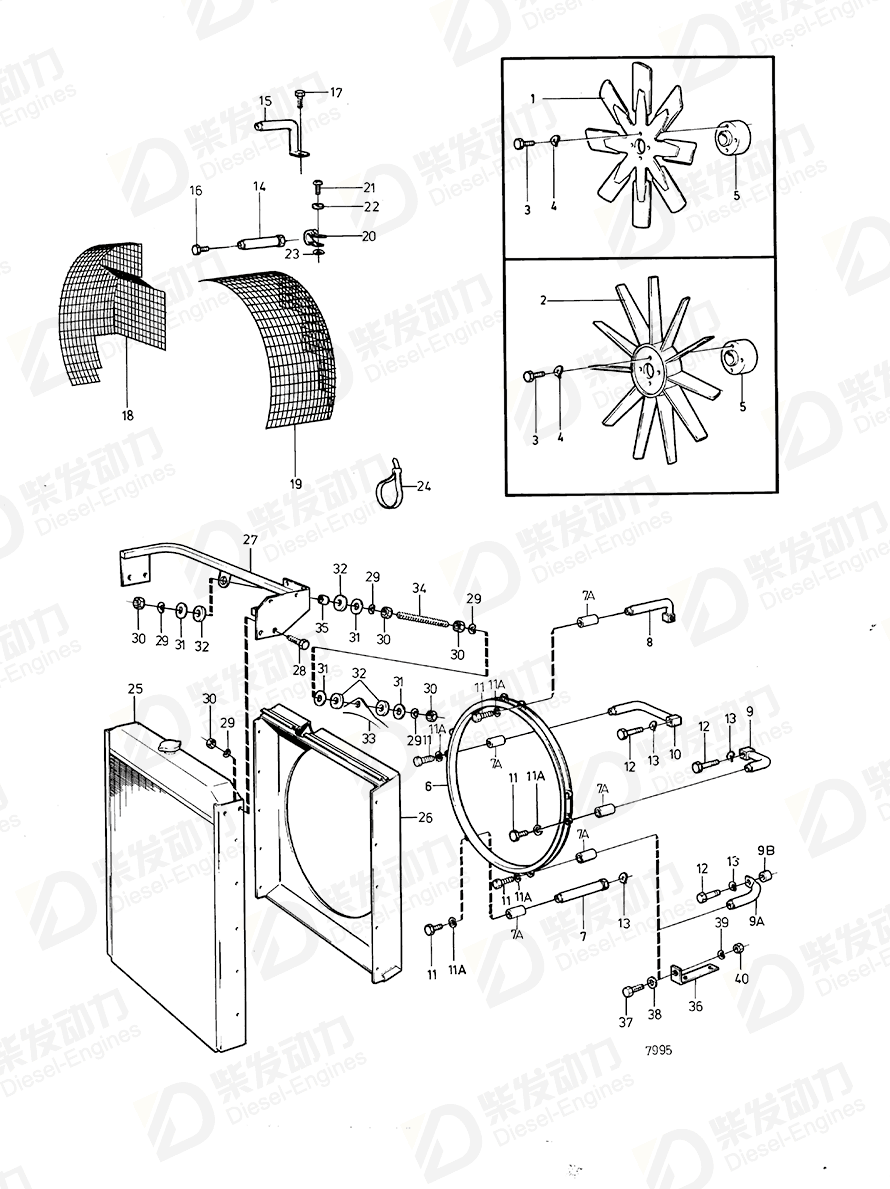

| No. | Part Name | Part Number | Qty | Description |
| 1 | Fan | 843517 | 1 | Åkerman spec. 867454., D70B spec. 867055, 867056, 867057 MOXXXXX/6622-. D70B spec. 867061, 867063, 867277. TD70B spec. 867065. D70B spec. 867059, 867260 alt. D70BK alt., D=620mm |
| 1 | Fan, suction type | 844121 | 1 | Åkerman D=620mm |
| 2 | Fan | 823716 | 1 | Spec. 867221., MD70BK spec 867116 MOXXXX/9685-, D=620mm |
| 2 | Fan | 843563 | 1 | Spec. 867221., D70B spec. 867062, 867221, 867259, 867260, 867278. TD70B spec 867065 alt. D70BK alt., D=620mm |
| 3 | Hexagon screw | 940136 | 4 | |
| 3 | Hexagon screw | 940186 | 4 | |
| 3 | Hexagon screw | 955526 | 4 | MD70BK spec 867116 MOXXXX/9685- |
| 4 | Spring washer | 941907 | 4 | |
| 5 | Spacer ring | 843839 | 1 | |
| 5 | Spacer ring | 843840 | 1 | L=37mm, for 865913 |
| 5 | Spacer ring | 844601 | 1 | MD70BK spec 867116 MOXXXX/9685- |
| 6 | Fan ring | 843694 | 1 | |
| 7 | Anchorage | 844682 | 1 | |
| 8 | Anchorage | 845190 | 1 | (843402) |
| 9 | Anchorage | 845002 | 1 | (843404) |
| 10 | Anchorage | 844674 | 1 | |
| 11 | Hexagon screw | 940186 | 5 | |
| 11 | Flange screw | 942402 | 5 | |
| 12 | Hexagon screw | 940136 | 2 | |
| 12 | Hexagon screw | 955541 | 1 | |
| 12 | Hexagon screw | 963583 | 1 | L=40mm |
| 13 | Spring washer | 941907 | 3 | |
| 14 | Anchorage | 843406 | 1 | Alt |
| 15 | Anchorage | 845410 | 1 | |
| 16 | Flange screw | 942402 | 1 | |
| 17 | Hexagon screw | 955320 | 1 | |
| 18 | Safety net | 844731 | 1 | |
| 19 | Safety net | 844732 | 1 | |
| 20 | Clamp | 952632 | 14 | Late type |
| 21 | Cross recessed screw | 956095 | 14 | |
| 22 | Washer | 192404 | 14 | |
| 23 | Washer | 960139 | 14 | MO201374/XXXXX- |
| 24 | Cable tie | 948210 | 20 | (827353) |
| 25 | Radiator | 844090 | 1 | 3''repl by 863799 |
| 26 | Fan shroud | 844061 | 1 | |
| 27 | Bracket | 845399 | 1 | |
| 28 | Hexagon screw | 955294 | 4 | |
| 29 | Spring washer | 941907 | 8 | |
| 30 | Hexagon nut | 955782 | 8 | |
| 31 | Washer | 418531 | 4 | |
| 32 | Rubber bushing | 403877 | 4 | |
| 33 | Attaching lug | 845396 | 1 | |
| 34 | Control rod | 845404 | 1 | |
| 35 | Spacer sleeve | 403894 | 2 | |
| 36 | Anchorage | 845000 | 1 | TD70G PP |
| 37 | Hexagon screw | 955295 | 1 | |
| 38 | Washer | 960141 | 1 | |
| 39 | Spring washer | 941907 | 1 | |
| 40 | Hexagon nut | 955782 | 1 | |
| 7A | Spacer tube, spacer tube | 846364 | 5 | L=24mm |
| 9A | Anchorage | 846464 | 1 | (843702) early type |
| 9B | Spacer sleeve | 823497 | 1 | Late type |
| 11A | Spring washer | 941907 | 5 |
| Item | Part Name | Part No. |
| 22 | Washer 192404 | 192404 |
| Details | |
| Engine model | D100B, TD100A D100BRC, TD100ARC D70B D70CRC, TD70CRC TAD1030G TAD1230G, TD1210G, TWD1210G, TWD1211G TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TD100CRC TD100G TD100GG TD100GP TD1010G, TWD1010G TD1210G, TWD1210G TD121GGP, TID121KGP, TID121LGP TD121GGP-87 TD60A TD60B TD60D TD70G TID100KGP-87 TID121KGP TID121LGP TID60D TWD1211G |
| Application | Belt Guard Belt Guard, SN-2100277340 Belt Guard, SN-2120230579 Belt Protection, Earlier Production Fan, Fan- and Belt Protection with Installation Comp., Early Pr Fan, Fan- and Belt Protection with Installation Comp., Late Pro FAN, FAN- AND BELT PROTECTION WITH INSTALLATION COMPONENTS Fan, Fan-and Belt Guard with Installation Components Fan, Fan-and Belt Guard with Installation Components: A Fan, Fan-and Belt Guard with Installation Components: B Fan, Fan-and Belt Guard with Installation Components: C Fan, Fan-and Belt Protection with Installation Components Fan, Fan-and Belt Protection with Installation Components: A Fan, Fan-and Belt Protection with Installation Components: B Fan-and Belt Protection with Installation Comp, MOXXXXX/40848- Fan-and Belt Protection with Installation Comp. MOXXXXX/30308- Fan-and Belt Protection with Installation COMP.MOXXXXX/33072-: A RADIATOR AND FAN WITH INSTALLATION COMPONENTS Radiator and Fan with Installation Components, Gen Pac, Alt Radiator and Fan with Installation Components, Gen Pac, Alt: A Radiator and Fan with Installation Components, Gen Pac, Alt: B Radiator and Fan, SN-2120211549: A Radiator and Fan, SN-2120211549: B Radiator and Installation Comps. |
| Specification | |
| Descriptions | Alt Early type Late type |
