Washer 20460800

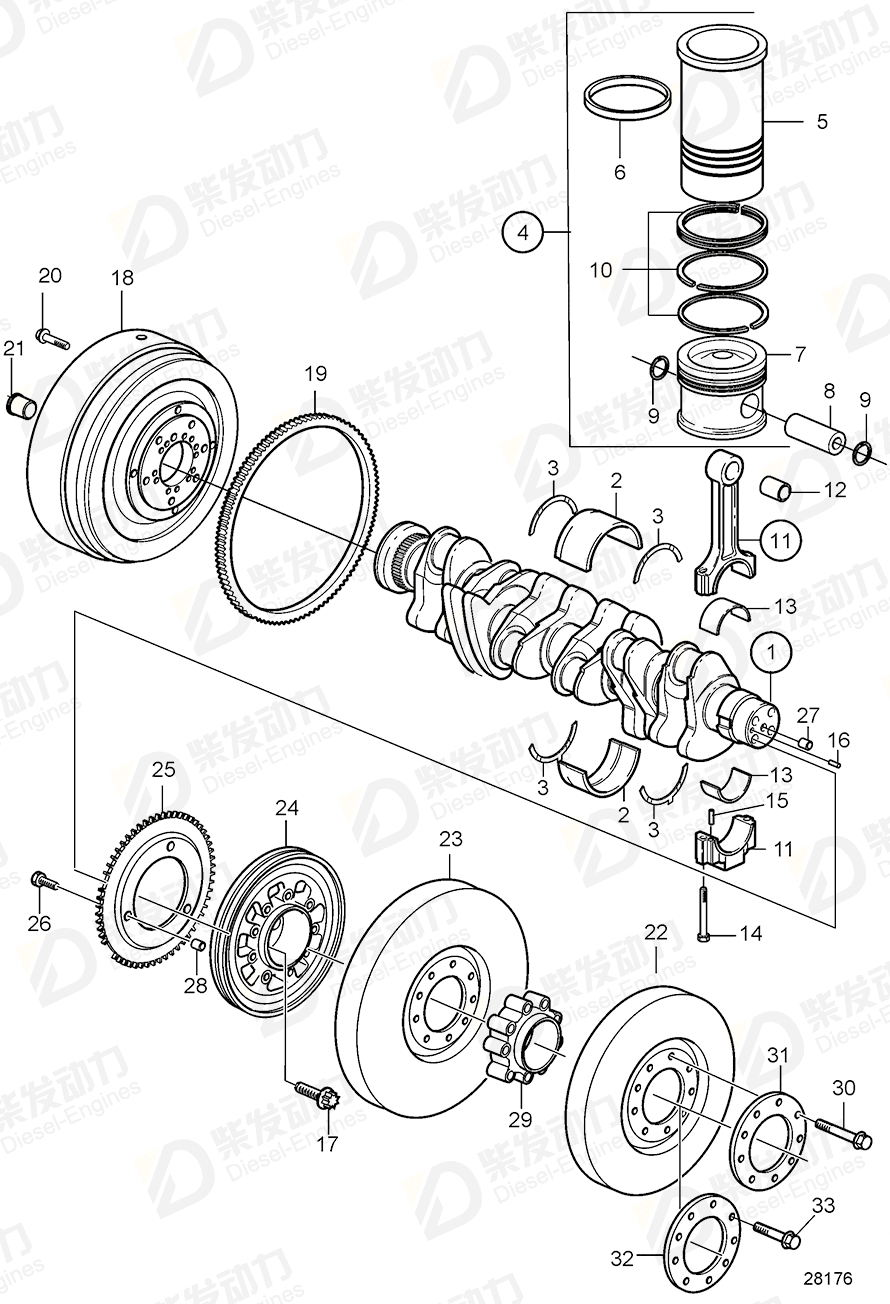

| No. | Part Name | Part Number | Qty | Description |
| 1 | Crankshaft | 21245957 | 1 | SN01099469- |
| 2 | Main bearing | 20405541 | 7 | U.S=0.50mm |
| 2 | Main bearing | 21141948 | 7 | Std |
| 2 | Main bearing | 21234191 | 7 | U.S=0,25mm, SN10594935- |
| 3 | Thrust washer | 21141955 | 1 | Std |
| 3 | Thrust washer | 21141963 | 1 | O.S=0.20mm (3.1mm) |
| 4 | Cylinder liner kit | 20865990 | 1 | |
| 6 | O-ring | 20412762 | 2 | |
| 8 | Gudgeon pin | 20405577 | 1 | |
| 9 | Stay | 21119637 | 2 | |
| 10 | Piston ring kit | 21299547 | 1 | |
| 11 | Connecting rod | 20585982 | 1 | |
| 12 | Bushing | 11700325 | 1 | |
| 13 | Bearing | 20766790 | 1 | Std, Only for 20585982 |
| 13 | Big-end bearing kit | 20790423 | 1 | U.S=0.25mm, Only for 20585982 |
| 13 | Big-end bearing kit | 20790428 | 1 | U.S=0.50mm, Only for 20585982 |
| 14 | Flange screw | 11700326 | 2 | |
| 15 | Grooved pin | 20459134 | 1 | |
| 16 | Grooved pin | 20450628 | 1 | |
| 17 | Six point screw | 20405724 | 4 | |
| 18 | Flywheel | 20459129 | 1 | 0,87 kgm² |
| 19 | Starter gear ring | 21033328 | 1 | |
| 20 | Hexagon screw | 20450835 | 10 | |
| 21 | Expansion plug | 20405643 | 5 | |
| 22 | Vibration damper | 21083252 | 1 | Only in combination with 21165424 |
| 23 | Vibration damper | 21165421 | 1 | Two vibration dampers as option |
| 23 | Vibration damper | 21165424 | 1 | Mount with 21022723 and 970947 |
| 24 | Pulley | 21665261 | 1 | |
| 25 | Lock washer | 20792423 | 1 | |
| 26 | Flange screw | 993357 | 3 | L=20mm |
| 27 | Spring pin | 20405634 | 1 | 18X24 |
| 28 | Spring pin | 20450838 | 1 | |
| 29 | Spacer | 20460799 | 1 | Twin vibration damper (248x32, 280x40) |
| 30 | Hexagon screw | 20460205 | 9 | |
| 31 | Washer | 20460800 | 1 | |
| 32 | Flange plate | 21022723 | 1 | For 20585446 |
| 33 | Flange screw | 995717 | 9 | for 21165424 |
| Item | Part Name | Part No. |
| 31 | Washer 20460800 | 20460800 |
| Details | |
| Engine model | TAD720GE TAD721GE, TAD722GE TAD730GE, TAD731GE TAD732GE, TAD733GE TAD750GE, TAD751GE |
| Application | Crank Mechanism Crank Mechanism SN-1058413 Stage 2, Tier 2 Crank Mechanism SN-779906 Stage 2, Tier 2 Crank Mechanism SN1058414- Stage 2, Tier 2 Crank Mechanism SN779907- Stage 2, Tier 2 Crank Mechanism Stage 1, Tier 1 Crank Mechanism Stage 2, Tier 2 |
