Washer 467773

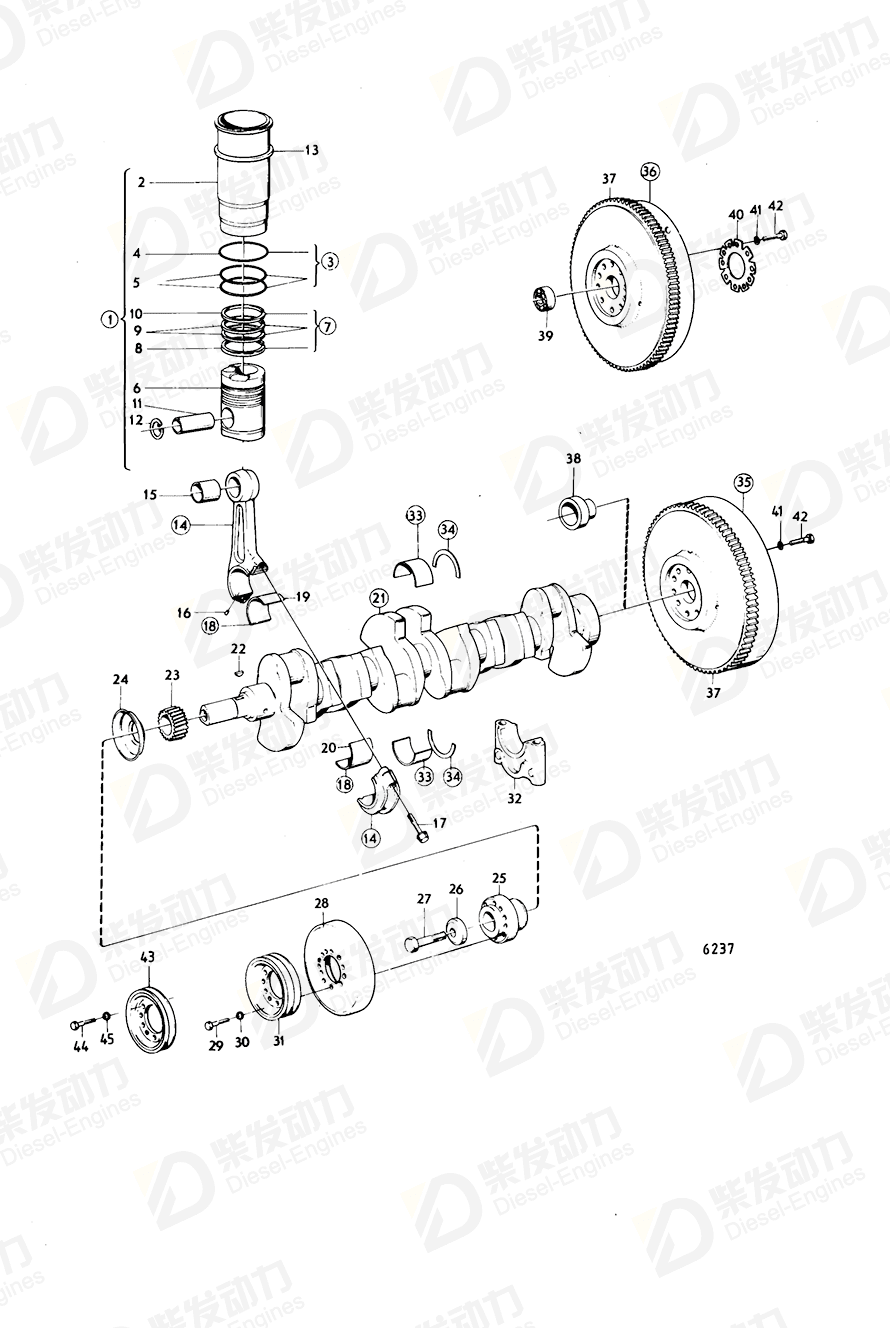

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder liner kit | 275627 | 6 | |
| 3 | Sealing ring kit | 271157 | 6 | |
| 7 | Piston ring kit | 275084 | 6 | |
| 11 | Gudgeon pin | 422344 | 6 | Std |
| 11 | Gudgeon pin | 422345 | 6 | 0.05mm o.s |
| 11 | Gudgeon pin | 422347 | 6 | 0.20mm o.s |
| 12 | Retaining ring | 417466 | 12 | |
| 13 | Adjusting washer | 422619 | 1 | TH=0.20mm |
| 13 | Adjusting washer | 422620 | 1 | TH=0.30mm |
| 13 | Adjusting washer | 422621 | 1 | TH=0.50mm |
| 14 | Connecting rod | 846731 | 6 | Classified |
| 15 | Bushing | 1545302 | 6 | |
| 17 | Flange screw | 1545479 | 12 | (417464) |
| 18 | Big-end bearing kit | 270124 | 6 | Std D |
| 18 | Big-end bearing kit | 270125 | 6 | 0,25mm u.s |
| 18 | Big-end bearing kit | 270126 | 6 | 0,50mm u.s |
| 18 | Big-end bearing kit | 270127 | 6 | U.S=0,75mm |
| 18 | Big-end bearing kit | 270128 | 6 | U.S=1,00mm |
| 18 | Big-end bearing kit | 270129 | 6 | U.S=1,25mm |
| 21 | Crankshaft | 848767 | 1 | SN-2100280596 |
| 22 | Woodruff key | 422253 | 1 | |
| 23 | Gear | 423080 | 1 | |
| 24 | Oil deflector | 423177 | 1 | |
| 25 | Hub | 470595 | 1 | |
| 26 | Washer | 422124 | 1 | |
| 27 | Hexagon screw | 941494 | 1 | |
| 28 | Vibration damper | 846645 | 1 | |
| 30 | Spring washer | 941909 | 12 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| 31 | Pulley | 843600 | 1 | Included in 826857. |
| 33 | Main bearing kit | 270438 | 7 | |
| 33 | Main bearing kit | 270439 | 7 | 0.25mm u.s |
| 33 | Main bearing kit | 270440 | 7 | 0.50mm u.s |
| 33 | Main bearing kit | 270441 | 7 | 0.75mm u.s |
| 33 | Main bearing kit | 270442 | 7 | 1.00mm u.s |
| 33 | Main bearing kit | 270443 | 7 | 1.25mm u.s |
| 34 | Thrust washer kit | 276758 | 1 | Std D |
| 34 | Thrust washer kit | 276759 | 1 | 0,10mm o.s |
| 34 | Thrust washer kit | 276760 | 1 | 0,20mm o.s |
| 34 | Thrust washer kit | 276761 | 1 | 0,30mm o.s |
| 35 | Flywheel | 814735 | 1 | For MB20 with fixed engine suspension. |
| 35 | Flywheel | 842144 | 1 | BB115B, AQ130C MO-16931/XXXX. BB115A MO-1470/XXXX., MO-29495 |
| 35 | Flywheel | 846700 | 1 | TD CO gear |
| 35 | Flywheel | 849328 | 1 | Clark |
| 35 | Flywheel, 10 hole | 864402 | 1 | |
| 35 | Flywheel | 864555 | 1 | ZF HN500 Conv |
| 36 | Flywheel | 422742 | 1 | Truck-LV spec 867925 |
| 36 | Flywheel | 821353 | 1 | AQ130C compression 8,4:1. |
| 37 | Ring gear | 420794 | 1 | For gear box Voith. |
| 38 | Bushing | 821223 | 1 | For MB20 with fixed engine suspension. |
| 38 | Bushing | 849326 | 1 | Clark |
| 38 | Bushing | 864557 | 1 | ZF HN500 Conv |
| 39 | Ball bearing | 1652989 | 1 | Truck-VP, Truck-LV |
| 40 | Lock washer | 422427 | 1 | AQ130C compression 8,4:1., MB20C, MB20A MO1401/XXXX-., AQ140A excl USA MO-7263/XXXX. AQ120B excl USA MO 903/XXXX. AQ140A USA MO-1400/XXXX. AQ120B USA MO-1705/XXXX., +truck |
| 41 | Washer | 467773 | 10 | |
| 42 | Hexagon screw | 941570 | 10 | |
| 43 | Pulley | 844591 | 1 | Late type |
| 43 | Pulley | 844615 | 1 | For BB115 with Volvo Penta reduction reverse gear. |
| 43 | Pulley | 845845 | 1 | Alt 6 groove |
| 44 | Hexagon screw | 955551 | 12 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 44 | Hexagon screw | 955552 | 12 | L=64mm |
| 45 | Spring washer | 941909 | 12 | AQ170B MOXXXX/87713-., BB170B MOXXXX/89353-. |
| Item | Part Name | Part No. |
| 41 | Washer 467773 | 467773 |
| Details | |
| Engine model | D100A D100B D100BHC D100BRC D120A DH10A TAD1030G TAD1030GE TAD1030P TAD1030V TAD1031GE TAD1032GE TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD100G TD100G-85 TD100G-87 TD100GG TD100GG-85 TD100GG-87 TD100GP TD100GP-85 TD100HPB-87 TD1010G, TWD1010G TD1030ME TD1030VE TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G, TD120GG TD120HP-86 TD120HPP TD1210G, TWD1210G TD121CHC TD121CRC TD121G TD121G-87 TD121GG TD121GG-86 TD121GG-87 TD121GGP-87 TD121GP-87 TD121GPB-87 TD60B TD60D TD60D-83 TD70CHC TD70CRC TD70G, TID70G TD70G-83 THD102KD, THD102KB TID100K TID100K-87 TID100KG TID100KG-87 TID100KGP-87 TID100KP TID100KPB-87 TID120FG TID120HPP TID121FG TID121K TID121K-87 TID121KG TID121KG-87 TID121KGP TID121KP TID121KP-87 TID121KPB-87 TID121L-87 TID121LG TID121LG UT-87 TID121LG-87 TID121LGP-87 TID121LP TID121LP-87 TID121LPB-87 TID60D TWD1030ME TWD1031VE TWD1210P, TWD1211P TWD1210V, TWD1211V TWD1211G TWD1230ME TWD1230VE, TWD1231VE |
| Application | Crank Mechanism Crank Mechanism: A Crank Mechanism: B Crank Mechanism: C Crankshaft and Related Parts Crankshaft and Related Parts: A Crankshaft and Related Parts: B Crankshaft and Related Parts: C CRANKSHAFT AND RELATED PARTS: D Crankshaft and Related Parts: TD100GGP-87 Crankshaft and Related Parts: TD100HP87 Crankshaft and Related Parts: TID100KP87 CRANKSHAFT AND RELATED PARTS: TID121FP Flywheel and Flywheel Housing for Allison Converter MT643 FLYWHEEL AND FLYWHEEL HOUSING FOR ALLISON CONVERTER MT643: A FLYWHEEL AND FLYWHEEL HOUSING FOR ALLISON CONVERTER MT643: B Flywheel: A Flywheel: B |
| Specification | |
| Descriptions | For 864402 For 864997 For gear box Powertronic. For gear box Voith. For gear box ZF HP. SN-XXXXXXXXXX/190308 SNXXXXXXXXXX/190309- |
