Washer 72201

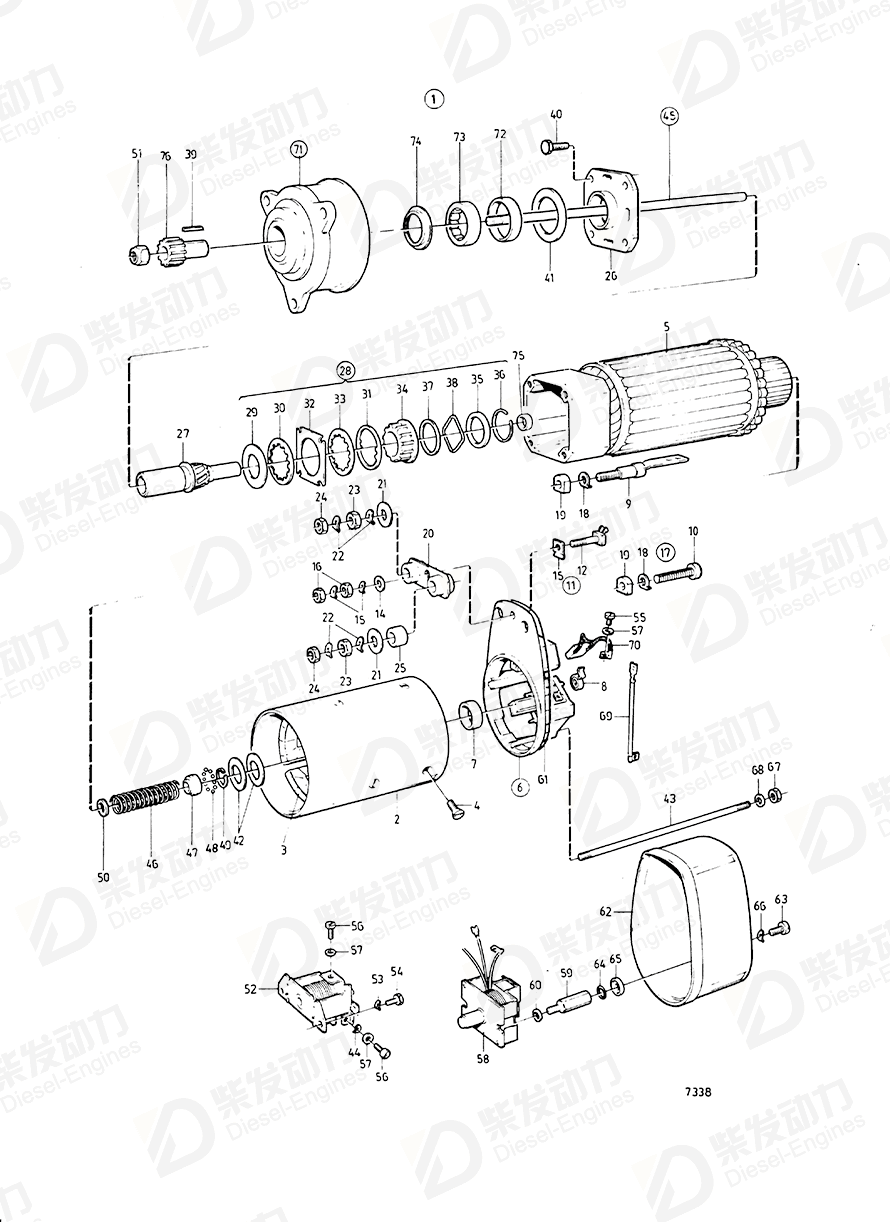

| No. | Part Name | Part Number | Qty | Description |
| 1 | Starter motor, starter motor | 4777147 | 1 | Oil protected starter., 24V |
| 3 | Field winding | 6212791 | 1 | |
| 4 | Screw | 847984 | 8 | |
| 5 | Anchor | 848093 | 1 | |
| 6 | Bearing shield | 244315 | 1 | |
| 7 | Bearing bushing | 240481 | 1 | |
| 8 | Brush spring | 240478 | 4 | |
| 9 | Terminal screw | 240479 | 1 | |
| 10 | Flange screw | 965186 | 1 | |
| 11 | Small parts kit | 6643672 | 1 | |
| 17 | Small parts kit | 3094494 | 1 | |
| 26 | Bearing shield | 240456 | 1 | |
| 27 | Disc clutch | 244539 | 1 | |
| 28 | Small parts kit | 6644414 | 1 | |
| 39 | Key | 240473 | 1 | |
| 40 | Screw | 848095 | 4 | |
| 41 | Spacer washer | 240457 | 1 | |
| 42 | Shim | 240486 | 1 | TH=0.3mm |
| 42 | Shim | 240487 | 1 | TH=0.5mm |
| 42 | Shim | 241904 | 1 | TH=0.2mm |
| 43 | Bolt | 240483 | 1 | |
| 43 | Screw | 240638 | 3 | |
| 44 | Washer | 906822 | 3 | |
| 45 | Rotor shaft | 6212793 | 1 | |
| 46 | Compression spring | 6212617 | 1 | |
| 47 | Stop ring | 6212622 | 1 | |
| 48 | Ball | 184453 | 11 | (844412) |
| 49 | Lock ring | 240471 | 1 | |
| 50 | Washer | 844410 | 1 | |
| 51 | Nut | 1696396 | 1 | |
| 52 | Actuator solenoid | 240488 | 1 | |
| 53 | Spring washer | 941907 | 2 | |
| 54 | Hexagon screw | 955293 | 2 | |
| 55 | Screw | 6643679 | 2 | |
| 56 | Screw | 244218 | 6 | |
| 57 | Spring washer | 941905 | 8 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 58 | Starter solenoid | 240493 | 1 | |
| 59 | Bolt | 243713 | 2 | |
| 60 | Washer | 6212619 | 2 | (240498) |
| 61 | O-ring | 72225 | 1 | |
| 62 | Protecting casing | 240496 | 1 | |
| 63 | Cross recessed screw | 956094 | 2 | |
| 64 | Gasket | 72202 | 2 | |
| 65 | Washer | 72201 | 2 | |
| 66 | Spring washer | 941906 | 2 | |
| 67 | Hexagon nut | 955781 | 4 | |
| 68 | Washer | 955892 | 4 | |
| 69 | Cable | 847987 | 1 | |
| 70 | Brush set | 3094854 | 1 | |
| 71 | Bearing housing | 6212797 | 1 | |
| 72 | Bearing bushing | 240455 | 1 | |
| 73 | Needle bearing | 240453 | 1 | |
| 74 | Sealing ring | 243172 | 1 | |
| 75 | Needle bearing | 243091 | 1 | |
| 76 | Starter pinion | 243180 | 1 |
| Item | Part Name | Part No. |
| 65 | Washer 72201 | 72201 |
| Details | |
| Engine model | DH10A, DH10A 285, DH10A 360, DH10A Rail, THD102KD, THD102KB, THD102K-KB TD610V, TWD610V, TD630VE, TWD630VE TD71A, TID71A, TWD731VE, TAD730V, TWD740VE TWD710V, TAD730V |
| Application | Starter Starter Motor, Components Starter Motor, Oil Proofed, Components STARTER MOTOR: 843510 STARTER MOTOR: 843511 Starter: 240347 STARTER: 240501 Starter: 4774617 STARTER: 842774 STARTER: 842775 Starter: 843510 Starter: 843511 Starter: 870870 Starter: 870998 |
