Washer 941488

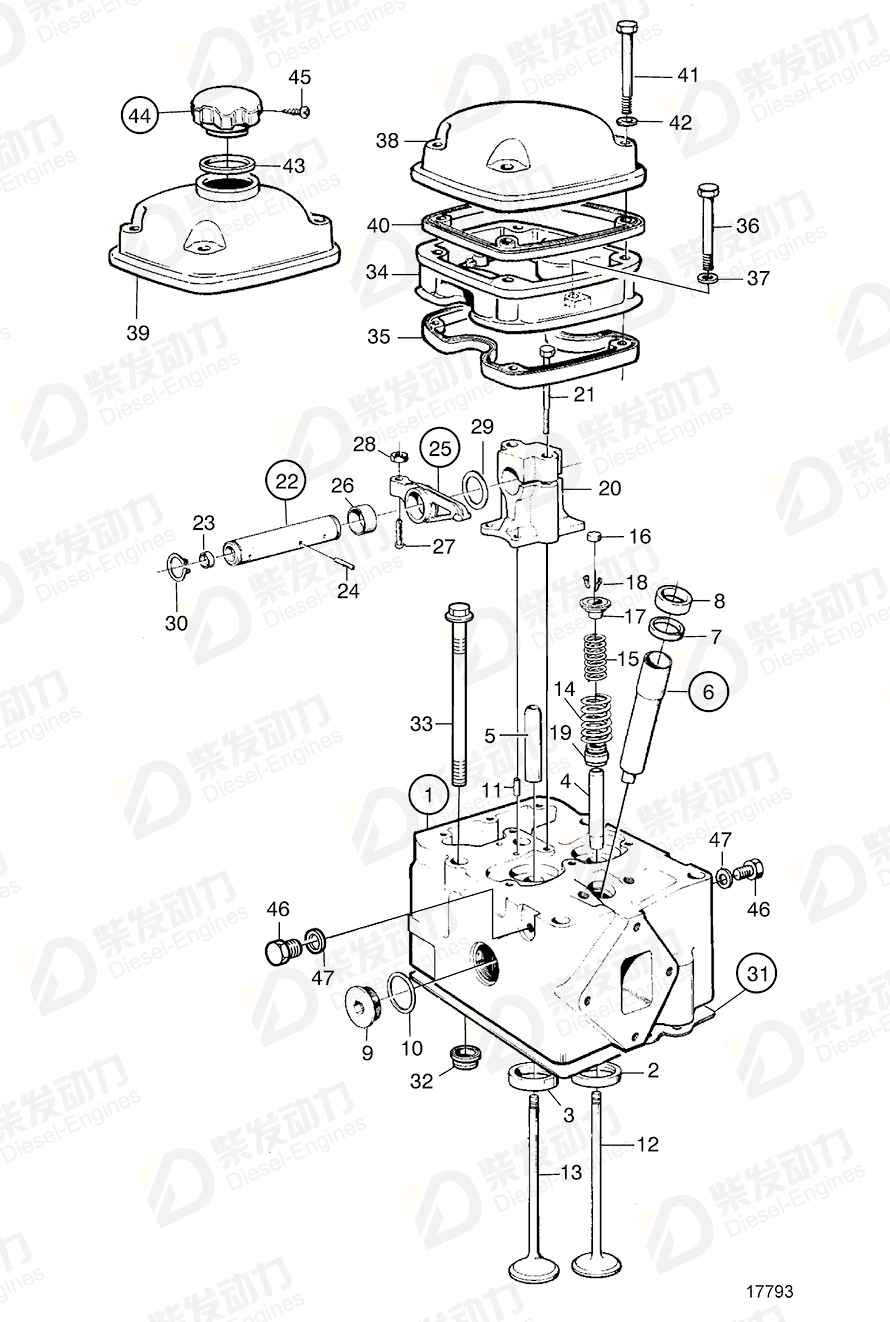

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803402 | 6 | E.U=3803402, (8194495) |
| 2 | Valve seat, intake | 467474 | 6 | Std |
| 2 | Valve seat, intake | 467590 | 6 | 0.20mm o.s |
| 3 | Valve seat, exhaust | 1545885 | 6 | O.S=0,20mm |
| 3 | Valve seat, exhaust | 1545886 | 6 | Std D |
| 4 | Valve guide, exhaust | 1545135 | 6 | (421297) |
| 5 | Valve guide, exhaust | 1545135 | 6 | (421297) |
| 6 | Socket set | 270946 | 6 | |
| 7 | Sealing ring | 466405 | 6 | |
| 8 | Ring | 466420 | 6 | |
| 9 | Plug | 8194467 | 12 | |
| 10 | O-ring | 949762 | 12 | |
| 11 | Pin | 950543 | 12 | |
| 12 | Inlet valve, intake | 8194223 | 6 | |
| 13 | Exhaust valve, exhaust | 8194224 | 6 | |
| 14 | Valve spring | 467334 | 12 | Late type |
| 15 | Valve spring | 467335 | 12 | Late type |
| 16 | Valve cap | 478074 | 12 | |
| 17 | Valve spring washer, upper | 467506 | 12 | |
| 18 | Valve cotter | 468305 | 24 | |
| 19 | Valve seal, intake | 864860 | 6 | |
| 20 | Bearing bracket | 422018 | 6 | |
| 21 | Flange screw | 422428 | 12 | |
| 22 | Rocker arm shaft | 422019 | 6 | |
| 23 | Cap plug | 946778 | 12 | |
| 24 | Pin | 950499 | 6 | |
| 25 | Rocker arm | 422063 | 12 | |
| 26 | Bushing | 422066 | 12 | |
| 27 | Ball stud | 422993 | 12 | |
| 28 | Hexagon nut | 940175 | 12 | |
| 29 | Washer | 941488 | 12 | |
| 30 | Retaining ring | 914459 | 12 | |
| 31 | Cylinder head gasket | 270789 | 6 | |
| 32 | Sealing ring | 422413 | 6 | D=11mm |
| 32 | Sealing ring | 422414 | 12 | D=32mm |
| 32 | Sealing ring | 422415 | 12 | D=18mm |
| 33 | Flange screw | 422086 | 24 | |
| 34 | Valve cover | 469431 | 6 | |
| 35 | Gasket | 424693 | 6 | |
| 36 | Hexagon screw | 940159 | 12 | |
| 37 | Washer | 955894 | 12 | |
| 38 | Valve cover | 469432 | 5 | |
| 39 | Valve cover, oil filling | 469457 | 1 | |
| 40 | Gasket | 424694 | 6 | |
| 41 | Hexagon screw | 955530 | 24 | |
| 42 | Spring washer | 941907 | 24 | |
| 43 | Gasket | 1275379 | 1 | |
| 44 | Oil filler cap | 421753 | 1 | |
| 45 | Cross recessed screw | 955126 | 1 | |
| 46 | Plug | 941876 | 12 | |
| 47 | Gasket | 18666 | 12 |
| Item | Part Name | Part No. |
| 29 | Washer 941488 | 941488 |
| Details | |
| Engine model | D100A, TD100A D100B D100BHC, D100BRC DH10A TAD1030G TAD1030GE TAD1030P TAD1031GE, TAD1032GE TAD730G TAD730P TAD730V TD100AHC, TD100ARC TD100CHC TD100CRC TD100G-87 TD100G-87, TAD1030V, TWD1031VE, TAD1030VE TD1010G, TWD1010G TD1030ME, TWD1030ME TD710G, TWD710G TD71A TD730ME TD730VE THD102KD, THD102KB TID71A TWD710P TWD710V TWD730ME, TWD731ME TWD731VE TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Cylinder Head Cylinder Head: A Cylinder Head: B Cylinder Head: C Cylinder Head: D |
