Washer 945544

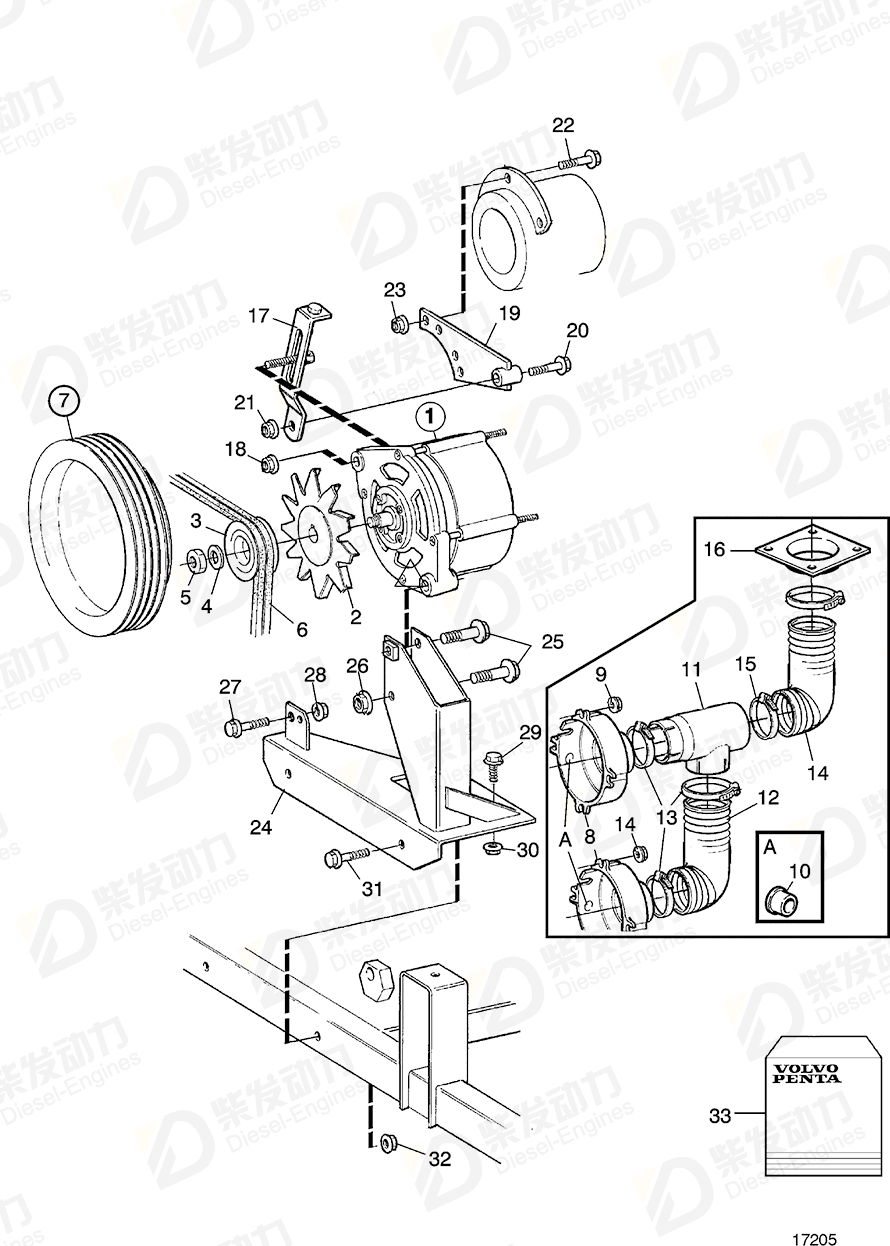

| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 1089861 | 2 | 28V 55A |
| 1 | Alternator | 1089862 | 2 | 28V 80A, E.U=3803394 |
| 1 | Alternator | 3803393 | 2 | 28V 55A |
| 1 | Alternator, exch | 3803394 | 2 | 28V 80A, E.U=3803394 |
| 2 | Fan | 1613241 | 2 | |
| 3 | V-belt pulley | 9518467 | 2 | |
| 4 | Washer | 945544 | 2 | |
| 5 | Hexagon nut | 955805 | 2 | |
| 6 | V-belt | 9521931 | 1 | |
| 8 | Cover | 9957941 | 2 | |
| 9 | Flange lock nut | 949874 | 8 | |
| 10 | Plug | 948665 | 6 | |
| 11 | Hose connection | 9518453 | 1 | |
| 12 | Hose | 9518555 | 1 | L=300mm |
| 13 | Hose clamp | 943480 | 3 | MO-XXXXX/98707., (951797) |
| 14 | Hose | 9518554 | 1 | L=3750mm |
| 15 | Hose clamp | 943481 | 2 | (951798) |
| 16 | Hose connection | 9520590 | 1 | |
| 17 | Tensioning arm | 1378789 | 1 | |
| 18 | Flange lock nut | 948645 | 1 | |
| 19 | Bracket | 9958300 | 1 | |
| 20 | Flange screw | 973924 | 1 | |
| 21 | Flange lock nut | 948645 | 1 | |
| 22 | Flange screw | 965191 | 2 | |
| 23 | Flange lock nut | 971099 | 2 | |
| 24 | Bracket | 9521932 | 1 | |
| 25 | Flange screw | 966365 | 2 | |
| 26 | Flange lock nut | 971100 | 1 | |
| 27 | Hexagon screw | 955299 | 1 | |
| 28 | Flange lock nut | 948645 | 1 | |
| 29 | Flange screw | 965192 | 1 | |
| 30 | Flange lock nut | 971099 | 1 | |
| 31 | Flange screw | 965197 | 2 | |
| 32 | Flange lock nut | 971099 | 2 | |
| 33 | Repair kit | 244611 | 1 | For 1089861, 1089862 |
| 33 | Repair kit | 273503 | 1 |
| Item | Part Name | Part No. |
| 4 | Washer 945544 | 945544 |
| Details | |
| Engine model | DH10A, THD102KD, THD102KB TD1030ME, TWD1030ME TD610M TD610M, TD630ME, TD730ME TD610V, TD630VE TD61A, TD61AW, TD71A, TD71AW, TID71A TD630ME, TD730ME TD71A, TID71A, TWD710V, TD730VE TWD1030ME TWD630ME TWD710P |
| Application | Alternator Alternator Low Mounting Alternator, Low-Left Mounted Alternator, Low-Left Mounted SN-2061150163 Alternator, Low-Left Mounted SN-2071115245 Alternator, Low-Left Mounted SN2061150164- Alternator, Low-Left Mounted SN2071115246- Alternator, Low-Left Mounted: 55A Alternator, Low-Left Mounted: 80A Alternator, Low-Right Mounted Alternator, Low-Right Mounted: A Alternator, Low-Right Mounted: B Alternator, Low-Right Mounted: C Alternator, Low-Right Mounting, Earlier Prod |
| Specification | |
| Descriptions | For 6779261 For 6779261, 1089862 |
