Washer 955895

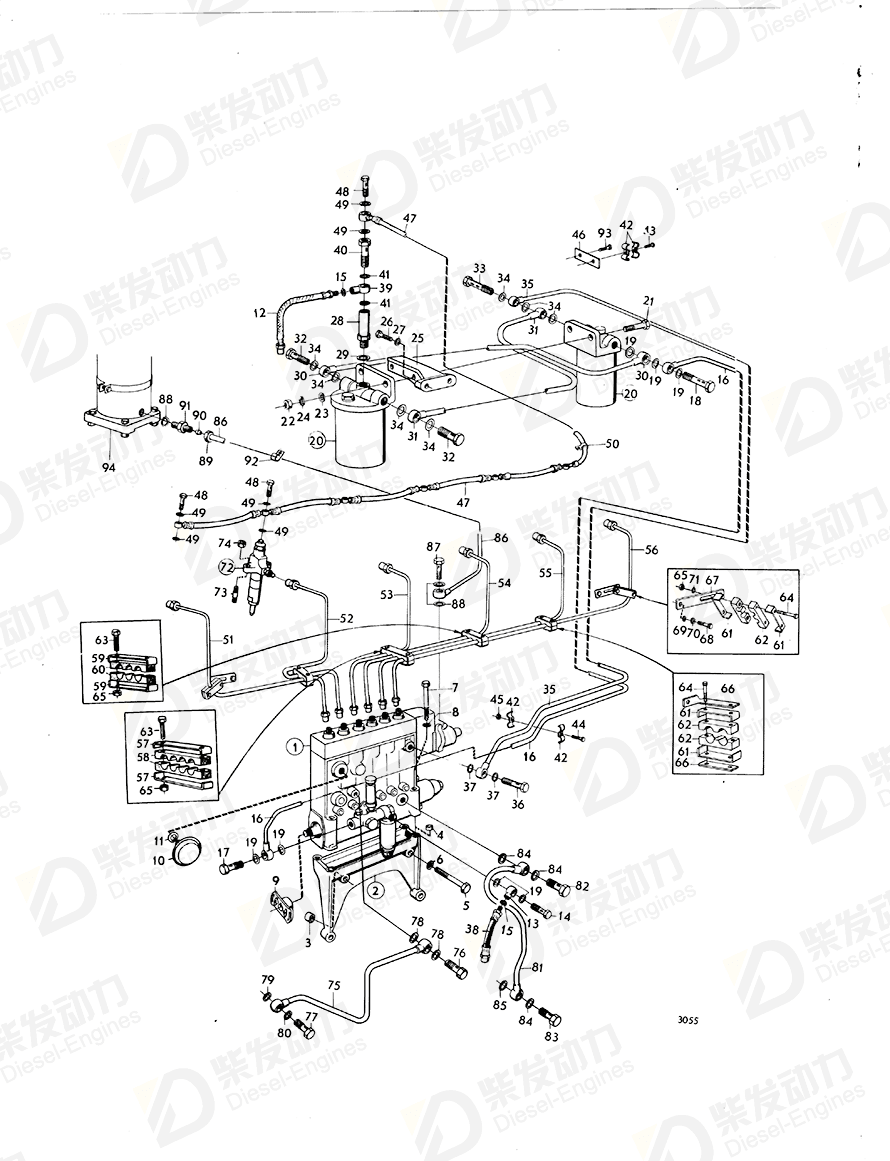

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 240405 | 1 | |
| 2 | Bracket | 468558 | 1 | |
| 3 | Guide sleeve | 423161 | 2 | |
| 4 | Guide sleeve | 417588 | 1 | |
| 5 | Hexagon screw | 955566 | 4 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 6 | Spring washer | 940280 | 4 | |
| 7 | Hexagon screw | 940156 | 4 | |
| 8 | Washer | 190509 | 4 | |
| 10 | Pressure equalizer | 466398 | 1 | |
| 11 | Gasket | 957178 | 1 | |
| 12 | Hose | 327101 | 1 | |
| 13 | Banjo nipple | 191600 | 1 | |
| 14 | Hollow screw | 25167 | 1 | |
| 15 | Gasket | 957178 | 2 | |
| 16 | Fuel pipe | 422595 | 1 | |
| 17 | Hollow screw | 25167 | 1 | |
| 18 | Hollow screw | 180211 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 19 | Gasket | 957178 | 7 | |
| 21 | Hexagon screw | 955538 | 2 | |
| 22 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 23 | Washer | 955895 | 4 | |
| 24 | Spring washer | 942336 | 2 | |
| 25 | Bracket | 422196 | 1 | |
| 26 | Hexagon screw | 955537 | 2 | |
| 27 | Spring washer | 942336 | 2 | |
| 28 | Overflow valve | 35096 | 1 | |
| 29 | Gasket | 957178 | 1 | |
| 30 | Fuel pipe | 422267 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065 |
| 31 | Fuel pipe | 422268 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065 |
| 32 | Hollow screw | 25167 | 2 | |
| 33 | Hollow screw | 180211 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 34 | Gasket | 957178 | 7 | |
| 35 | Fuel pipe | 422596 | 1 | |
| 36 | Hollow screw | 25167 | 1 | |
| 37 | Gasket | 957178 | 2 | |
| 39 | Banjo nipple | 191600 | 1 | |
| 40 | Hollow screw | 16496 | 1 | |
| 41 | Gasket | 957178 | 2 | |
| 42 | Attaching clamp | 404279 | 6 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 43 | Cross recessed screw | 950047 | 2 | |
| 44 | Cross recessed screw | 950048 | 1 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 45 | Hexagon nut | 955825 | 2 | Late type |
| 47 | Leak-off pipe | 422235 | 1 | |
| 48 | Hollow screw | 74033 | 7 | |
| 49 | Gasket | 957171 | 14 | |
| 50 | Clamp | 946834 | 1 | |
| 51 | Delivery pipe | 422225 | 1 | |
| 52 | Delivery pipe | 422226 | 1 | |
| 53 | Delivery pipe | 422227 | 1 | |
| 54 | Delivery pipe | 422228 | 1 | |
| 55 | Delivery pipe | 422229 | 1 | |
| 56 | Delivery pipe | 422230 | 1 | |
| 57 | Attaching clamp | 414348 | 1 | |
| 58 | Attaching clamp | 414349 | 2 | |
| 59 | Attaching clamp | 414346 | 2 | |
| 60 | Attaching clamp | 414347 | 2 | |
| 61 | Attaching clamp | 414344 | 8 | |
| 62 | Attaching clamp | 414345 | 8 | |
| 63 | Hexagon screw | 955247 | 8 | |
| 64 | Hexagon screw | 955249 | 4 | |
| 65 | Hexagon nut | 955780 | 10 | |
| 66 | Nut plate | 414736 | 1 | |
| 67 | Bracket | 422323 | 2 | |
| 68 | Hexagon screw | 940100 | 2 | |
| 69 | Washer | 955893 | 2 | |
| 70 | Spring washer | 941906 | 2 | |
| 71 | Washer | 940090 | 2 | |
| 72 | Injector | 240337 | 6 | |
| 73 | Stud | 941928 | 12 | |
| 74 | Nut | 417110 | 12 | |
| 75 | Oil feed pipe | 422245 | 1 | |
| 76 | Hollow screw | 48634 | 1 | |
| 77 | Hollow screw | 942081 | 1 | |
| 78 | Gasket | 957173 | 2 | |
| 79 | Gasket | 18666 | 1 | |
| 80 | Gasket | 11994 | 1 | |
| 81 | Return pipe | 422246 | 1 | |
| 82 | Hollow screw | 25167 | 1 | |
| 83 | Hollow screw | 954394 | 1 | |
| 84 | Gasket | 957178 | 3 | |
| 85 | Gasket | 957181 | 1 | |
| 87 | Hollow screw | 74040 | 1 | |
| 88 | Gasket | 957175 | 3 | |
| 89 | Fitting nut | 954357 | 1 | |
| 90 | Fitting | 954365 | 1 | |
| 91 | Nipple | 180264 | 1 | |
| 92 | Clamp | 62112 | 1 | |
| 93 | Hexagon screw | 955560 | 1 |
| Item | Part Name | Part No. |
| 23 | Washer 955895 | 955895 |
| Details | |
| Engine model | D100A D70B TAD1630G, TAD1630GE TAD1630P TAD1630V TAD1631G, TAD1631GE TAD730V TD164KAE TD30A TD610G, TWD610G TD610M, TD630ME TD610V, TWD610V, TD630VE TD70B TD70CHC, TD70CRC TD710G, TWD710G, TAD730G TD71A, TID71A, TWD710V TD730ME, TWD730ME, TWD731ME TD730VE, TWD731VE TID162AG, TID162AGP, TID162AP, TID162APB TWD1620G, TWD1630G TWD1630P TWD1630V TWD610P TWD630ME TWD630VE TWD710P, TAD730P TWD730ME TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Fuel System MO-46196/XXXXX: A Fuel System MO-46196/XXXXX: B Fuel System Spec.S5175/497250 Fuel System, Classed Engine, Spec.867053, MO-46196/XXXXX Timing Gear Casing and Gears Timing Gear Casing and Gears, SN-2071082971 Timing Gear Casing and Gears, SN2071082972- Timing Gear Casing and Gears: A Timing Gear Casing and Gears: B Timing Gear Casing and Gears: C Turbo and Air Filter with Installation Components Turbo and Installation Components Turbocharger Turbocharger: A Turbocharger: B |
| Specification | |
| Descriptions | (960148) |
