Washer 976943

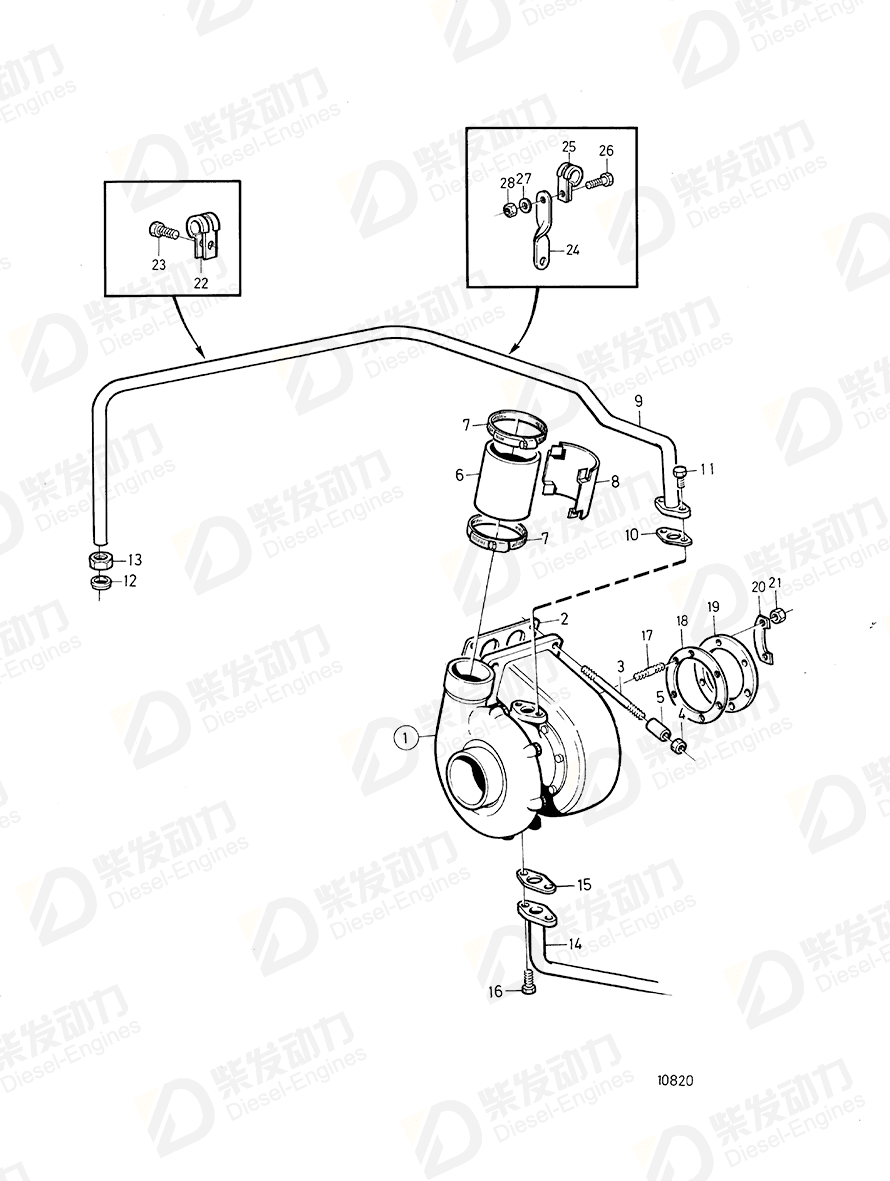

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802049 | 1 | SN-XXXXXXXXXX/60026 |
| 2 | Gasket | 420618 | 1 | (466392) |
| 3 | Stud | 977298 | 4 | |
| 4 | Flange lock nut | 471622 | 4 | |
| 5 | Spacer sleeve | 470467 | 4 | |
| 9 | Oil pressure pipe | 849257 | 1 | |
| 10 | Plane gasket | 420641 | 1 | |
| 11 | Flange screw | 945444 | 2 | |
| 12 | Ferrule | 1677898 | 1 | For 849256 |
| 13 | Fitting nut | 956984 | 1 | |
| 14 | Oil return pipe | 849255 | 1 | |
| 15 | Plane gasket | 420643 | 1 | |
| 16 | Flange screw | 945444 | 2 | |
| 17 | Stud | 924064 | 6 | |
| 18 | Gasket | 424628 | 1 | Included in gasket kit. |
| 19 | Flange | 844935 | 1 | |
| 20 | Tab washer | 947071 | 3 | TD60B PP |
| 21 | Hexagon nut | 946330 | 6 | |
| 22 | Clamp | 949746 | 1 | |
| 23 | Flange screw | 947107 | 1 | |
| 24 | Bracket | 354842 | 1 | |
| 25 | Clamp | 952627 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053. |
| 26 | Flange screw | 946544 | 1 | For THD102KB and THD102KD. |
| 27 | Washer | 976943 | 1 | |
| 28 | Flange lock nut | 949278 | 1 |
| Item | Part Name | Part No. |
| 27 | Washer 976943 | 976943 |
| Details | |
| Engine model | DH10A TAD1030GE, TAD1031GE TAD1230G, TD1210G, TAD1231GE, TAD1232GE TAD1230P, TD121GP-87, TD1210G TAD1630G, TAD1630GE, TAD1631G, TAD1631GE TAD1630P TAD1630V TD100G-87 TD1010G, TWD1010G TD1030ME, TWD1030ME TD1030VE, TWD1031VE TD121G-87, TAD1230V TD121G-87, TWD1231VE TD164KAE TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE TD610V, TD630VE, TD640VE TD71A TID162AGP, TID162AP TID71A, TWD710V TWD1031VE TWD1210G, TWD1211G TWD1210P, TWD1211P, TWD1210G, TWD1211G TWD1210V, TWD1211V, TWD1230VE, TWD1231VE TWD1230ME TWD1620G TWD1620G, TWD1630G TWD1630P TWD1630V TWD610G TWD610P TWD610V, TWD630VE TWD630ME TWD710G TWD710P TWD730ME, TWD731ME TWD731VE TWD740GE, TAD740GE, TAD741GE |
| Application | Belt Guard, Earlier Production Closed Crankcase Ventilation Closed Crankcase Ventilation: A Closed Crankcase Ventilation: B Contacts and Sensors Electrical Components, Contacts and Sensors Injectors, Pressure Pipes and Leak-off Line, SN1201090022- Inlet Manifold Inlet Manifold: A Inlet Manifold: B Lubricating System Radiator and Fan, Earlier Prod. Radiator and Fan, Later Prod.: A Radiator and Fan, Later Prod.: senare utförande Radiator and Fan, Mobile Application Radiator, Expansion Tank and Fan Turbocharger and Installation Components,low Mounted Turbocharger, Low Mounted |
| Specification | |
| Descriptions | (960139) |
