Wing nut 940344

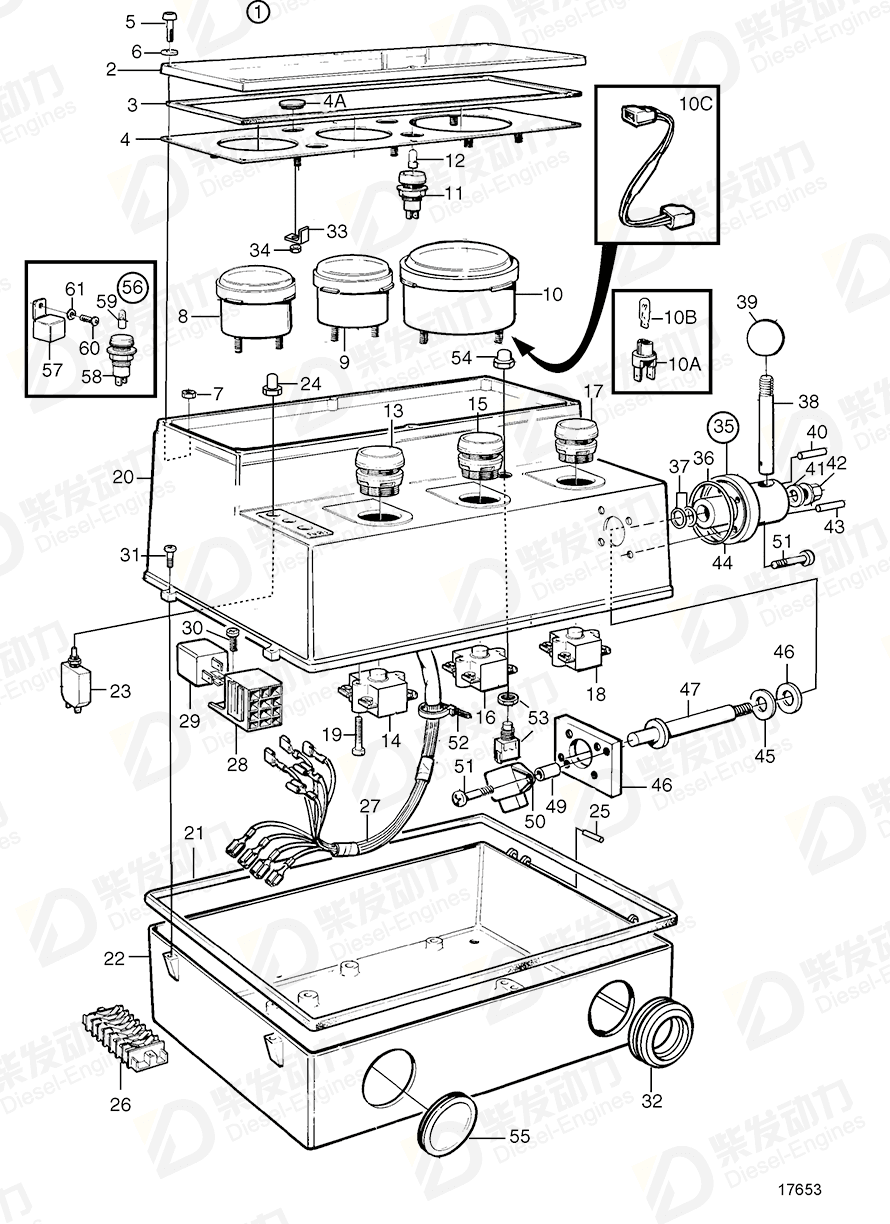

| No. | Part Name | Part Number | Qty | Description |
| 2 | Protecting cover | 873654 | 1 | (849842) |
| 3 | Sealing strip | 849885 | 1 | |
| 4 | Instrument plate | 873614 | 1 | |
| 5 | Cross recessed screw | 849963 | 6 | |
| 6 | Gasket | 862501 | 6 | |
| 7 | Flange nut | 965483 | 6 | |
| 8 | Instrument, oil-pressure | 873625 | 1 | 24V |
| 9 | Instrument, temperature | 873624 | 1 | 24V |
| 10 | Tachometer kit, hour/tachometer | 873998 | 1 | Used without diod cable 873695., 12V-24V |
| 11 | Bulb socket | 849966 | 1 | Warning lamp, amp. |
| 12 | Bulb | 182034 | 1 | (277803) |
| 13 | Push button | 3817576 | 1 | Red |
| 14 | Contact unit | 3817574 | 1 | Green-red |
| 15 | Push button | 3817578 | 1 | Black (863104) |
| 16 | Contact unit | 3817574 | 1 | Green-red |
| 17 | Push button | 3817577 | 1 | Green |
| 18 | Contact unit | 3817575 | 1 | Green |
| 19 | Cross recessed screw | 956063 | 6 | |
| 20 | Cap | 873803 | 1 | |
| 21 | Sealing strip | 849840 | 1 | |
| 22 | Box | 849839 | 1 | |
| 23 | Fuse | 966689 | 1 | 8A |
| 23 | Fuse | 968821 | 1 | 16A |
| 24 | Nut | 862006 | 2 | |
| 25 | Spring pin | 951967 | 2 | Included in repair kit 3830711. |
| 26 | Terminal block | 849992 | 1 | 5-pole |
| 26 | Terminal block | 849993 | 2 | 7-pole |
| 27 | Wiring harness | 873793 | 1 | Screw connector |
| 28 | Housing | 977184 | 3 | 6,3x5x4,8/2,8x4 |
| 29 | Relay | 3171420 | 2 | |
| 30 | Cross recessed screw | 956074 | 3 | EARLY TYPE |
| 31 | Cross recessed sunk | 862281 | 2 | |
| 32 | Plug | 943920 | 1 | I.D=40mm |
| 34 | Lock nut | 963103 | 8 | |
| 35 | Control | 3827009 | 1 | |
| 36 | O-ring | 975672 | 1 | |
| 37 | O-ring, bearing housing | 925054 | 2 | |
| 39 | Wing nut | 940344 | 1 | |
| 40 | Spring pin | 951946 | 1 | |
| 41 | Washer | 955893 | 1 | |
| 42 | Lock nut | 963105 | 1 | |
| 43 | Spring pin | 951953 | 1 | L=16mm |
| 45 | Spring washer | 941908 | 1 | |
| 46 | Washer | 976945 | 1 | |
| 49 | Spacer sleeve | 1573057 | 2 | |
| 4A | Plug | 961965 | 3 | |
| 50 | Potentiometer | 1336385 | 1 | |
| 51 | Six point socket scr | 969556 | 6 | |
| 52 | Cable tie | 948211 | 1 | |
| 53 | Toggle switch | 828584 | 1 | |
| 54 | Nut | 828586 | 1 | |
| 55 | Plug | 943920 | 1 | I.D=40mm |
| 57 | Alarm separator | 863724 | 1 | |
| 58 | Bulb socket | 863721 | 1 | Warning lamp, low coolant level. |
| 58 | Bulb socket | 863722 | 1 | Warning lamp, low oil pressure. |
| 58 | Bulb socket | 863723 | 1 | Warning lamp, high coolant temperature. |
| 59 | Bulb | 182034 | 3 | (277803) |
| 60 | Cross recessed screw | 956089 | 1 | |
| 61 | Washer | 955892 | 1 | |
| 10A | Bulb socket | 863945 | 1 | For 873625,873624,873664 |
| 10B | Bulb | 943638 | 1 | For 873625,873624,873664 |
| 10C | Diode cable, tachometer | 873695 | 1 |
| Item | Part Name | Part No. |
| 39 | Wing nut 940344 | 940344 |
| Details | |
| Engine model | TAD1240GE, TAD1241GE, TAD1242GE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE TWD1231VE TWD1240VE, TAD1241VE, TAD1242VE TWD740VE |
| Application | Instrument Panel and Control Instrument Panel with Speed Control and Alarm Separator Kit |
