Wire gauze 414621

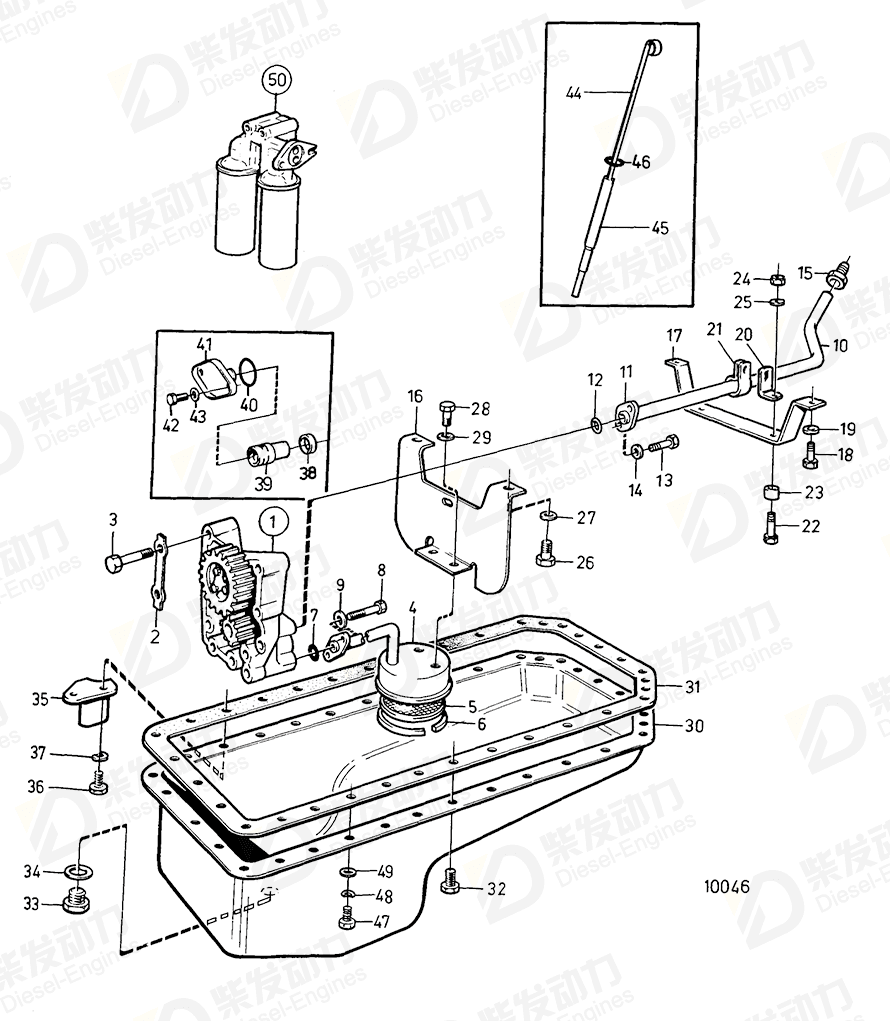

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 1545119 | 1 | |
| 2 | Tab washer | 190529 | 2 | |
| 3 | Hexagon screw | 955538 | 4 | |
| 4 | Suction pipe | 824156 | 1 | |
| 4 | Housing | 837766 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX- |
| 5 | Wire gauze | 414621 | 1 | |
| 6 | Retaining ring | 118125 | 1 | |
| 7 | O-ring | 844637 | 1 | Truck K250 |
| 7 | O-ring | 949658 | 1 | (925061) early type |
| 8 | Hexagon screw | 955530 | 2 | |
| 9 | Spring washer | 941907 | 2 | |
| 10 | Oil pressure pipe | 1545270 | 1 | Late type |
| 11 | Flange | 1545272 | 1 | Late type |
| 12 | Sealing ring | 1545271 | 1 | Late type |
| 13 | Hexagon screw | 955531 | 2 | Late type |
| 14 | Spring washer | 941907 | 2 | |
| 15 | Fitting | 466907 | 1 | |
| 16 | Support | 837767 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX- |
| 16 | Baffle plate | 1545381 | 1 | |
| 17 | Bracket | 1545011 | 1 | Late type |
| 18 | Flange screw | 942402 | 2 | |
| 19 | Spring washer | 941907 | 2 | |
| 20 | Bracket | 1545203 | 1 | Late type |
| 21 | Attaching clamp | 1545433 | 1 | |
| 22 | Hexagon screw | 940117 | 3 | Late type |
| 23 | Spacer sleeve | 1545269 | 3 | Late type |
| 24 | Hexagon nut | 955825 | 3 | Late type |
| 25 | Washer | 960140 | 3 | 3-6mm², yellow |
| 26 | Hexagon screw | 955523 | 2 | |
| 27 | Spring washer | 941907 | 2 | |
| 28 | Hexagon screw | 940113 | 2 | |
| 29 | Spring washer | 941907 | 2 | |
| 30 | Crankcase | 846870 | 1 | Truck K250 |
| 30 | Sump | 862014 | 1 | |
| 31 | Gasket | 1545696 | 1 | |
| 32 | Flange screw | 942402 | 39 | |
| 33 | Magnetic plug | 192538 | 1 | |
| 34 | Gasket, plug | 18677 | 1 | |
| 35 | Bracket, oil cooler | 467916 | 1 | |
| 36 | Hexagon screw | 955525 | 2 | |
| 37 | Spring washer | 941907 | 2 | |
| 38 | Sealing ring | 469846 | 1 | |
| 39 | Reduction valve | 471706 | 1 | Marked blue |
| 40 | O-ring | 949658 | 1 | (925061) early type |
| 41 | Cover | 471752 | 1 | |
| 42 | Hexagon screw | 940100 | 2 | |
| 43 | Spring washer | 949607 | 2 | |
| 44 | Oil dipstick | 823018 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 44 | Oil dipstick | 848344 | 1 | |
| 45 | Extension pipe | 412845 | 1 | |
| 45 | Tube | 836179 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 46 | O-ring | 955982 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 47 | Hexagon screw | 940135 | 41 | |
| 48 | Spring washer | 941907 | 41 | |
| 49 | Washer | 191172 | 41 | Spec.867054, 867221. |
| Item | Part Name | Part No. |
| 5 | Wire gauze 414621 | 414621 |
| Details | |
| Engine model | D100A D100A, D100B D100B D100B, TD100A D120A D120A, TD120A D42A D70B D70CHC D70CRC TAD120AHC TAD120BHC TAD120CHC TD100A TD100ARC TD100G TD100G-85 TD100G-87 TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD45B TD60A TD60B TD60D TD60D-83, TID60D TD60D-83, TID60D, TID60DG TD70B TD70CHC TD70CRC TD70G TID100K TID100K-87 TID120FG TID60D TID70G |
| Application | LUBRICATING SYSTEM Lubricating System Standard Model: A Lubricating System Standard Model: B Lubricating System Standard Model: C Lubricating System, 1000 Hours Running, Spec.9931, 9934, 867023 Lubricating System, 40° Inclination Lubricating System, Angle of Inclination 10° LUBRICATING SYSTEM, ANGLE OF INCLINATION 40°: B Lubricating System, Classed Engine Lubricating System, Classed Engine: A Lubricating System, Spec.9755, 9762, 9803, 9946, 867017, 867024,867045 LUBRICATING SYSTEM, STANDARD MODEL Lubricating System, Standard Model: A Lubricating System, Standard Model: B Lubricating System, Standard: A Lubricating System: A Lubricating System: B Lubricating System: C Lubricating System: D |
| Specification | |
| Descriptions | (403483) D70B spec.867057,867058, (MOXXXXX/15607-,see lubricating system standard model),867059,867063,867221,867283.TD70B spec.867065 alt. For 837766 |
