Wiring harness 21669409

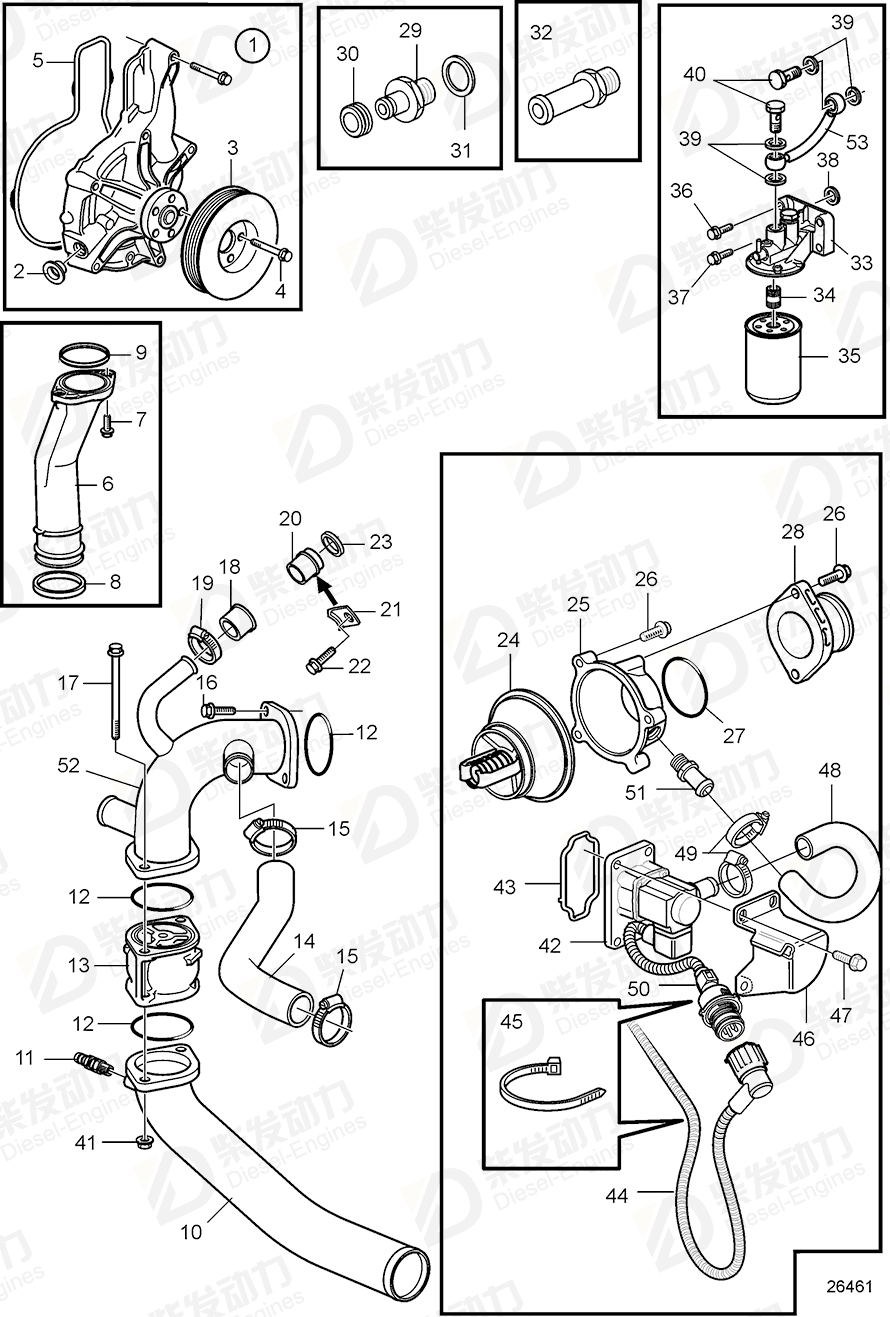

| No. | Part Name | Part Number | Qty | Description |
| 1 | Coolant pump, exch | 3801741 | 1 | |
| 1 | Pump unit | 21468471 | 1 | SN9185- |
| 1 | Pump unit | 22195450 | 1 | |
| 1 | Pump unit | 22902431 | 1 | |
| 2 | Cap | 842235 | 1 | |
| 3 | Pulley | 20538853 | 1 | For water pump 20744939 |
| 4 | Flange screw | 984732 | 5 | |
| 5 | Rubber moulding | 21103569 | 1 | |
| 5 | Rubber moulding | 21415427 | 1 | |
| 6 | Connection pipe | 21420336 | 1 | |
| 7 | Flange screw | 984734 | 2 | |
| 8 | Sealing ring | 20799996 | 1 | (425137) |
| 9 | Sealing ring | 21423788 | 1 | For pipe 21420336 |
| 10 | Coolant pipe | 3842381 | 1 | |
| 11 | Shut-off cock | 966871 | 1 | |
| 12 | O-ring | 975675 | 3 | |
| 13 | Overflow valve | 22280909 | 1 | |
| 14 | Hose | 952973 | 1 | L = 110 MM |
| 15 | Hose clamp | 994561 | 2 | |
| 16 | Flange screw | 984736 | 2 | |
| 17 | Flange screw | 984744 | 2 | |
| 18 | Plastic plug | 845422 | 1 | Replaced by 842427, 842428, 842429, 842423, 411710., Late type |
| 19 | Hose clamp | 961666 | 1 | |
| 20 | Plug | 20845995 | 1 | |
| 21 | Lock brace | 1546531 | 1 | |
| 22 | Flange screw | 984733 | 1 | |
| 23 | Sealing ring | 1547252 | 1 | |
| 24 | Thermostat | 21412639 | 1 | 82°C |
| 24 | Thermostat | 21613426 | 1 | |
| 25 | Cover | 21934529 | 1 | |
| 26 | Flange screw | 984736 | 5 | |
| 27 | O-ring | 975675 | 1 | |
| 28 | Coolant pipe | 21843564 | 1 | |
| 29 | Nipple | 1676622 | 1 | |
| 30 | Protecting cap | 476279 | 1 | |
| 31 | Gasket | 979099 | 1 | |
| 32 | Hose nipple | 977508 | 1 | |
| 33 | Bracket | 20459650 | 1 | |
| 34 | Nipple | 22179185 | 1 | |
| 35 | Coolant filter | 21192875 | 1 | Do not use together with Volvo Penta VCS (yellow) coolant |
| 36 | Flange screw | 984736 | 3 | |
| 37 | Flange screw | 994386 | 1 | |
| 38 | Sealing ring | 469846 | 1 | |
| 39 | Gasket | 969011 | 4 | |
| 40 | Hollow screw | 25167 | 2 | |
| 41 | Flange nut | 990940 | 2 | |
| 42 | By-pass valve | 21750354 | 1 | |
| 43 | Seal | 8131154 | 1 | |
| 45 | Cable tie | 948211 | 1 | |
| 46 | Heat shield | 21821779 | 1 | |
| 47 | Flange screw | 984734 | 4 | |
| 48 | Cooling hose | 21613854 | 1 | |
| 49 | Hose clamp | 21078879 | 2 | |
| 50 | Wiring harness | 21669409 | 1 | |
| 51 | Hose nipple | 980535 | 1 | |
| 52 | Coolant pipe | 3841787 | 1 | |
| 53 | Hose | 20729344 | 1 |
| Item | Part Name | Part No. |
| 50 | Wiring harness 21669409 | 21669409 |
| Details | |
| Engine model | TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TWD1652GE, TWD1653GE |
| Application | Water Pump, Thermostat Housing and Water Filter, Radiator Cooling. SN-2016080035. Water Pump, Thermostat Housing and Water Filter, Radiator Cooling. SN2016064437-SN2016080035. |
