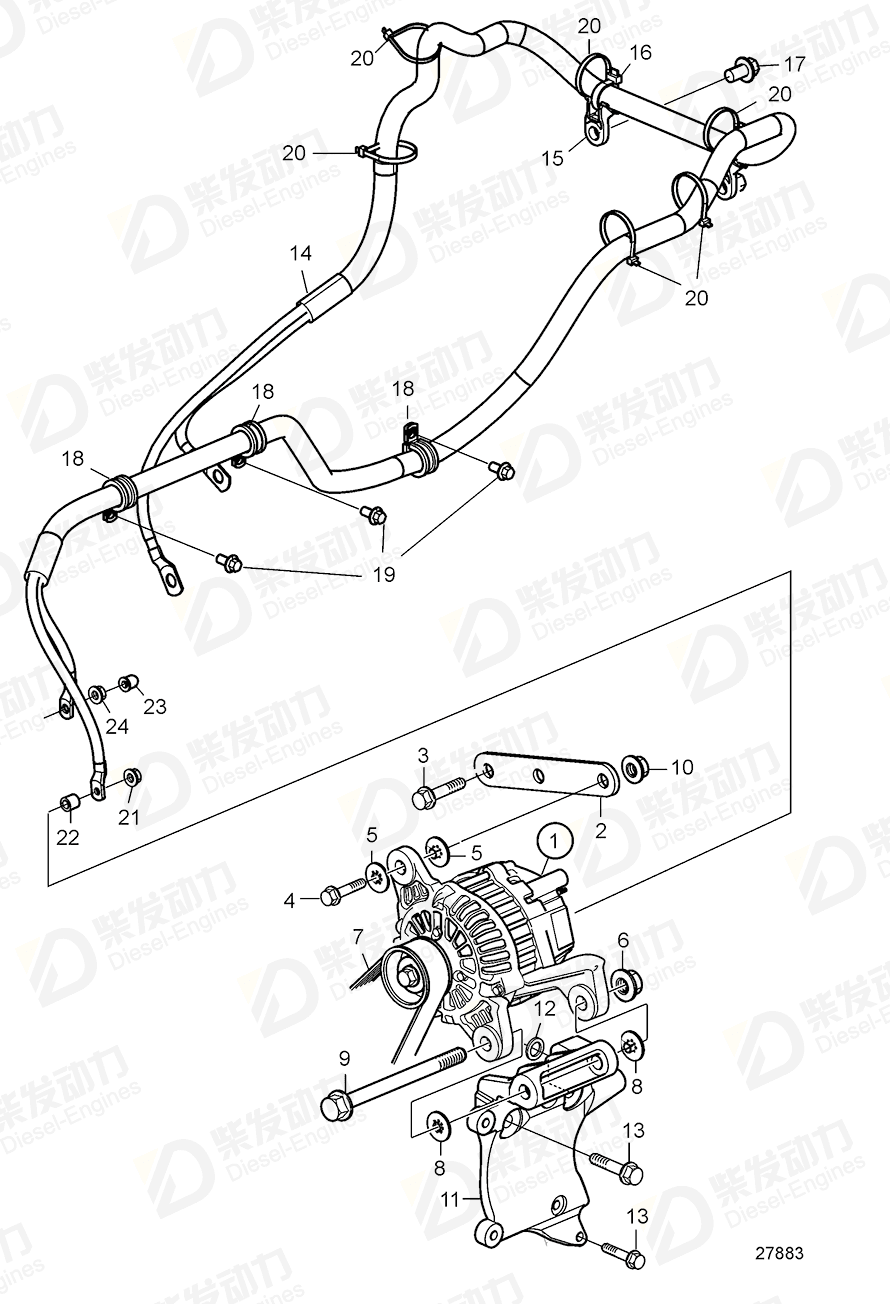

Wiring harness 21915982
| No. | Part Name | Part Number | Qty | Description |
| 1 | Alternator | 21429786 | 1 | 28V 110A |
| 1 | Alternator | 21561402 | 1 | 28V/150A |
| 2 | Bracket | 3829091 | 1 | |
| 3 | Flange screw | 984738 | 1 | |
| 4 | Flange screw | 984752 | 1 | |
| 5 | Insulating bushing | 21308514 | 2 | |
| 6 | Flange lock nut | 990950 | 1 | |
| 7 | V-ribbed belt | 20430376 | 1 | |
| 8 | Insulating bushing | 21328137 | 2 | |
| 9 | Flange screw | 984826 | 1 | |
| 10 | Flange lock nut | 990960 | 1 | |
| 11 | Bracket | 3885364 | 1 | |
| 12 | Sealing ring | 8192190 | 1 | |
| 13 | Flange screw | 969445 | 4 | |
| 14 | Wiring harness | 21915982 | 1 | |
| 16 | Cable tie | 980464 | 2 | |
| 17 | Flange screw | 984813 | 2 | |
| 18 | Clamp | 945081 | 3 | |
| 19 | Flange screw | 984733 | 3 | |
| 20 | Cable tie | 948211 | 1 | |
| 21 | Hexagon nut | 983714 | 2 | |
| 22 | Spacer sleeve | 1357345 | 1 | |
| 23 | Cap plug | 20576874 | 1 | |
| 24 | Hexagon nut | 983715 | 1 | (949578) |
| Item | Part Name | Part No. |
| 14 | Wiring harness 21915982 | 21915982 |
| Details | |
| Engine model | TAD1643VE-B TAD1650VE-B, TAD1651VE TAD1670VE, TAD1671VE, TAD1672VE |
| Application | Alternator, 28V 110A and 150A |
