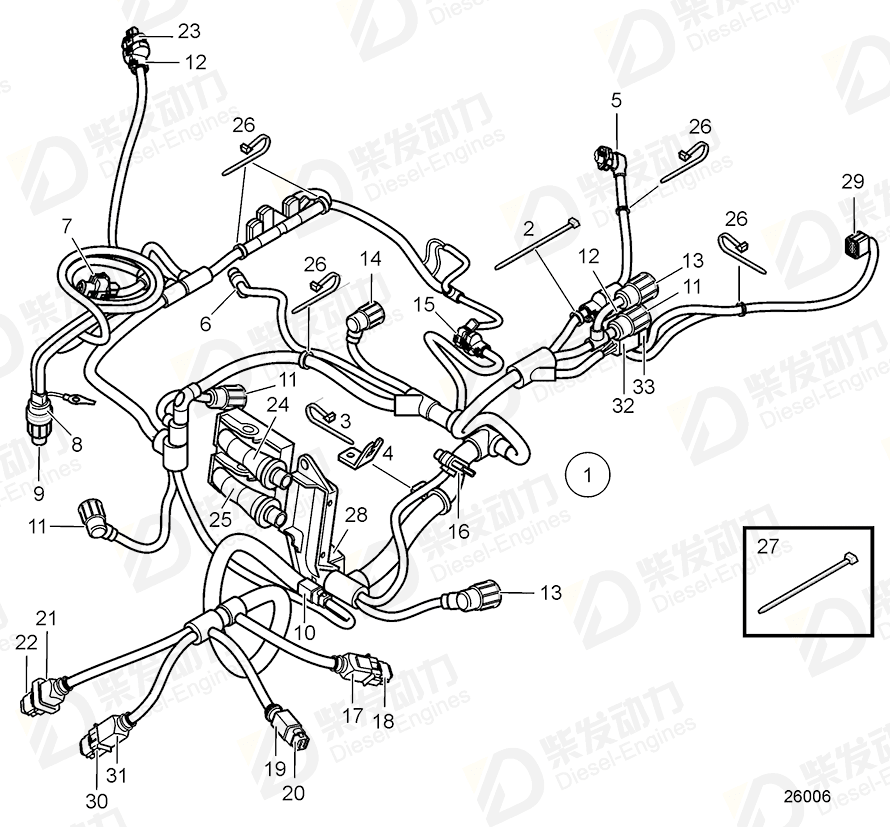

Wiring harness 22064169
| No. | Part Name | Part Number | Qty | Description |
| 1 | Wiring harness | 21665352 | 1 | Replaced by 21739307 |
| 1 | Wiring harness | 21671617 | 1 | Replaced by 21665352 |
| 1 | Wiring harness | 21739307 | 1 | SN-11270935 |
| 1 | Wiring harness | 22064169 | 1 | SN11270936-, Replaced by 22872265 |
| 1 | Wiring harness | 22872265 | 1 | |
| 3 | Cable tie | 20513984 | 9 | L=160mm |
| 4 | Bracket | 20450997 | 1 | |
| 5 | Connector | 21157620 | 1 | |
| 6 | Connector | 21157293 | 1 | |
| 7 | Connector | 21157295 | 1 | |
| 8 | Connector | 21157233 | 1 | |
| 9 | Connector | 21157239 | 1 | |
| 10 | Connector | 21157187 | 1 | |
| 11 | Connector | 21157623 | 1 | |
| 12 | Connector | 21157625 | 1 | |
| 13 | Connector | 21157215 | 1 | |
| 14 | Connector | 21157626 | 1 | |
| 15 | Connector | 21157627 | 1 | |
| 16 | Connector | 21157629 | 1 | |
| 17 | Connector | 21157209 | 1 | |
| 18 | Connector | 21157212 | 1 | |
| 19 | Connector | 21157200 | 1 | |
| 20 | Connector | 21157203 | 1 | |
| 21 | Connector | 21665353 | 1 | |
| 22 | Connector | 21665354 | 1 | |
| 23 | Connector | 21219721 | 1 | |
| 24 | Housing | 20429842 | 1 | Black |
| 25 | Housing | 20429843 | 1 | Grey |
| 26 | Retainer | 20834570 | 13 | |
| 28 | Relay | 3171420 | 1 | |
| 29 | Connector | 21418803 | 1 | |
| 33 | Connector | 21664466 | 1 |
| Item | Part Name | Part No. |
| 1 | Wiring harness 22064169 | 22064169 |
| Details | |
| Engine model | TAD560VE, TAD561VE |
| Application | Electrical System, ECU SN-11270935 Electrical System, ECU SN11270936- |
| Specification | |
| Descriptions | Replaced by 22872265 SN11270936-, Replaced by 22872265 |
