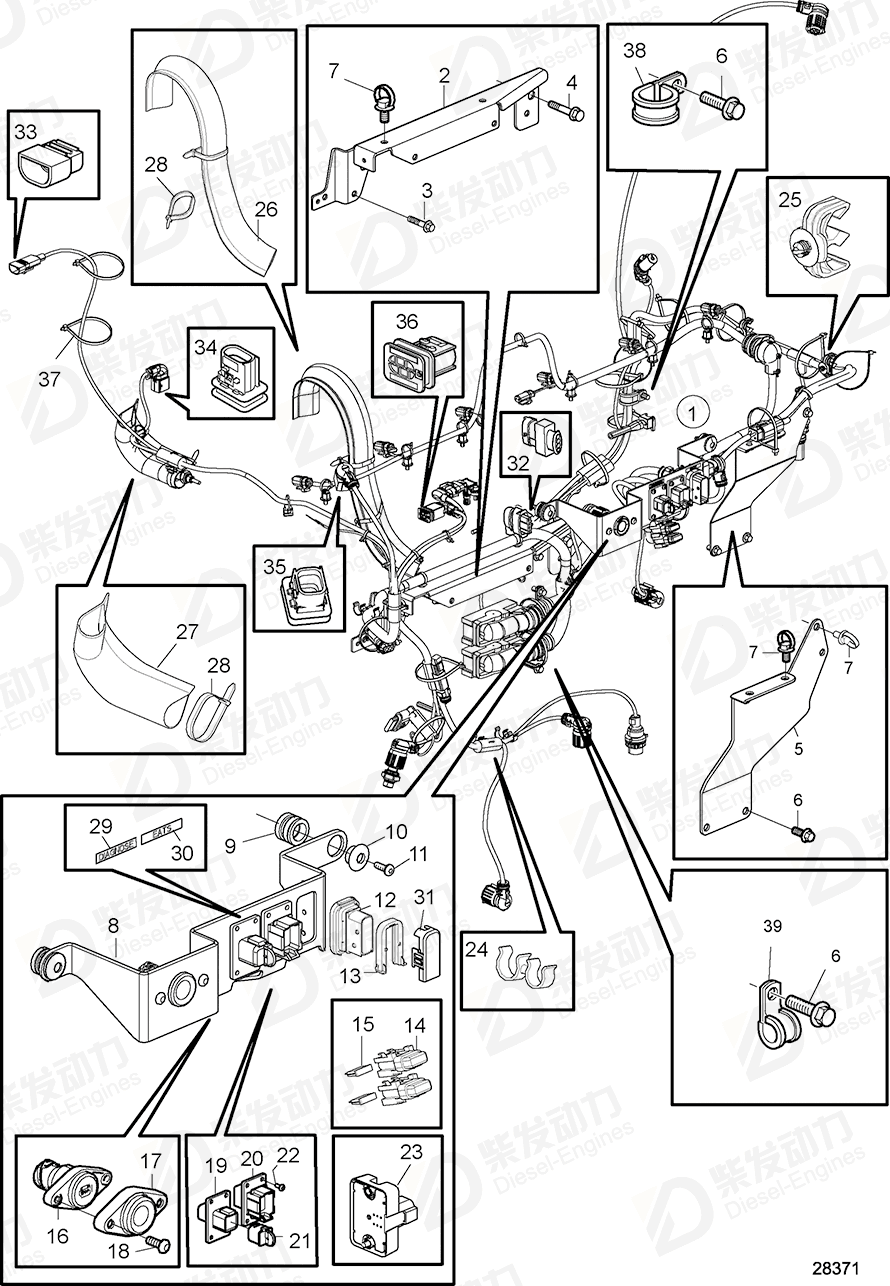

Wiring harness 22693072
| No. | Part Name | Part Number | Qty | Description |
| 1 | Wiring harness | 22493061 | 1 | Replaced by 22693072 |
| 1 | Wiring harness | 22693072 | 1 | |
| 2 | Bracket | 21927928 | 1 | |
| 3 | Flange screw | 984737 | 1 | |
| 4 | Flange screw | 984816 | 2 | |
| 5 | Bracket | 22566969 | 1 | |
| 6 | Flange screw | 984733 | 6 | |
| 7 | Cable tie | 980881 | 6 | |
| 8 | Bracket | 21866975 | 1 | Replaced by 22860712 |
| 8 | Bracket | 22860712 | 1 | |
| 9 | Rubber cushion | 1079687 | 3 | |
| 10 | Plug | 1079677 | 3 | |
| 11 | Six point socket scr | 969598 | 3 | |
| 12 | Housing | 994073 | 1 | |
| 13 | Adapter | 994291 | 1 | |
| 15 | Fuse | 969161 | 1 | 10A |
| 15 | Fuse | 969163 | 1 | 25A |
| 16 | Button | 21827824 | 1 | |
| 17 | Cover | 21738845 | 1 | |
| 18 | Six point socket scr | 986214 | 2 | |
| 19 | Housing | 992330 | 1 | |
| 20 | Tab housing | 874432 | 1 | |
| 21 | Sealing plug | 3840433 | 1 | |
| 22 | Six point socket scr | 972399 | 8 | |
| 23 | Control unit | 21918597 | 1 | |
| 24 | Retainer | 3121512 | 1 | |
| 25 | Retainer | 20440940 | 2 | |
| 26 | Tube | 3170224 | 1 | |
| 27 | Tube | 20711293 | 1 | |
| 28 | Cable tie | 22343166 | 1 | |
| 29 | Decal | 21243308 | 1 | |
| 31 | Cover | 995116 | 1 | |
| 32 | Housing | 60110756 | 1 | |
| 33 | Housing | 1307049 | 1 | 2-pole |
| 34 | Cover | 995107 | 1 | |
| 35 | Cover | 995108 | 1 | |
| 36 | Cover | 995107 | 1 | |
| 37 | Cable tie | 948211 | 5 | |
| 38 | Clamp | 942810 | 1 | |
| 39 | Attaching clamp | 1545432 | 2 | |
| 40 | Retainer | 3545508 | 5 |
| Item | Part Name | Part No. |
| 1 | Wiring harness 22693072 | 22693072 |
| Details | |
| Engine model | TAD1643VE-B TAD1650VE-B, TAD1651VE TAD1670VE, TAD1671VE, TAD1672VE |
| Application | Electric System Brackets and Connectors |
