Woodruff key 910115

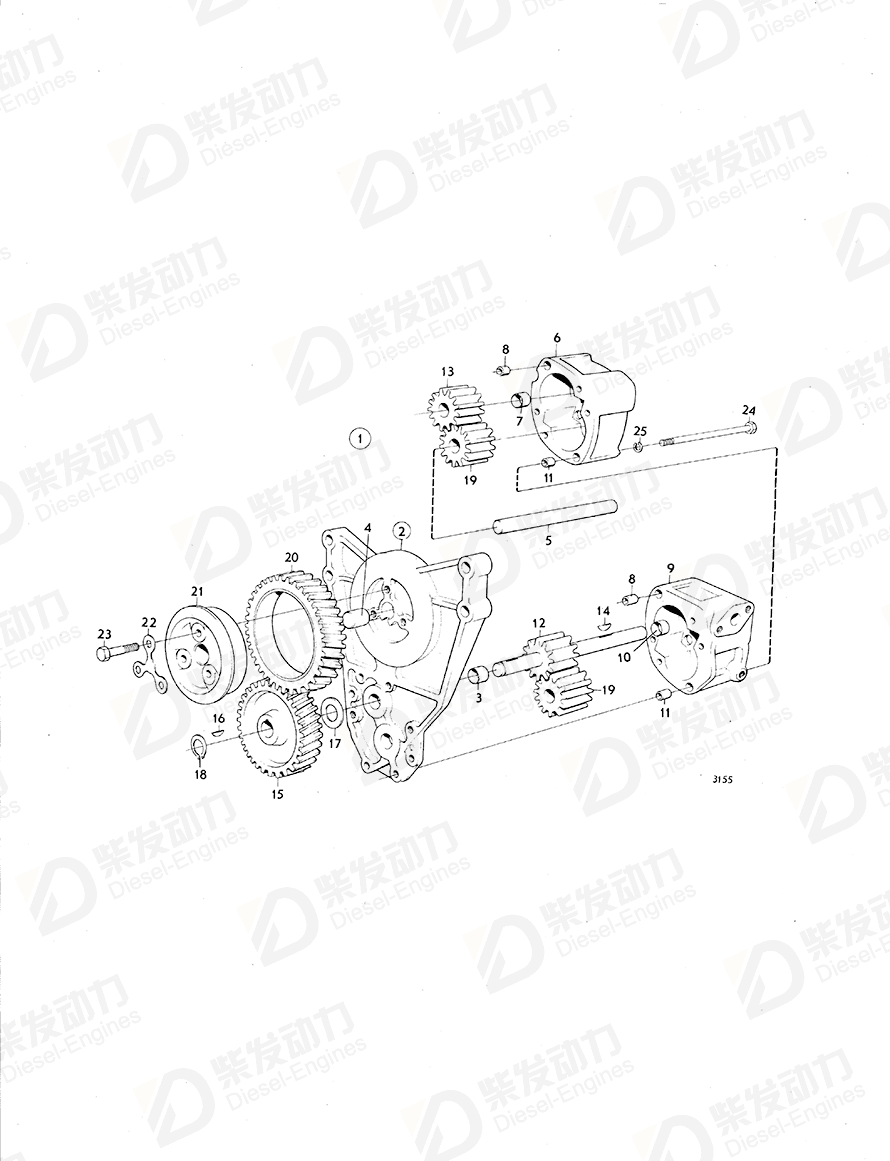

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 821120 | 1 | |
| 2 | Bracket | 821132 | 1 | |
| 3 | Bushing | 470234 | 1 | (940359) |
| 4 | Pin | 191171 | 1 | |
| 5 | Spindle | 821138 | 1 | |
| 7 | Bushing | 470234 | 1 | (940359) |
| 8 | Guide sleeve | 401146 | 2 | |
| 10 | Bearing bushing | 941683 | 1 | |
| 11 | Guide sleeve | 401146 | 2 | |
| 12 | Shaft | 824239 | 1 | |
| 13 | Gear | 424029 | 1 | |
| 14 | Woodruff key | 422329 | 1 | |
| 15 | Oil pump wheel | 422043 | 1 | |
| 16 | Woodruff key | 910115 | 1 | |
| 17 | Washer | 424133 | 1 | |
| 18 | Retaining ring | 914450 | 1 | |
| 19 | Gear | 469169 | 2 | |
| 20 | Gear | 422047 | 1 | |
| 21 | Bearing sleeve | 422313 | 1 | |
| 22 | Lock washer | 422315 | 1 | |
| 23 | Hexagon screw | 940186 | 3 | |
| 24 | Hexagon screw | 192546 | 2 | |
| 25 | Spring washer | 941907 | 2 |
| Item | Part Name | Part No. |
| 16 | Woodruff key 910115 | 910115 |
| Details | |
| Engine model | D100A D100B D100BHC D100BRC D120A D42A D70CHC D70CRC TAD120AHC TAD120BHC TAD120CHC TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD1010G, TWD1010G TD120A TD120AHC TD120AHC, TD120ARC, TAD120AHC, TD120BHC, TD120BRC, TAD120BHC, TAD120CHC, TD120AHC/CC, TD120ARC/CC TD120ARC TD120BHC TD120BRC TD120C TD1210G TD121G-87 TD40A TD45B TD60A TD60B TD60D TD60D-83 TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD70CHC TD70CRC TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TID120FG TID60D TID60DG TWD1210G TWD1211G |
| Application | Alternator Alternator: 233583 Alternator: 243392 Alternator: 870192 Centrifugal Governor: 242805 Centrifugal Governor: 242872 CRANKSHAFT AND RELATED PARTS Crankshaft and Related Parts: A Crankshaft and Related Parts: B Fuel Injection Pump: 242525 Fuel Injection Pump: 242643 Oil Pump Oil Pump, Components Oil Pump, Components: 1545119 Oil Pump, Components: 470343 Oil Pump, Components: 479319 Oil Pump: 11030633 Oil Pump: 1542210 Oil Pump: 1544125 Oil Pump: 470343 Oil Pump: 4772128 Oil Pump: 860718 Oil Pump: 860721 Repair Kit Repair Kit: A Repair Kit: B REPAIR KIT: C REPAIR KIT: D Repair Kits Repair Kits: A Repair Kits: B Repair Kits: C REPAIR KITS: D Repair Kits: TD100-87 Repair Kits: TID100-87 Timing Gear Casing and Gears: A Timing Gear Casing and Gears: B |
| Specification | |
| Descriptions | EARLIER PROD Early type Included in overhaul kit. |
