Yoke 1543497

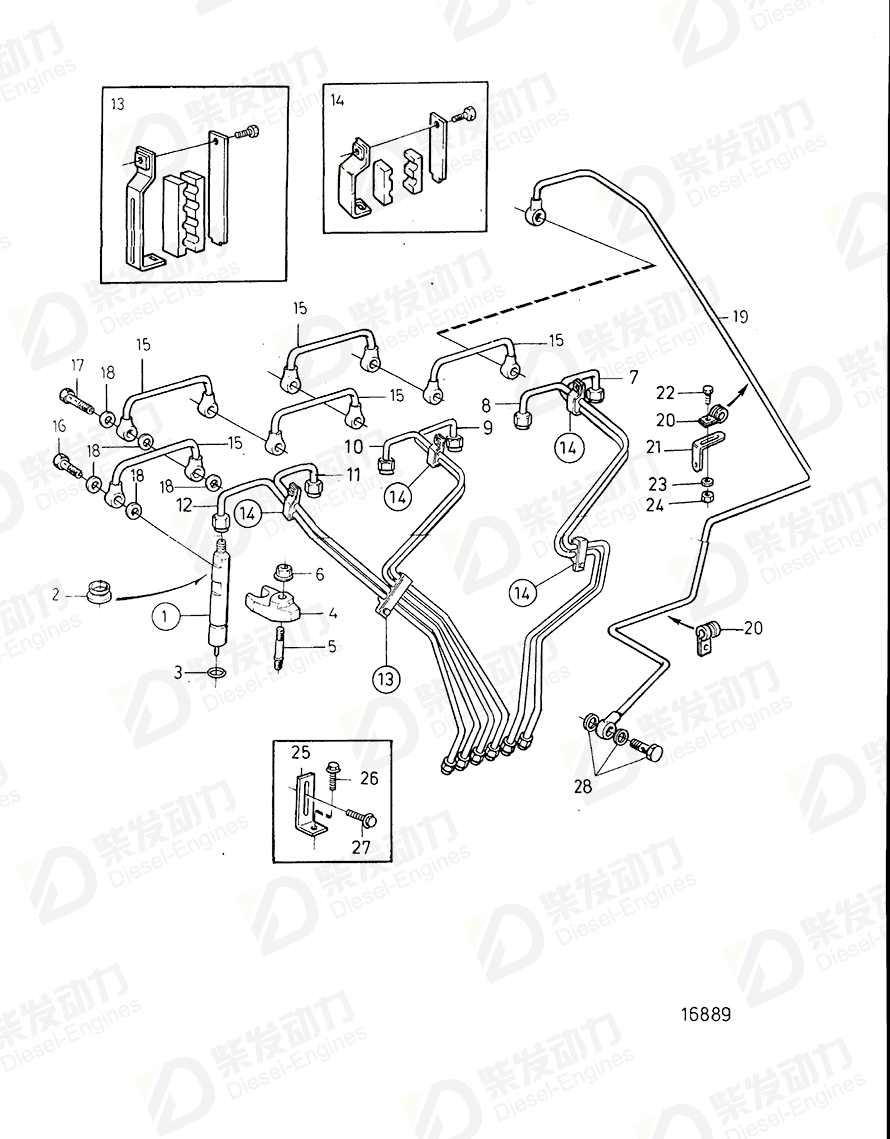

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injector | 865568 | 6 | |
| 1 | Injector | 3803283 | 6 | |
| 2 | Sealing ring, injector-valve cover | 1543751 | 6 | |
| 3 | O-ring | 1543574 | 6 | |
| 4 | Yoke | 1543497 | 6 | |
| 5 | Stud | 470560 | 6 | |
| 6 | Flange nut | 1543499 | 6 | |
| 7 | Delivery pipe, cyl 1 | 866870 | 1 | |
| 8 | Delivery pipe, cyl 2 | 866871 | 1 | |
| 9 | Delivery pipe, cyl 3 | 866872 | 1 | |
| 10 | Delivery pipe, cyl 4 | 866873 | 1 | |
| 11 | Delivery pipe, cyl 5 | 866874 | 1 | |
| 12 | Delivery pipe, cyl 6 | 866875 | 1 | |
| 13 | Clamp, 4-pipes | 470183 | 1 | |
| 14 | Clamp, 2-pipes | 470181 | 4 | |
| 15 | Leak-off line | 1543683 | 5 | |
| 16 | Hollow screw | 74033 | 2 | |
| 17 | Hollow screw | 74034 | 5 | D42A PP spec. 16053, 867638. |
| 18 | Gasket | 947620 | 19 | (233321) |
| 19 | Leak-off line | 865360 | 1 | (862566) |
| 20 | Clamp | 952623 | 1 | |
| 21 | Bracket | 965552 | 1 | |
| 22 | Cross recessed screw | 956094 | 1 | |
| 23 | Washer | 955892 | 1 | |
| 24 | Flange nut | 990939 | 1 | |
| 25 | Bracket | 965552 | 2 | |
| 26 | Flange screw | 944926 | 2 | |
| 27 | Flange screw | 984725 | 2 |
| Item | Part Name | Part No. |
| 4 | Yoke 1543497 | 1543497 |
| Details | |
| Engine model | TAD1630G, TAD1630GE TAD1630P TAD1630V TAD1631G, TAD1631GE TD164KAE TID162AG, TID162AGP, TID162AP, TID162APB TWD1620G TWD1630G TWD1630P TWD1630V |
| Application | Injectors, Pressure Pipes and Leak-off Line Injectors, Pressure Pipes and Leak-off Line: A Injectors, Pressure Pipes and Leak-off Line: B Injectors, Pressure Pipes and Leak-off Line: SN 2160018925- Injectors, Pressure Pipes and Leak-off Line: SN 2160023749- Injectors, Pressure Pipes and Leak-off Line: SN-2160018924 Injectors, Pressure Pipes and Leak-off Line: SN-2160023748 |
